Specifications
poultry farmturnkey project.
good after sale service.
Warranty period 1 year
CHINA BIGGEST COMPANY SPECIALIZED IN POULTRY FARM
In order to provide more choices,we made many solutions for high-end,mid-end and low-end market customers.
closed type environmental controlled
Solution 1: C section steel frame + fiberglass + color-coated wall&roof sheet + window
Solution 2: Square tube frame + fiberglass + galvanized wall&roof sheet + window
Solution 3 : C section steel frame + fiberglass + color-coated sheet + Coolling pad curtain
Solution 4: Square tube frame + fiberglass + galvanized sheet + Coolling pad curtain
Solution 5: C section steel frame + sandwich panel + Coolling pad curtain with shelter shed(dog house)
Solution 6: Square tube frame + sandwich panel + Coolling pad curtain with shelter shed(dog house)
opened type natural ventilation
above 6 solutions for opened type.
Double floor chicken farms house
above 12 solutions for double floor.

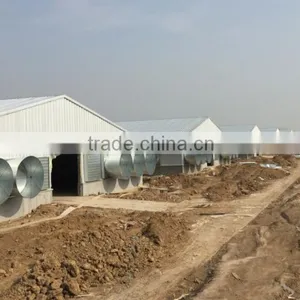

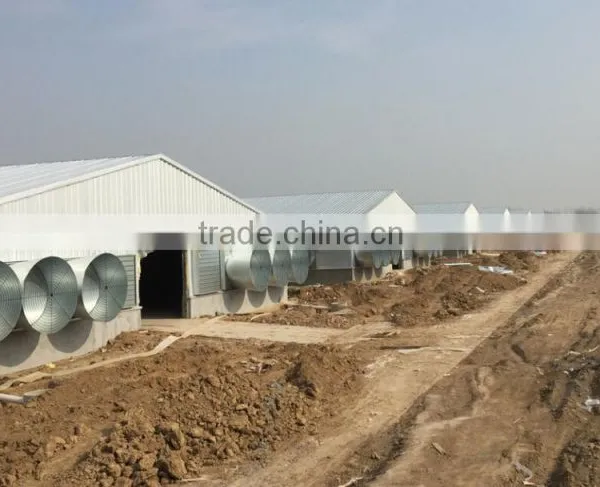

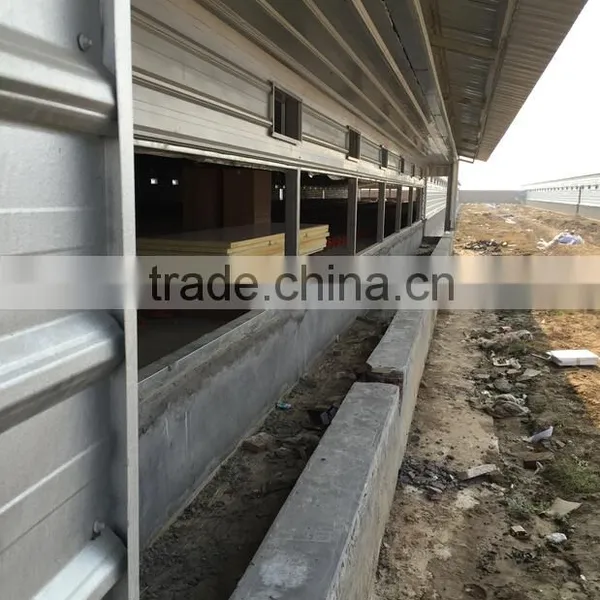

Our latest chicken farms project this year
Automatic environmental controlled poultry farm house expert

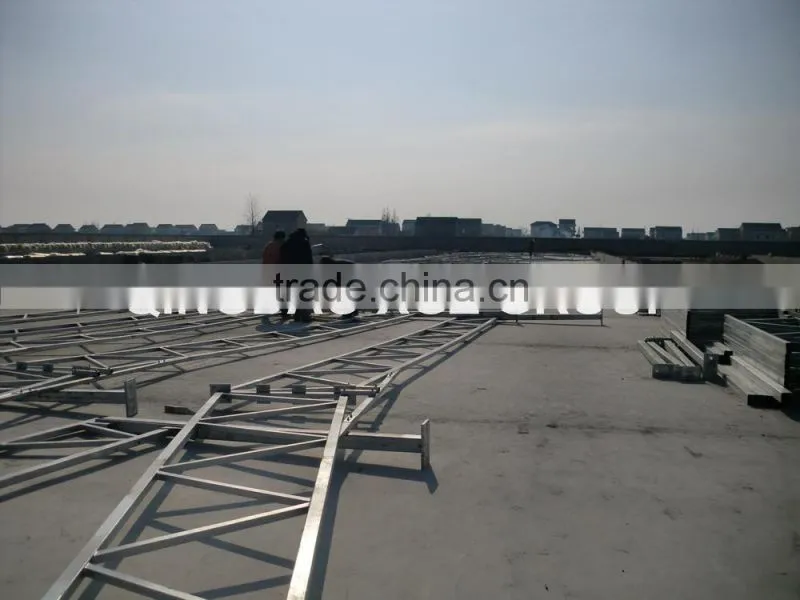

C section steel frame
the advantage of C section steel frame:
Easy construction, low price. Inner celling structure fits intake air from side wall thereby ensuring the breeding demands; intake air from the bottom of side wall which makes preheating spece to the poultry house before the cold air enters; avoiding the cold air enters the poultry house from windows directly in order to prevent air windows are frozen; avoiding the temperature of indoor changes quickly in order to make stress and save haeting cost.
Air inlet equably distribute two sides of walls of poultry house. The opening angle of window is suitable which ensures the wind speed of entrance, in order to make outside cold air steadily rise when it enter the house, and mix it with inner hot air. then the air will flow to chickens, transporting fresh oxygen gas, excluding ammonia gas carbon dioxide. The temperature of every part in the house is uniform, resolving the contradiction between air quality and temperature, increasing efficency of ventilation.
the structure of roof windows for the larger poultry house.
C section steel frame
Square tube frame

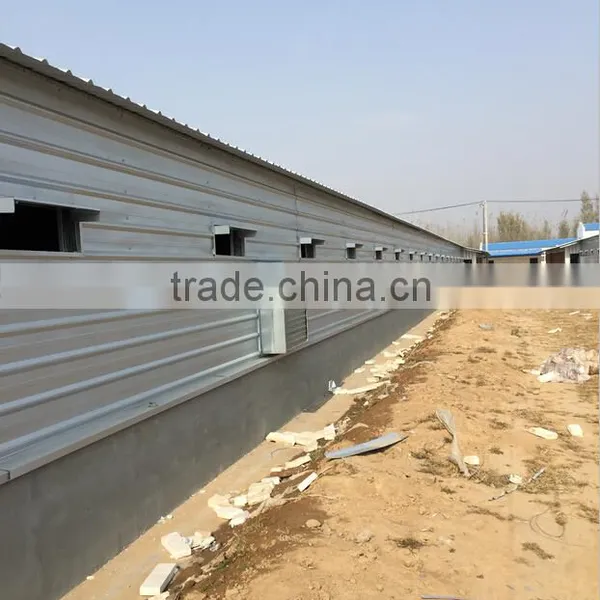

The intake air structure of square tube glass blanket wall windoes:
Adopting glass blanket to ensure heat preservation, at the same time, the thermal bridge can be cut off by wood brick, inner celling sructure fits intake air from side wall.
Air window shield can avoids the outside airflow to resolve the negative influences to the wind speed of air window entrance, leads to uneven distribution of indoor air.
H section steel frame
Square tube frame
The intake air structure of square tube glass blanket roof windows:
Adopting glass blanket to ensure heat preservation, at the same time, the thermal bridge can be cut off by wood brick,suiting to the wind from roof in cold districts, ensuring the indoor air enter the poultry house according to air window which can adequately preheat with celling space hot air, in order to prevent air windows are frozen.
Double floor poultry house
Double floor light steel structuere chicken house is a new type of building structure syetem, which is formed by the main steel framework lining up square tube, Csection steel components, roof and walls using a single sheet, glass wall blanket and other components such as windows , doors, etc. The type of chicken house are safe and high wind resistance, low cost, fast construction and easy in installation, long term service life (more than 25 years), environmental protection, stable structure, earthquake resistance, water proofing and energy saving.
Light steel structure chicken poultry house is a pre-engineered steel structure which is widely applied in modern breeding field. As a new type poultry house, double floor poultry house can expand area for aquatic breeding in the same area of land , increase quantities of chickens. the full-automatic poultry equipments contribute to decrease labor force in order to increase production efficiency.
3D simulation model of steel structure poultry house
3D simulation model of steel structure poultry house realizes the complete integrate between solid structure model and structural analysis, 3D steel structure detailing, 3D reinforced concrete design, thereby optimizing the structure poultry house, decreasing cost cost of production, ensuring veracity of poultry house design drawing and affording installed convenience to customers.
Stress testing
Steel shed products through the movement force analysis structural analysis software.
Figure 1- Figure 3 is equivalent stress distribution , it can be seen : the maximum stress is 248 MPa, corrugeted board in the top of the window , in addition steel stress is less than 96MPa.
Figure 4 is a deformation of the distribution , it can be seen : the maximum deformation of the corrugated board at the top of the window also , the deformation 18.7 mm, in addition deformation ofthe corrugated board are less than 6mm .
Figure 5 Figure 6 is a wind field can be seen: the maximum wind speed 136m/s , that is 490 Km/h , occurred in the top of the ridge. There is a small eddy under the eaves on both side.
Figure 7 Figure 8 is a pressure distribution , it can be seen : the windward vertical wall pressure 3000 N/m2, eaves pressure -6000 N/m2 , the roof of the pressure -12000 N/m2 ,shed surface pressure -3000N/m2 . Therefore , in order to avoid celling was lifted by hurricane , roof and eaves connections should have a correspondingly strengthen.
A type Cage for layer
The A type layer raising equipment has automatic feeding, egg collecting, and manure cleaning systems. It's suitable for large-scale poultry farm.
1. Stable structure and hot - dip galvanized technology can ensure service life of 15-20 years.
2. Automatic feeding, egg collecting and manure cleaning can save labor cost.
3. The feed quality provided to layers can be adjusted.
4.Egg collecting system can save labor cost and incrase working efficiency.
5.the manure cleaning system is easy to use and maintain.
6.the newly-designed feed through can help to save feed cost.
7.the egg conveying belt is abrasion resistant.
Cooperation partner --- from all over the world
every year , hundreds of people from diffrernt market come to our company to talk about business cooperation. Now, our friends have been in every corner of the world.
Assisted Installation
If you have to need our helps in installation , we can sent our company's engineers to your construction sites as installation guide. they can teach your people how to build your poultry farm control shed.
Important information --- for your detail quote
If you are interested in our company and poultry farm, some information need to from you firstly as follows :
1.plz let us to know:1.the size of your poultry house ,(the length and the width)
2.the quantity of chciken you will going to raise
3.the weight of chicken when you sale to the market (the rearing period, From - weeks)
4.type of chicken : laying hens, broiler chickens
5.type of breeding : in cages, on the ground
