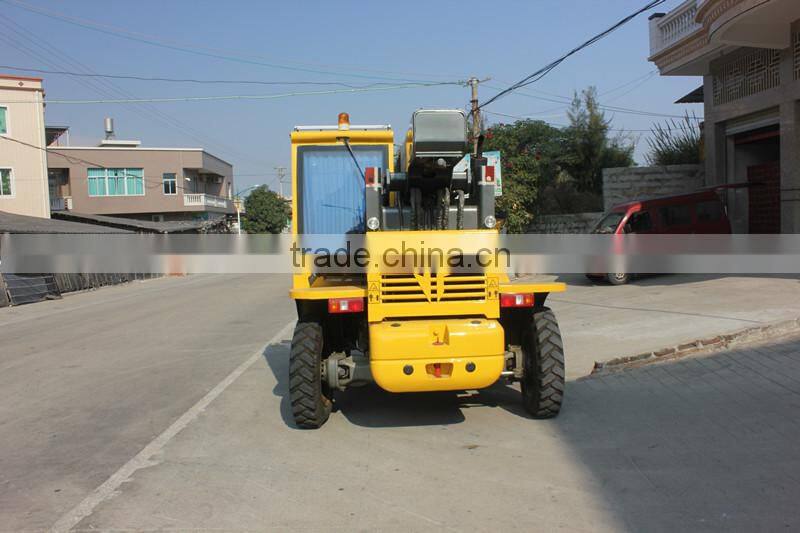

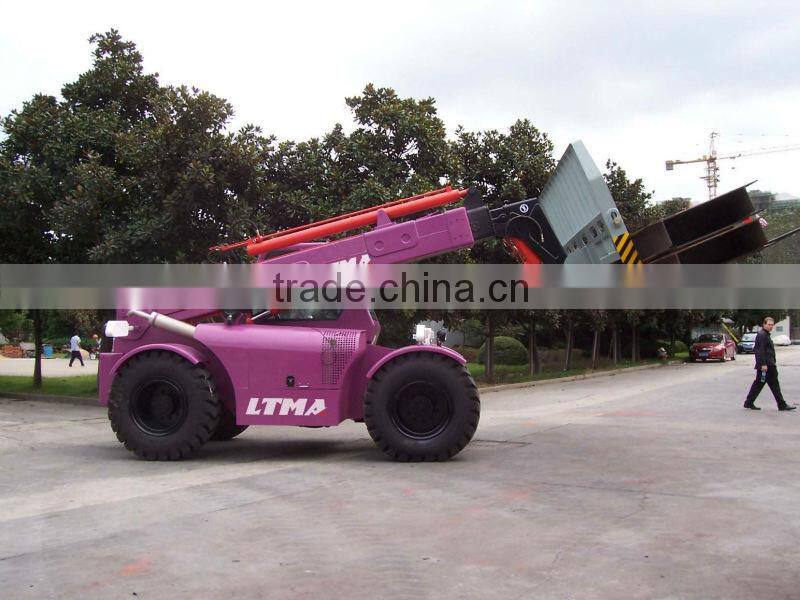

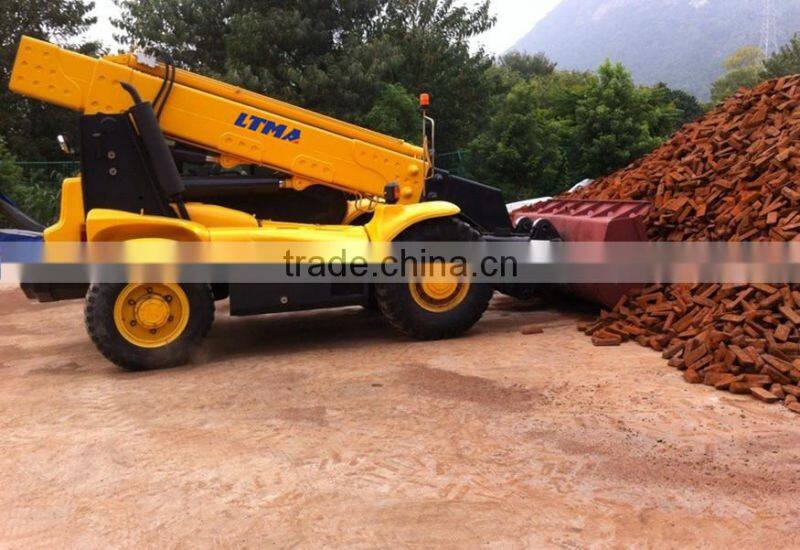

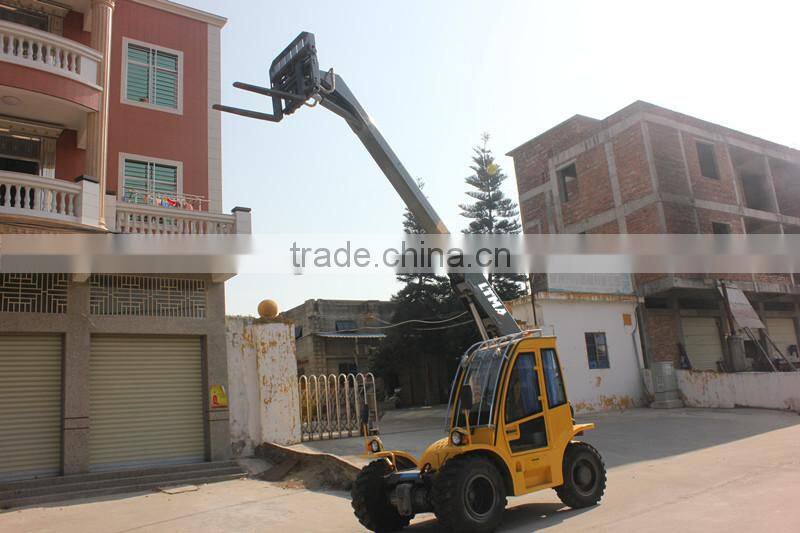

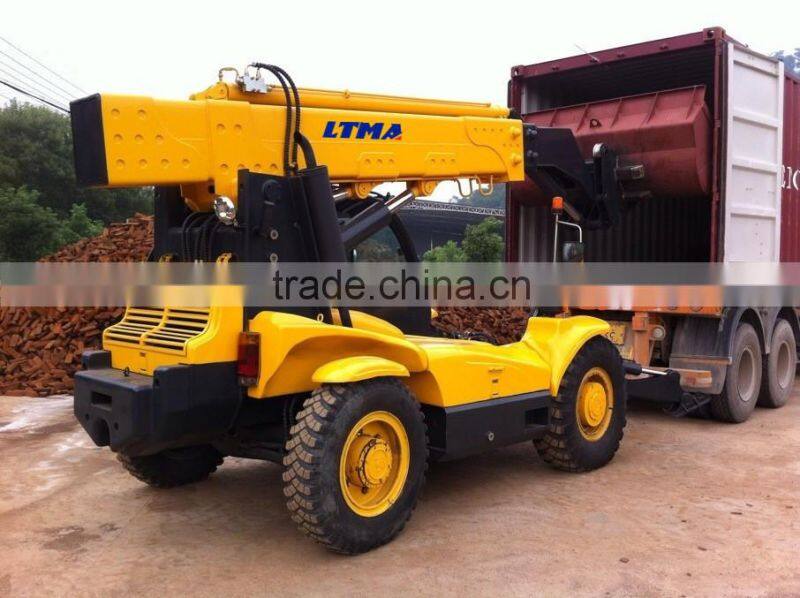

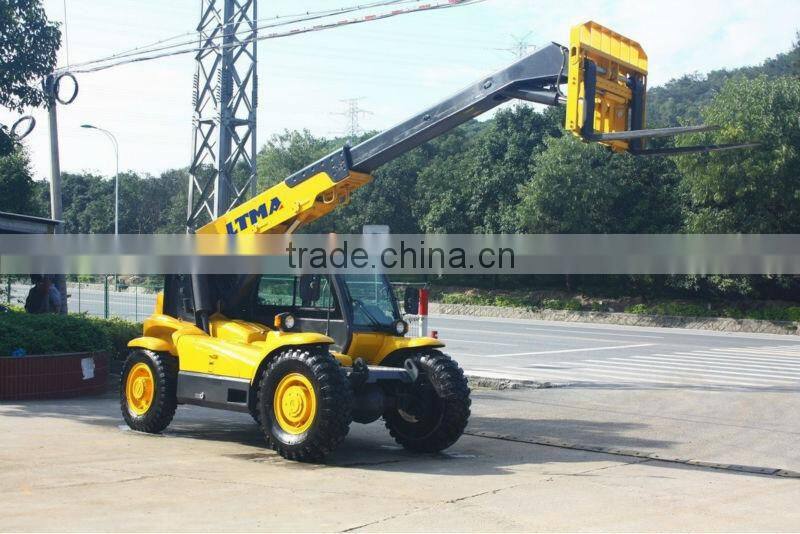

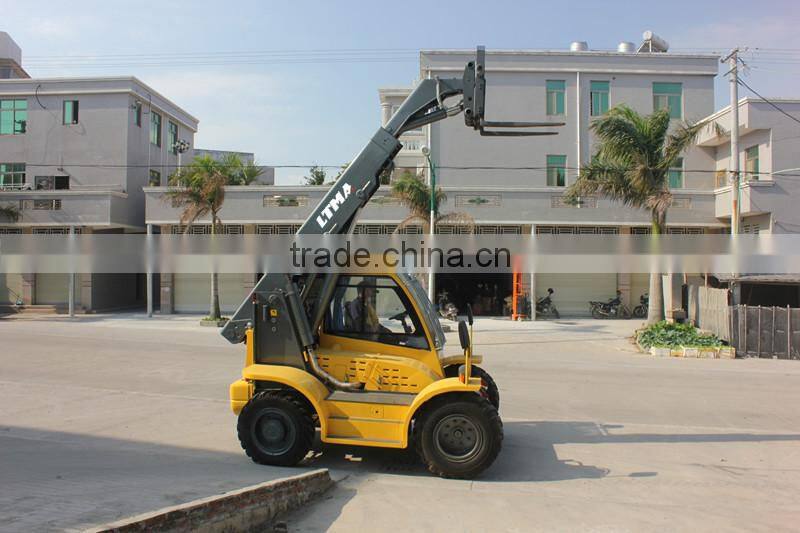

Help Center2016 LTMA 2.5t 5 Ton 6m 9.2m Teleshandler Telescopic Handler Forklift
Related Products
-
3.5 Ton Telescopic Boom Forklift Truck SaleUS$ 30,000 - 70,000MOQ: 1 Set -
Supply Forklift Telehandlers 17m HeightUS$ 30,000 - 70,000MOQ: 1 Set
-
XCMG Telescopic Boom Forklift Truck XT670-140US$ 30,000 - 70,000MOQ: 1 Set
-
XCMG Telescopic Forklift XT680-170US$ 30,000 - 70,000MOQ: 1 Set
-
2.5 Ton 3.5 Ton 5 Ton Telescopic Forklift 4 m 6 m 10 m Telescopic Forklift PriceUS$ 40,000 - 120,000MOQ: 1 Set
Telescopic handler forklift | telescopic handler | telescopic forklift for sale
LTMA25600 2.5 ton 4.0m handler telescopic forklift with Cummins engine
LTMA35620 3.5 ton 6.2m telescopic handler forklift with cummins engine
LTMA 50100 5M 10 TON telescopic forklift handler
Main Specification of LTMA telescopic handler forklift
Model |
LTMA25600H |
Lifting capacity (max) |
2500kg |
Lift capacity at maximum reach |
1000kg |
Lifting height (max) |
4m-10m |
Forward reach (max) |
3260mm |
Overall weight |
7100kg |
Transmission |
Hydro-mechanical transmission |
Drive type |
Four wheel drive or two wheel drive |
Boom segments |
2 segments |
Size | |
Overall length |
5560mm |
Overall width |
2300mm |
Overall height |
2565mm |
Wheelbase |
2200mm |
Tread |
1900mm |
Ground clearance (min) |
310mm |
Performance | |
Steering modes |
Rear wheel steering |
Travel speed (max) |
30km/h |
Range of lateral displacement devices |
left 100mm, right 100mm |
Power | |
Engine |
Cummins Turbo diesel 4BT3.9-C80 |
Rated power |
80horse power/60KW |
Fuel tank capacity |
115L |
Hydraulic tank capacity |
102L |
Features and Advantages of 2016 LTMA 2.5t 5 ton 6m 9.2m teleshandler telescopic handler forklift :
telescopic handler forklift is a kind of Multi-functional engineering machinery .It can be used for lift and carry, withgood stability and efficiency. It has compact frame, flexible operation , sensitive lift, automatic adjustment ,high carrying capacity.
1, adopt the Cummins engine which is powerful and with low maintenance. Reach Europe III(EPA Tier3) exhaustion standard, big torque force.
2, Equipped with power transmission, compact structure, high rigidity.
3, With articulated frame, small turning radius.
4, wheel drive, steering by front wheel, and so on.

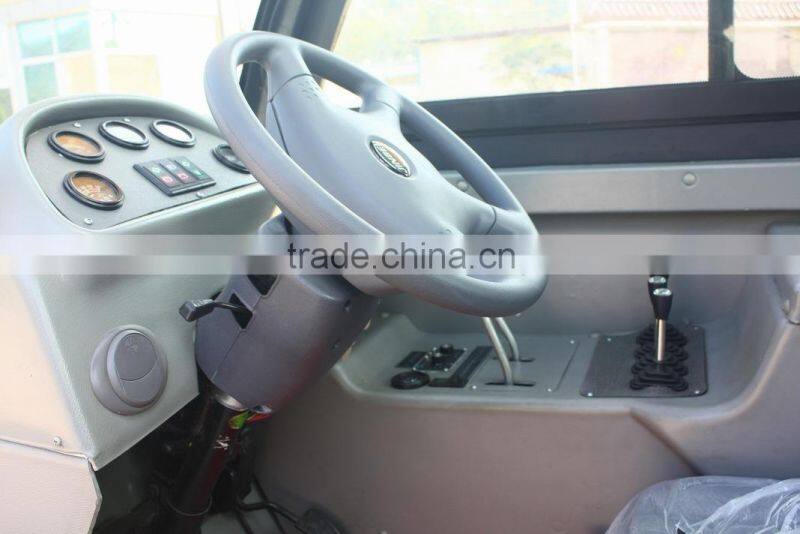

5, The driver′s cabin is furnished with the system of the air conditioner, It is safe and comfortable, and the visual field is broad. It adopts shock attenuation, which improved the comportableness of the operating
6, Fully sealed wet multi-disc brakes in the wheel heads are protected from environmental influences.

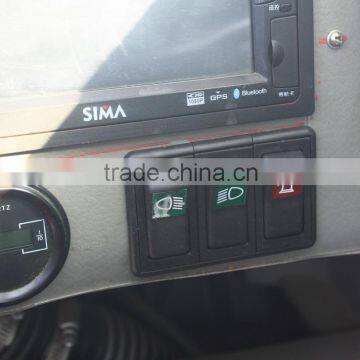

7, Multi-function instrument can be chosed..It is a kind of machinery which is suitable for lifting and carrying in narrow ground.
2016 LTMA 2.5t 5 ton 6m 9.2m teleshandler telescopic handler forklift
