Help Center3.5t 5 Ton 14m Telescopic Handler Forklift XCMG XT 670-14
Related Products
-
5 Ton 6m 10m Telescopic Handler Forklift 5t LTMA50100HUS$ 30,000 - 70,000MOQ: 1 Unit -
LTMA High Quality Telescopic Handler Forklift Loader Quality ChoiceUS$ 20,000 - 50,000MOQ: 1 Unit
-
3.5 Ton 4m 6m 9m Telescopic Handler ForkliftNegotiableMOQ: 1 Unit
-
3.5 Ton 17m XCMG Telescopic Handler Forklift XT680-170US$ 30,000 - 70,000MOQ: 1 Unit
-
3.5 Ton 14m XCMG Telescopic Handler Forklift XT670-140US$ 30,000 - 70,000MOQ: 1 Unit
Specifications
3.5 tons capacity6000mm max lifting height
Deutz engine/Perkins engine
customizing is acceptable

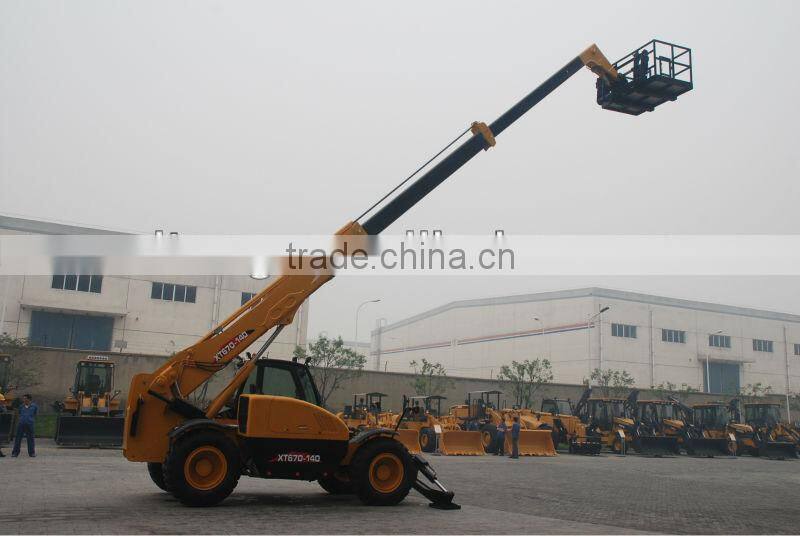

3.5t 5 ton 14m Telescopic Handler Forklift XCMG XT 670-14
Main Specifications
LTMA35014H Telescopic handlers
Item Parameter Unit
Weight 10500 kg
DEUTZ engine power 70 kw
Perkins 74.5 kw
Maximum payload of 3500 kg
The maximum height limit load 3100 kg
Elongation under maximum payload of 635 kg
Lifting height 13700 mm
Elongation maximum height 1050 mm
Maximum Overhang 9460 mm forward
Wheelbase 3250 mm
Wheelbase 1970 mm
Minimum ground clearance 370 mm
Overall Length (back to the roots forks) 6290 mm
Host maximum length (in front of the front tire to the rear) 5078 mm
Host maximum width (including outrigger) 2500 mm
Host maximum height (including lamp) 2600 mm
Fork length 1200 mm
Length 1191 mm rear overhang
Adjust angle of the left lateral frame 10.
Right 10.
Departure angle 36.
Attachment frame anteversion 90.
After an angle with frame 18.
Telescopic maximum depression (outrigger away) -4.
Maximum elevation (leg brace) 73.
Cab interior width 945 mm
Maximum traction (no load) 48 kN
Minimum turning radius (outside of tires) 4238 mm
Maximum gradeability 30.
Type the foot brake / brake hydraulic wet / 4.5 MPa
Hand Brake type Wet
Travel speed Forward Ⅰ gear 9.52 km / h
Forward Ⅱ gear 23 km / h
Back Ⅰ gear 9.52 km / h
Back Ⅱ gear 23 km / h
Forklift Truck is a kind of Multi-functional engineering machinery .It can be used for lift and carry, withgood stability and efficiency. It has compact frame, flexible operation , sensitive lift, automatic adjustment ,high carrying capacity.
1, adopt the Cummins engine which is powerful and with low maintenance. Reach Europe III(EPA Tier3) exhaustion standard, big torque force.
2, Equipped with power transmission, compact structure, high rigidity.
3, With articulated frame, small turning radius.
4, wheel drive, steering by front wheel, and so on.
5, The driver′s cabin is furnished with the system of the air conditioner, It is safe and comfortable, and the visual field is broad. It adopts shock attenuation, which improved the comportableness of the operating
6, Fully sealed wet multi-disc brakes in the wheel heads are protected from environmental influences.
7, Multi-function instrument can be chosed..It is a kind of machinery which is suitable for lifting and carrying in narrow ground.
