QXY Series Steel Plate Pretreatment Line Pedrail Shot Blasting Machinery
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
- Supports multi-hook customization of Pumingwei hook-type shot blasting machine surface metal rust removal equipment
- tumble rubber belt shot blasting machine for foundry plant crawler shot blaster
- smaller casting parts surface treatment crawler shot blasting machine
- Q326 Q324 Q3210 tumble belt shot blasting machine crawler belt shot blasting machine
- Tumble belt shot blasting machine for nuts and bolts surface treatment
- Tumbler belt shot blasting abrator machine wheel crawler shot blaster
Product Details
Condition: | New | Place of Origin: | China | Brand Name: | QINGZHU |
Model Number: | QXY Steel Plate Pre-treatment Line | Feature: | Critical Cleaning / Residue Free, Non-Ionic, Non-Toxic, Other, Critical Cleaning / Residue Free, Non-Ionic,Non-Toxic,Rust / Corrosion | Fuel: | Electric |
Certification: | CE, Other, CE, Other, CE, Other, CE,ISO | Cleaning Process: | Other, Acid Cleaning / Pickling, QXY Steel Plate Pre-treatment Line | Cleaning Type: | Other, Clean-In-Place (CIP), Clean-In-Place (CIP) |
Industry Used: | Other, Electronic Industry, Manufacturing & Processing | Material: | Other, Metal / Coil, Steel Plate | Power(W): | QXY Steel Plate Pre-treatment Line, Customized |
Dimension(L*W*H): | QXY Steel Plate Pre-treatment Line, Customized | After-sales Service Provided: | Engineers available to service machinery overseas | Use: | Burnishing, Deflashing, Other, Burnishing,Deflashing,Descaling |
Product Description

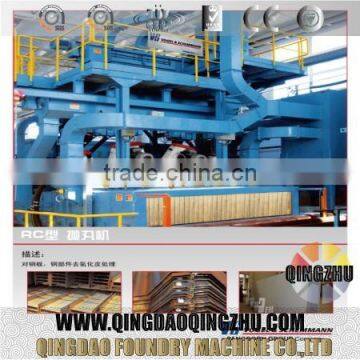

Steel Plate Pretreatment Line
The series is H profiled steel shot blasting machine. It is used for eliminating stress and removing surface rust of big model l-shaped steel, H profiled steel, higher size of steel structure. The series shot blasting machine is used for construction industry, bridge industry. The series steel plate, model material pretreatment line is made up of warm-up,shot blasting, spray-paint, drying. According to customers requirements, we could shot blasting for stand-alone. It also could continue work through online to realize warm-up, shot blasting, spray-paint, drying. It is used for removing rust, painting(pretreatment) of steel plate, profiled steel. It is ideal equipment for shipping, automobile, locomotive, machine, bridge, oil artesian well platform, port and dock facilities, container, boiler industry. The production line is controlled by PLC machine. It adopts shift storage and photo electricity check, automatic measurement of the thickness and width of the plate, automatic adjustment the width of shot blasting belt and the height of cleaning device. The whole line rolling bearing four frequency control. It could be subsection or the whole line fine tuning. It can assure that shot blasting, painting drying quality of pretreatment steel material.
1. Steel descaled by this system can lengthen die life, improve burning, welding and machining operations, and provide the proper surface finish for the application of modern coatings.
2. It is mainly formed by pre-heating part, descaling part, spraying paint part and drying part.

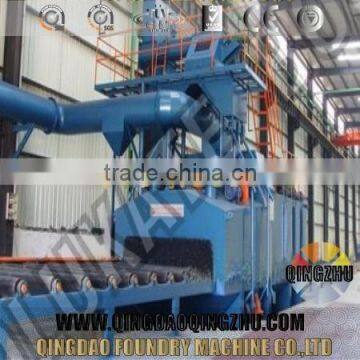

3. The descaling part formed by the cantilever centrifugal type impeller heads, the full shutter type sand separator.

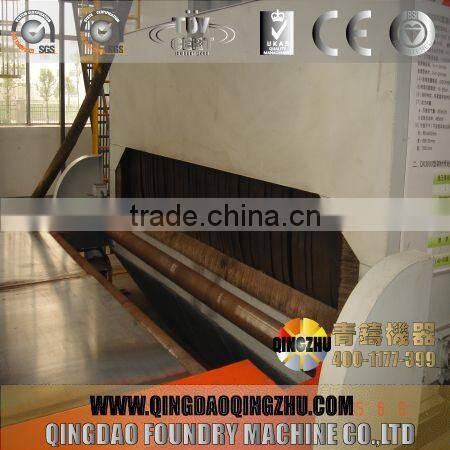

4. The pills cleaning adopted high strength nylon rolls and high pressure blower second level cleaning device.
5. The pre-heating and drying part adopted various heating modes, such as electricity, fuel gas, fuel oil and so on.
6. The spraying paint part adopted the high pressure airless spraying.
7. The full line is centralized controlled by Industrial Personal Computer (IPC).
8. As the shape of steel plate is almost regular before processed, it is helpful for mechanical rust removal and automation of spraying paint, improving the efficiency of dust removing, reducing the intensity of labor and environment pollution.
9. Mainly used in the field of shipbuilding, locomotive, antiseptic project and bridge construction industries.
Technical Parameters
Composition:

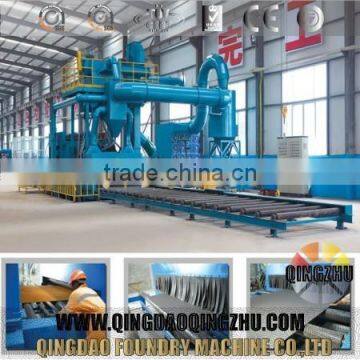

It mainly consists of workpiece conveying system, photoelectric detection device, shot blasting system, auto paint spraying and mist treatment system, drying system, and electrical control system.
Blasting wheels

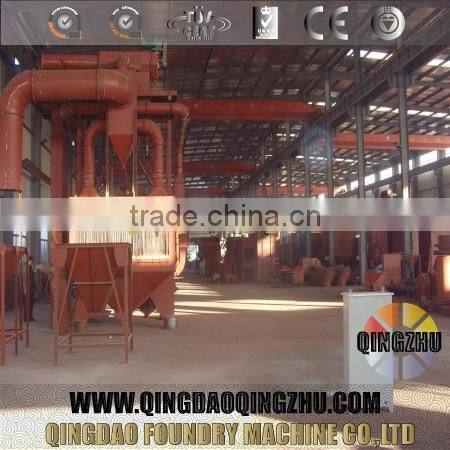

To ensure product performance and reliability, we purchase components from dependable overseas suppliers. For instance, the paint pump, spray gun and nozzle all use imported products. In addition, Q360 blast wheel of our product is made using Japanese technology. Our steel pretreatment line also utilizes an efficient dust collector to keep dust away from the operator for increased visibility.
Working Principle

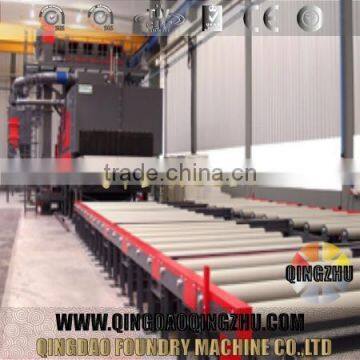

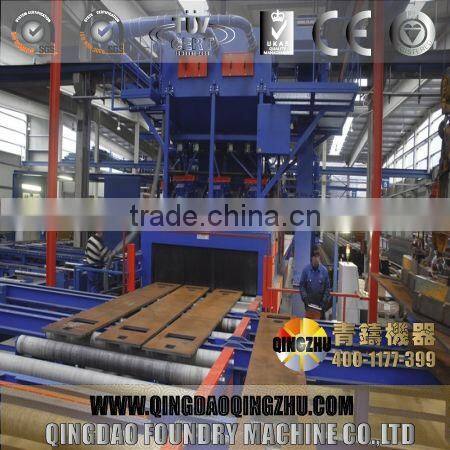

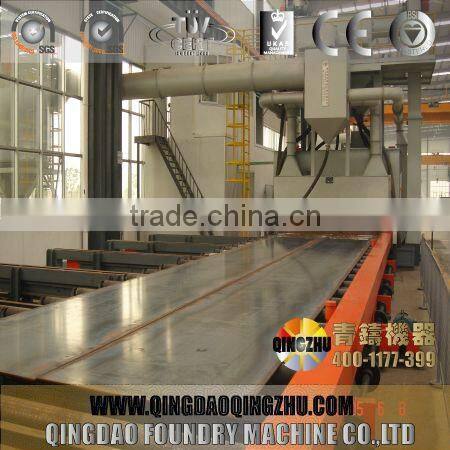

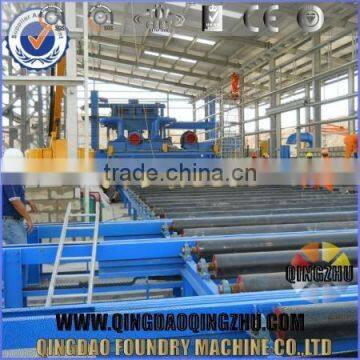

The workpieces are loaded onto the input roller conveyor which conveys them into the blast chamber. During blasting, the blast wheel directs shots at a high velocity toward the surface of workpiece for removal of oxidized layer, rust or other contaminants. After this, shot cleaning equipment including roll brush and high pressure blowpipe is used to blow the shot blasting medium and dust off the workpiece surface. Then workpieces directly go to the spray booth, where maintenance primer is sprayed onto their surface via a spray gun. To dry surface coating, workpieces go through the drying room. After drying, the output roller conveyor is used to transport these workpieces, completing the whole process.

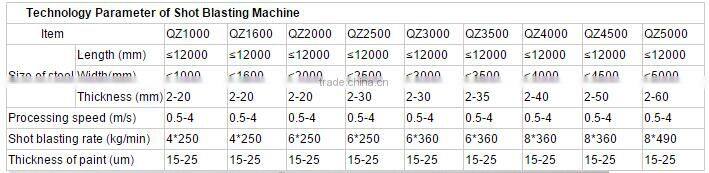

Technical parameter
Company Information

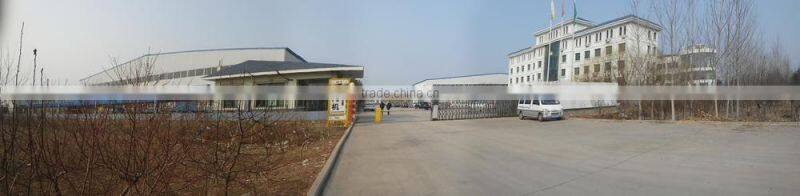

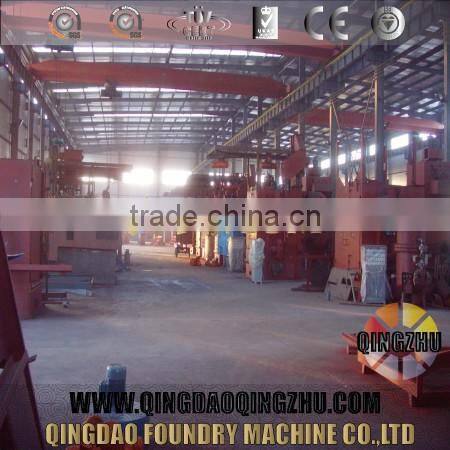

Qingdao Foundry machine Co., Ltd, established in the year of 1994, lies in Qingdao--the
production & export base for foundry machinery.
At the moment, the company has 180 employees, including 15 professional technicians.
The company mainly produces seven series of products in foundry industry as cleaning equipment
and sand-treatment molding equipment in sets. The main products include Q69 series pass-through
type shot-blast cleaning machine, QGseries internal and external walls of steel tube shot-blast
cleaning machine, hook & sling chain type shot blast cleaning room, turning & trolley shot blast
cleaning room, sand-blasting machine, environmental production dust collector, etc. It's also
possible to design and manufacture all kinds of non-standard special foundry machines according
to customer requirements.
