Big Shot Machine
- 10 Set / Sets per Month
- Qingdao
- T/T
- Supply Wax Injection Machine for the investment casting line
- supply semi-automatic Dewaxing Autoclave for investment casting industriy
- New energy copper and aluminum busbar bending machine Copper busbar stamping CNC machine
- WATER MOLD TEMPERATURE MACHINE
- OIL TYPE MOLD TEMPERATURE MACHINE
- WATER-COOLED INDUSTRIAL CHILLER
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | BOLUKATE |
Model Number: | Q698 | Voltage: | 220-380V | Power(W): | 90KW |
Dimension(L*W*H): | 25017*4500*9015mm | Weight: | 15T | Certification: | ISO9001-2000 |
Warranty: | 2 YEARS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Big Shot MachineSandblast Machine
Direct Manufacturer
Professional Design
ISO9001-2008
Q69 Series Steel Structure Automatic Shot Blaster
Application of Q69 Series Steel Structure Automatic Shot Blaster :
Roller Conveyor Type Shot Blasting Machine is available for a wide variety of steel products, such as steel plates, sheets, strips, wires, bars, billets, slabs, rolled and fabricated structural shapes, and miscellaneous weldments, pipe, tubing and gas cylinders.
Main components of Q69 Series Steel Structure Automatic Shot Blaster :
1. Inlet roller
2. Shot blasting chamber
3. Sweeping chamber
4. Abrasive/ shot balls circulation system
5. Shot cycle purifying system
6. Shot dust collecting system
7.Fume filter and harmful gas purifying device
8.Outlet roller
9.Electric control system
Summary of Steel Structure Automatic Shot Blaster :
1.sand blasting machine with roller conveyor
2.automatic shot blasting machine
3.suitable for steel plate,beam,fabrication more
Features of Q69 Series Steel Structure Automatic Shot Blaster :
1. Roller Conveyor Type Shot Blasting Machine is designed for the large, middle and small size of the steel products.
2.Using the highest efficiency blast wheels and adopt Multi-dimensional blasting, high-level and all- directional clean.
3. Cleaning away the rusting layer, oxidation layer and other dirty things from steel surface
4.To make surface achieve a bright and clean surface and improve the adhesion force of painting to surface and improve the anti-fatigue force and anti-rust capacity.

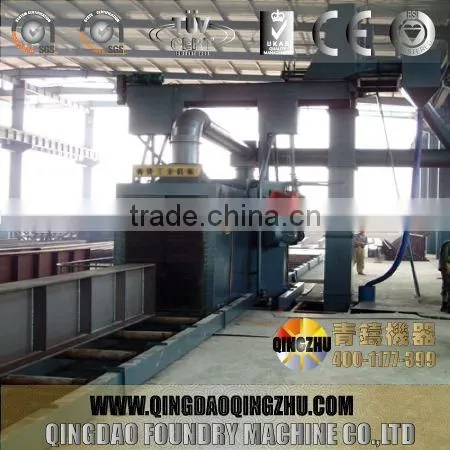

Steel Structure Automatic Shot Blaster pictures:
Blasting Machine----Our international design team :
Technical parameter of Steel Structure Automatic Shot Blaster | |||||||||
No. | Model | Q698 | Q6912 | Q6915 | Q6920 | Q6925 | Q6930 | Q6940 | |
1 | Width of workpiece | mm | 800 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
2 | Size of inlet opening | mm | 800* | 1200* | 1500* | 2000* | 2500*800 | 3000*800 | 4000*400 |
3 | Length of workpiece | mm | 1200- | 1200- | 1200- | 1200- | 3000-12000 | 2400-12000 | 4500-18000 |
4 | Roller speed | m/min | 0.5-4 | 0.5-4 | 0.5-5 | 0.5-4 | 0.5-4.5 | 0.5-4 | 2-8 |
5 | Thickness of plate | mm | 3-60 | 3-60 | 1.5-60 | 3-60 | 3-60 | 3-110 | 4.5-110 |
6 | Abrasive flow rate | kg/min | 8*120 | 4*250 | 4*250 | 6*250 | 6*250 | 6*360 | 8*360 |
7 | Abrasive initial fill | kg | 4000 | 4000 | 4000 | 4500 | 4500 | 8000 | 11000 |
8 | Adjusting height of rolling brush | mm | 400 | 200 | 350 | 450 | 600 | 850 | 900 |
9 | Ventilation capacity | m3/h | 22000 | 17560 | 19000 | 19550 | 27758 | 28050 | 38000 |
10 | Total power of shot blast machine | kw | 90 | 78.3 | 113.6 | 156.6 | 224.55 | 204.8 | 293.6 |
THE PACKING and Shipping
Why choose us ?
1. Our company has passed "CE", "ISO9001" and bureau veritas certification .
2. 50 years experience with 20 professional engineers in our Qingdao Foundry Machine Co.,Ltd.
3. So many kinds of foundry machinery ---100 kinds of shot / sand blasting machines and 80 kinds of casting machines.
4. Considerate after-sale service , Technial Assistance and provide installing ,debugging and training on site
5. The company has its own foreign trade marketing team Industrial Corporation, first - class service standards for all clients.
We specialize in the design and manufacture of:
Shot Blasting Machine
Sand Blasting Machine and manual sandblasting pot
Foundry sand mixer
Core shooter
Jolt Squeeze Molding Machine
Sand preparation line for foundry (Clay and resin sand )
Automatic Moulding Machine(line)
The key part of shot blasting machine is blast wheel / wheel turbine :
Testing machine for shot blasting machine
With instruments, metalworking, grinder, rolling wire four workshops, complete production facilities.
There are many kinds of Shot Blasting Machines as follows:
Q69 Series Roller Conveyor Type Shot Blasting Machine
KSB Series Hook Type Shot Blasting Machine
Q37 Series Shot Blasting Machine For Engineering Machinery
Q311 Series Drum Type Shot Blasting Machine
Q26/Q36 Series Flatcar Shot (Spray) Type Cleaning Machine
Q76 Series Trolley Type Shot Blasting Machine
Q38 Continuous Pendant Chain Type Shot Blasting Machine
Q48 Step-By-Step Pendant Chain Type Shot Blasting Machine
Q58 Changeable Chain Type Shot Blasting Machine
ZJ0 Series Rotary Table Shot Blasting Machine
ZJ02 Series Spring Shot Blasting Machine
ZJ18 Series Wheel Roller Shot Blasting Machine
QGW Series Steel Tube Outer Wall Shot Blasting Machine
QGN Series Pipe Inwall Shot Blasting Machine
GN Series Belt Type Shot Blasting Machine
Q32 Series Apron Type Shot Blasting Machine
Q35 Series Turntable Type Shot Blasting Machine
QWD Series Wire Mesh Belt Type Shot Blasting Machine
QSHBSeries Rotary Hook Type Shot Blasting Machine
QX Series Wire Rod Shot Blasting Machine
QM Series Special Shot Blasting Machine For Anchor Chain
RE Series Shot Peening Machine For Strengthening For Mill Roll
CND Series Inclined Drum Shot Blasting Machine
SHB Series Turntable Shot Blasting Machine
Ql Series Squirrel-Cage Type Shot Blasting Machine
ZJ076 Series Leaf Spring Shot Peening Machine For Strengthening
SCC Series Spring Shot Peening Machine For Strengthening
SNC Series Bar Shot Blasting Machine
Our Services
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & Molding Machine & Core Shooting Machine for more than 40 years, competitive with good quality.
7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing
.
