CE Certification Pass Through Type Sandblast Machine / Steel Plate Sandblasting Machine
Product Description:
Automatic conveyor sand blasting machine are mainly used for treating long and/or flat components.
The components continuously pass through the "pre"chamber, the blasting chamber, and the cleaning chamber on a special roller conveyor.
Highly efficient turbines fixed on the machine housing make the Steel Plate Shot Blasting Machine possible to treat the components on all sides.
Automatic conveyor sand blasting machine are used to remove scale, rust and paint from long and/or flat components.
Barameter:
Name | Q698 | Q6910 | Q6912 | Q6915 | Q6920 | Q6925 | Q6930 | Q6935 | ||
cleaning dimention | plate | length(mm) | 2000-9000 | 2000-9000 | 3000-9000 | 3000-9000 | 4000-12000 | 4000-12000 | 6000-12000 | 6000-12000 |
width(mm) | 800 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 3500 | ||
tkickness(mm) | 2-35 | 2-35 | 2-40 | 2-45 | 3-50 | 4-60 | 5-60 | 6-60 | ||
section steel | width(mm) | 800 | 800 | 1000 | 1400 | 1800 | 2000 | 2500 | 3000 | |
height(mm) | ≤1600 | ≤1600 | ≤1800 | ≤2000 | ≤2000 | ≤2500 | ≤2500 | ≤3000 | ||
speed | m/min | 0.5-3 | 0.5-3 | 0.5-2 | 0.5-2.5 | 0.5-2.5 | 0.5-2 | 0.5-2.5 | 0.5-3 | |
blasting quantity | kg/min | 4*250 | 4*250 | 4*250 | 4*250 | 4*250 | 6*250 | 6*250 | 6*250 | |
section steel abrsive caacity | kg/min | 8*250 | 8*250 | 10*250 | 10*250 | 10*250 | 12*250 | 12*250 | 16*250 | |
ventilation capacity | m3/h | 8000-14500 | 9000-14500 | 12000-18000 | 13000-24000 | 13000-24000 | 16000-28000 | 16000-28000 | 18000-28000 | |

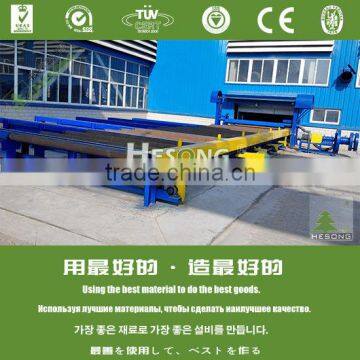

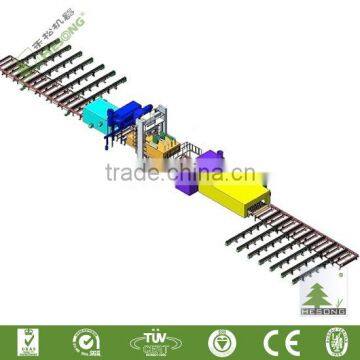

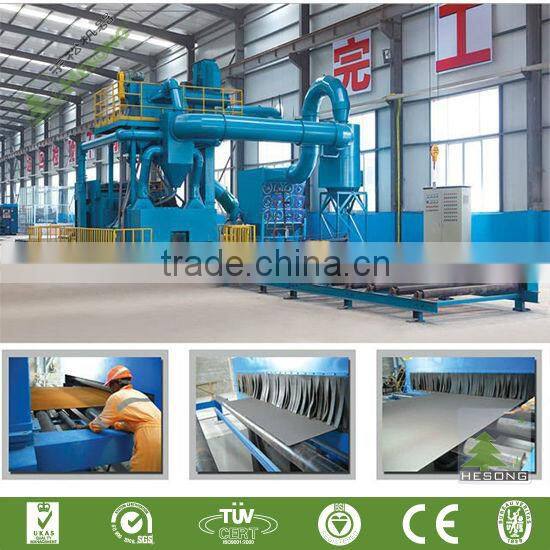

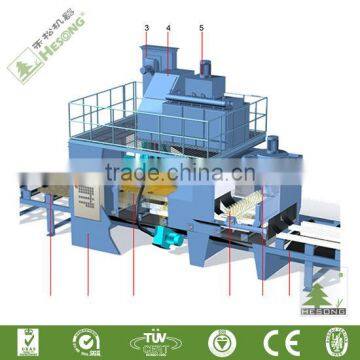

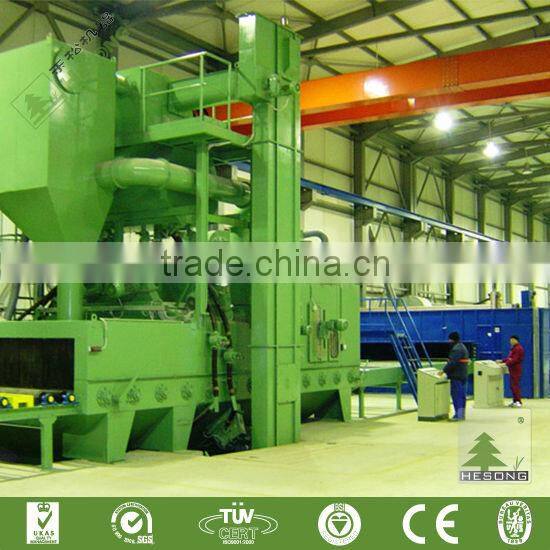

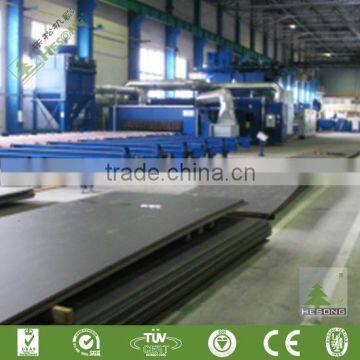

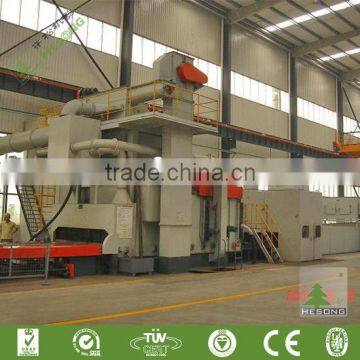

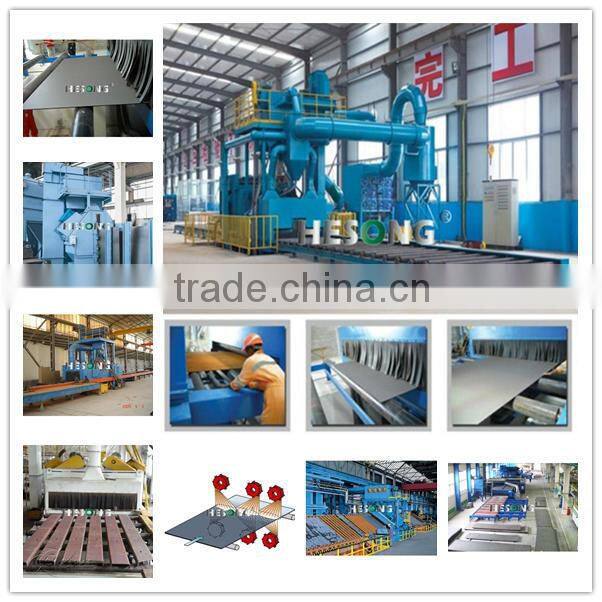

Picture for your reference:
The key part of shot blasting machine is blast wheel / wheel turbine :
About Us
1We have many experienced engineers to consider every possibility for customers.
2.We have 50-year experience in making shot blasting machine in China
3.We have over 25-year knowledge of shot blasting technology. Our machines are designed by means of 3D which show you every details .
4.We have experienced technicians for production, installation, commissioning & after-sale service.
5.All machining parts out sourced from professional CNC machining company with strict quality control procedure.
6.Our company has passed ISO 9001:2008 certification, and we can offer OE service.
Customers Visiting:

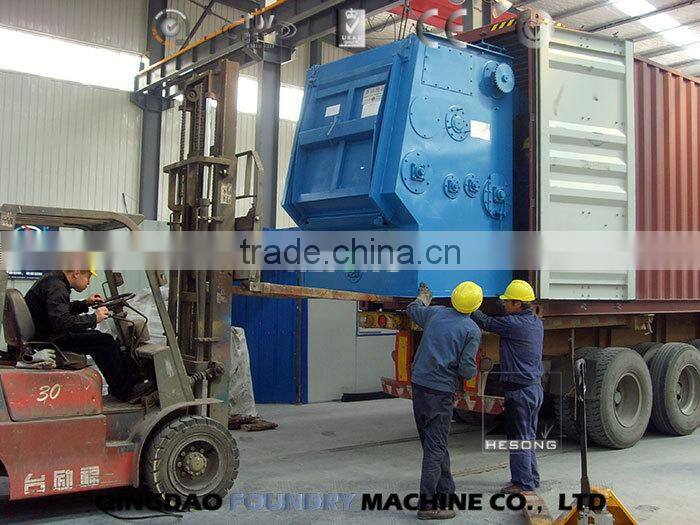

Packing:
Our service:
1.Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & Molding Machine & Core Shooting Machine for more than 40 years, competitive with good quality.
7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
According to your requirements,the most suitable machines will be designed for your workpieces please indicate the folloing details.
1.what kind of workpiece will you clean ?
2.The workpiece size,length ,width and height of maximum workpiece?
3.How many workpiecs do you want to clean per day ?
Based on this question,the detailed technical proposals will be sent to you for reference.
