Specifications
fiber laser cutting metal1.IPG/Coherent fiber
2.Power 300w 500w 1kw 2kw
3.Fixed knife trip
4.Low cost
CNC Fiber Laser Cutting Metal Machine with CE
Fiber Laser Cutting Metal Machine for Stainless Steel Features
- Long lifespan(100,000 hours)of the laser module(IPG laser source 300W, 500W, 1000W,2000W,3000W for choice)
- Specialish for precisely Cutting Sheet Metal
- Auto focus system to change focus length automatically while process uneven materials
- Nesting Software provides efficiency and saving materials
- Minimized burrs and roughness
- Lowest maintenance cost and power consumption
- Easy operation

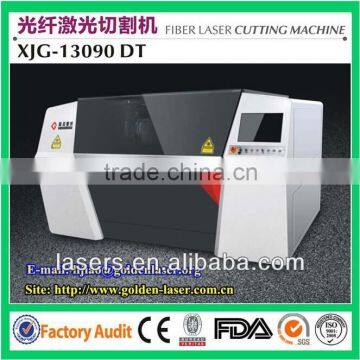

XJG-13090DT Fiber Laser Cutting Metal Machine Specifications
1>The double ball screw closed-loop system and imported open CNC system ensure high processing accuracy, high working efficiency and high speed.
2>Standard collocation of 500W fiber laser generator and optional 300W~2000W fiber laser generator. Low operation and maintenance cost and maximum long-term investment returns and profits.
3>Enclosure design meets CE standard, reliable and safe processing. Shuttle table/pallet working tables convenient for material uploading and unloading and further promotes working efficiency.
4>Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process which ensures long-term accuracy and stability of performance.
5>Standard collocation of dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials. Easy operation and low cost.
6>Standard collocation of automatic nesting software (including material management and optimized processing technology) and database of process parameters is provided for easy operation and simple management.
7>Optimized optical lens, specially designed nozzle and sensor technology realize more smooth and more stable cutting.
XJG-13090DT Fiber Laser Cutting Metal Machine Main Technical Data | |
Laser Type: |
Fiber laser generator |
Laser Power: |
500W / 300W / 1000W / 2000W |
Working area: |
1300mmX900mm 400mmX600mm / 1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm(optional) |
Working Table Structure: |
Fixed Knife Strip Working Table |
Control System |
PMAC full-closed loop servo control |
Positioning Accuracy |
±0.03mm |
Driving Mode |
Double ball screw driving |
Idle/Processing Speed: |
60m/min / 30m/min |
Cooling System: |
High precision constant temperature water chiller |
Protection System |
Enclosure protection |
Laser Head |
Golden Laser / Precitec / Laser mech |
Power Supply: |
AC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz |
Total Power: |
7.5KW / 6KW~20KW |
Support Format: |
PLT, DXF, BMP, AI, DST, DWG, etc. |
Floor Space: |
3mX3m |
Other Standard Collocation: |
Metal nesting software, dual-pressure gas route of 3 kind gas sources, dynamic focus, remote controller, etc. |
Related Model: | |
XJG-6040 DT |
Fiber Laser Cutting Machine 600mmX400mm |
XJG-150300 DT |
Fiber Laser Cutting Machine 1500X3000mm |
GJMSJG-Series |
YAG Laser Cutting Machine 600X400mm,1300X900mm,1300X2500mm,1500X3000mm |
Fiber Laser Cutting Metal Machine Applicable Materials
Laser cutting stainless steel, mild steel, carbon steel, alloy steel, spring steel, iron, galvanized iron, galvanized sheet, aluminum, copper, brass, bronze, gold, silver, titanium plates, metal sheets, metal plates, metal tubes and pipes. Cut the shape of Circle, Triangle, Octagonal and so on
Fiber Laser Cutting Metal Machine Applicable Industries
laser cutting machines have been widely used in manufacture billboard, advertising, signs, signage, metal letters, LED letters, advertising letters, sheet metal processing, metals components and parts, ironware, chassis, racks & cabinets processing, kitchen ware, metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, jewelry, glasses frame, nameplates, electronic parts, etc.

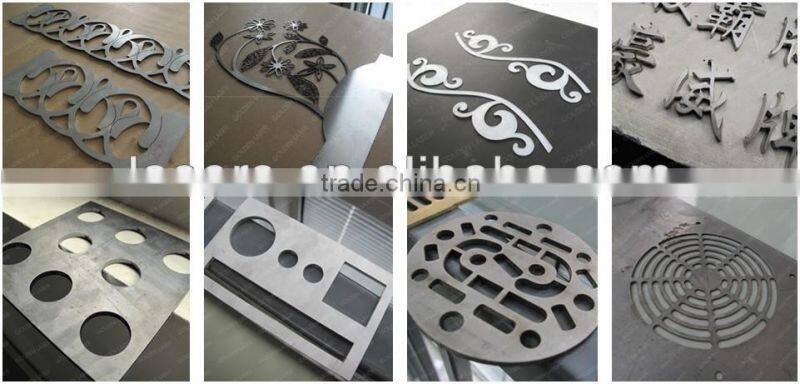

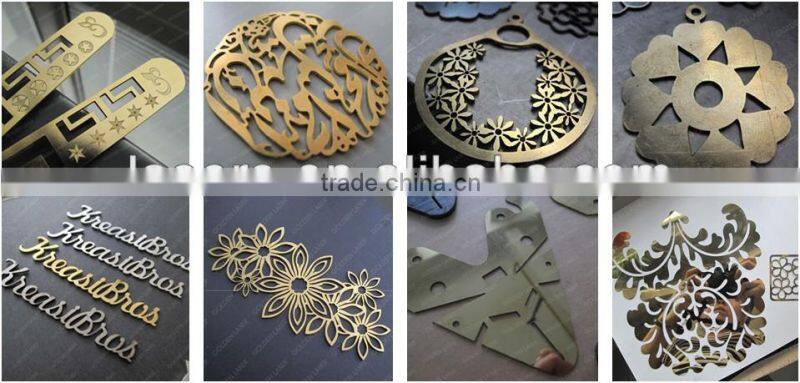

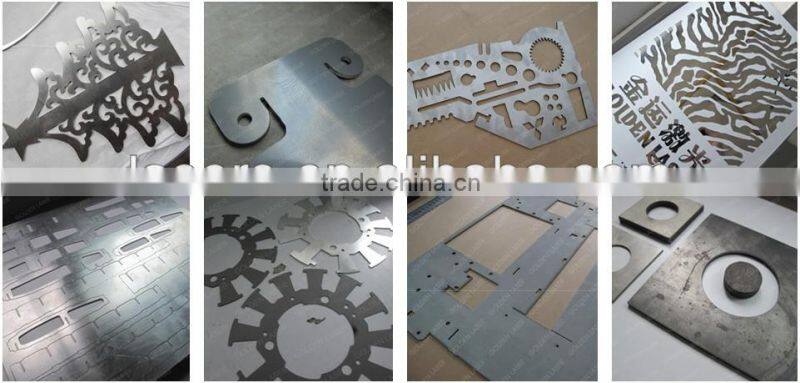

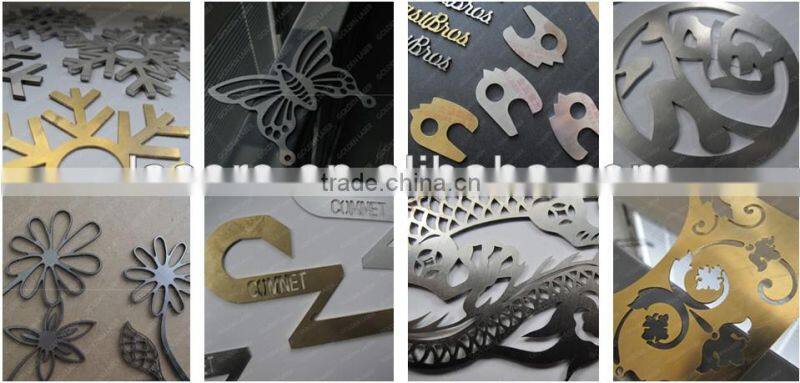

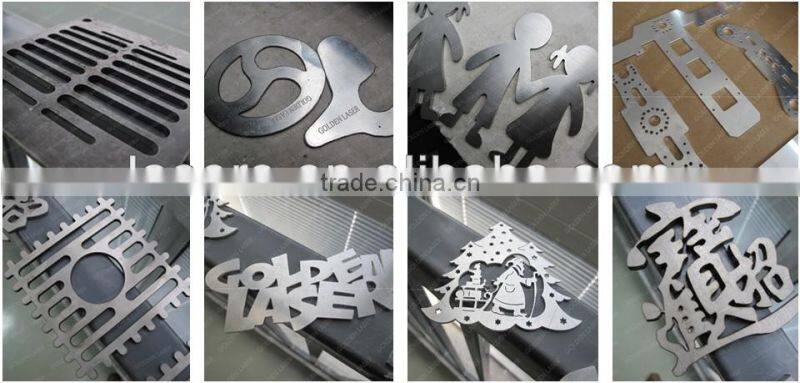

Laser Cutting Metal Samples Dispaly
We will provide the most suitable laser solution according to below information:
1,What metal need to process? copper,brass,alu or stainless steel?
2,What is the size and thickness?
3,What is your business industry? sheet metal,advertising signage or art craftworks or.. ?
4,Are you end-user or machine distributor?
Contact: Ms Kelly Lee
E-m-a-i-l: lijiao(at)
W-E-B:
/user/Goldenlaservideos
Offer Customized Laser Solutions & Looking for Distributors Globally
