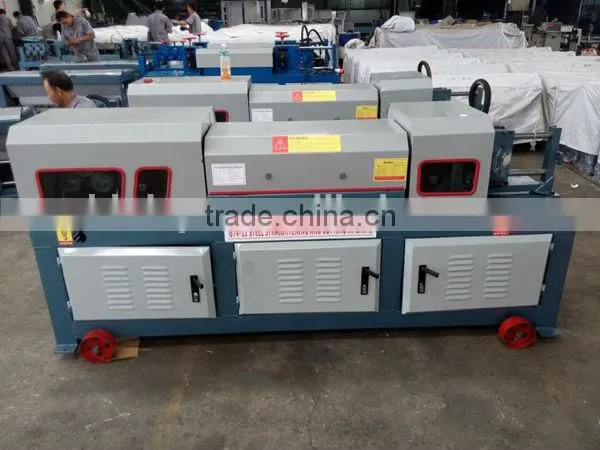

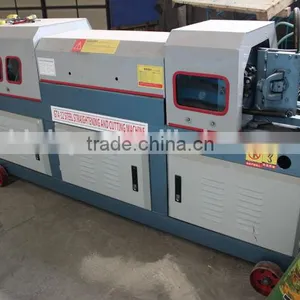

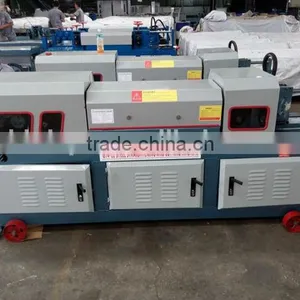

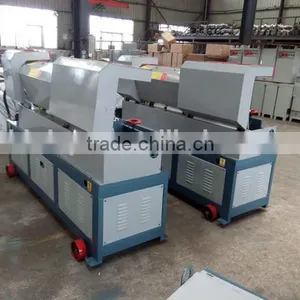

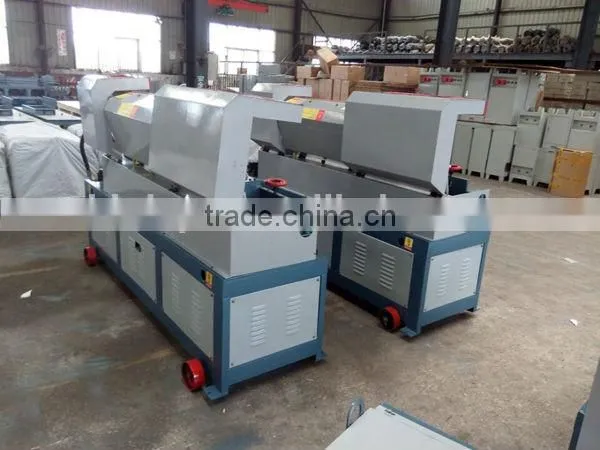

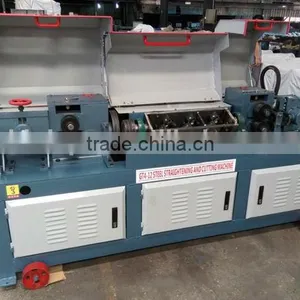

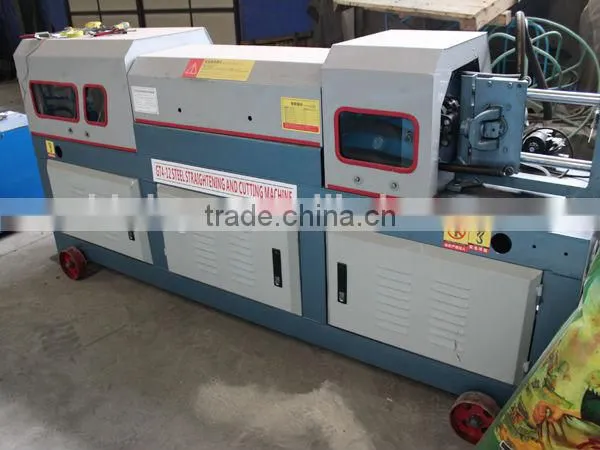

Automatic steel wire straightening and cutting machine with best price

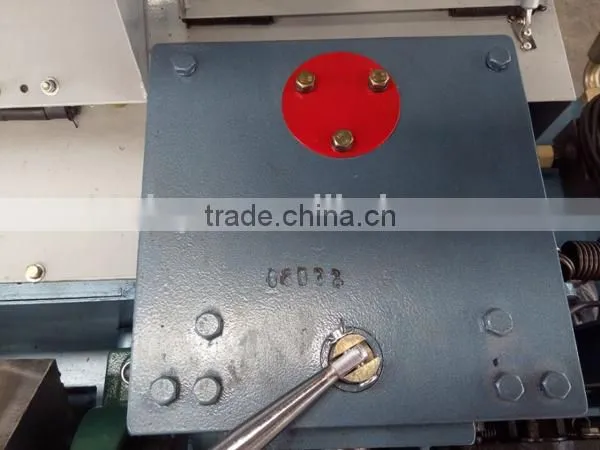

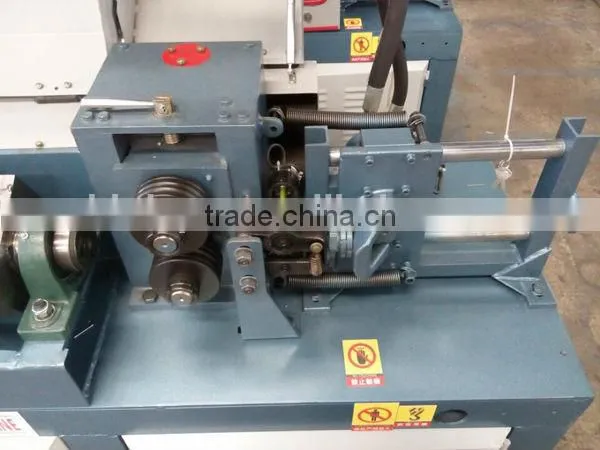

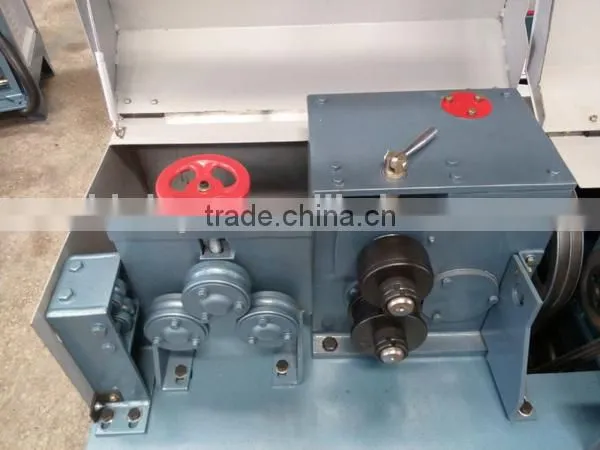

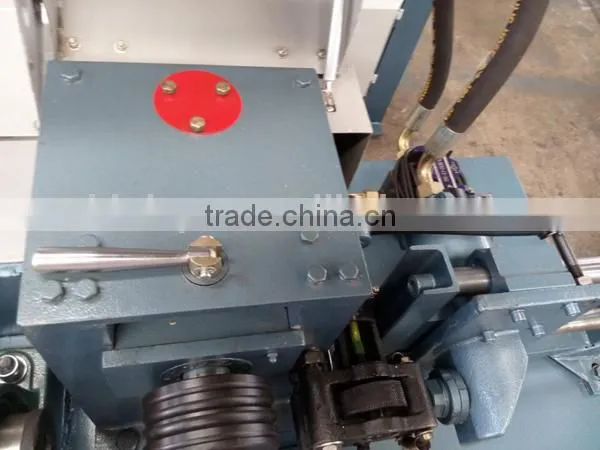

This machine mainly consists of tray bar rack, straightening rack, tractor cutting device, base support, motor rotation facility and control box of electric appliances. This machine is applicable to straightening and cutting of all types of metal wire.
Raw material: low carbon wire
1. It has advanced design and compact conformation.
2. It has attractive appearance.
3. It is easy and safe to operate.
Technical Parameter
Model |
SC1.2-4 |
SC2-5 |
GT4-8 |

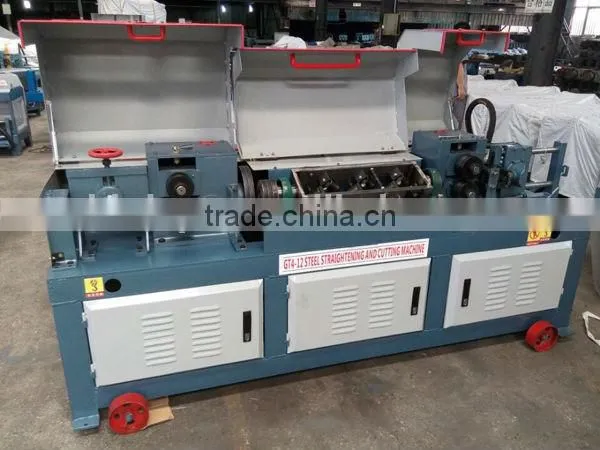

GT4-12 |
GT6-14 |
HS5-12 |
Dia. mm |
1.2-4 |
2-5 |
4-8 |
4-12 |
5-12 |
6-12 |
Cut Length mm |
30-2000 |
30-6000 |
6000 |
500-12000 |
800-12000 |
800-12000 |
Cut error mm |
±1 |
±1 |
±1 |
±5 |
±10 |
±10 |
Speed m/min |
25 |
30 |
35 |
45 |
55 |
45 |
Straight Motor kw |
1.5 |
1.5 |
4 |
11 |
11 |
22 |
Cutting Motor kw |
0.75 |
0.75 |
3 |
4 |
4 |
4 |
Overall Size M |
1.7×0.4×0.8 |
1.2×0.4×0.9 |
7.3×0.6×1.2 |
2.3×0.8×1.1 |
2.1×0.8×1.1 |
1.9×0.6×1.4 |
Weight KG |
130 |
150 |
650 |
1000 |
1200 |
1000 |
Packaging: wooden pallet and plastic package in the container
Shipping: 30 days from we receive your payments in advance
1. Guarantee period: 12 months (but no longer than 18 months since departure from Xingang Port)
2. Our engineers are available to install and maintain machine overseas.
3. Customized machine.
4. OEM support.
5. About 15 days delivery.
6. Moderate price.
7. Door to Door service or 24-hour email service.
What we can offer:
