Our production concept : High efficiency Environmental protection Good quality
Shot blasting machine introduction :
Shot blasting machine is through shot blasting machine will steel shot shot high-speed falling impact in a processing technology of material of the object surface. Compared with other surface treatment technology, it is faster, more efficient, and on the part of the reservation or after stamping casting process.
Shot blasting machine can also be used for removing burrs, scale and rust, may affect the integrity, part of object appearance, or definition. Shot blasting machine can also be aimed at removing surface pollutants on the surface of a part of the coating, and provides an increase in the adhesion of the coating surface profile of the workpiece, to strengthen.
Shot blasting machine is different from the sand blasting machine, which is used to reduce the fatigue life of components increases different surface stress, increased the strength of components, or to prevent fretting.

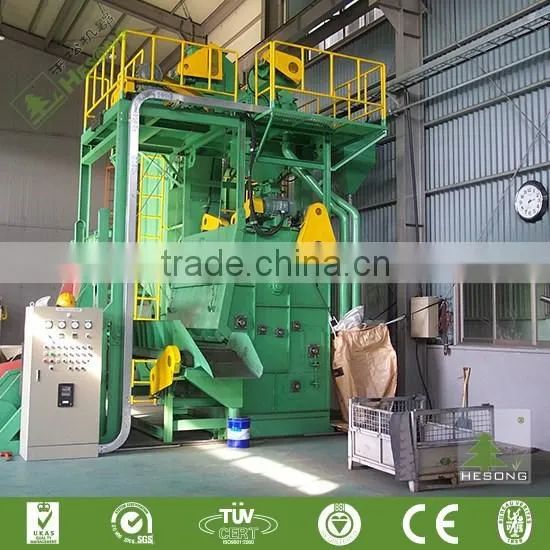

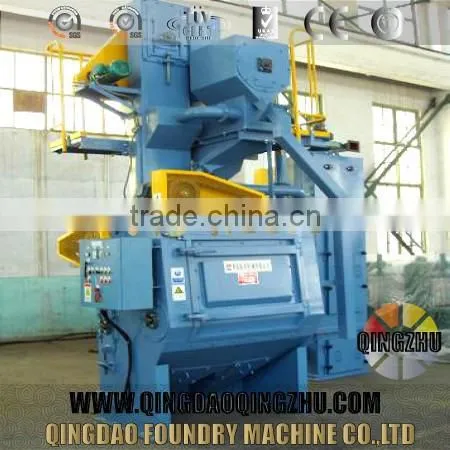

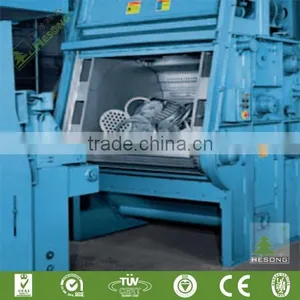

There is before we did for the customer the crawler shot blasting machine:

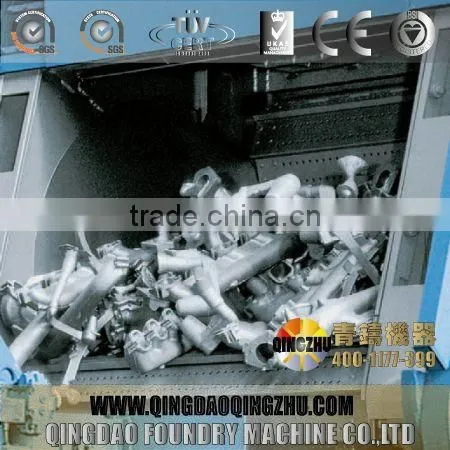

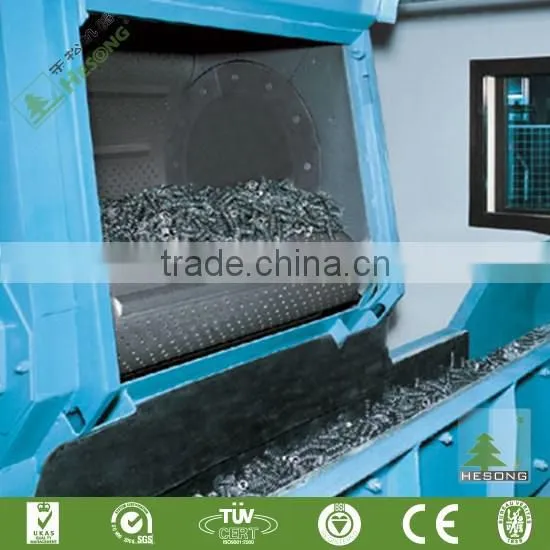

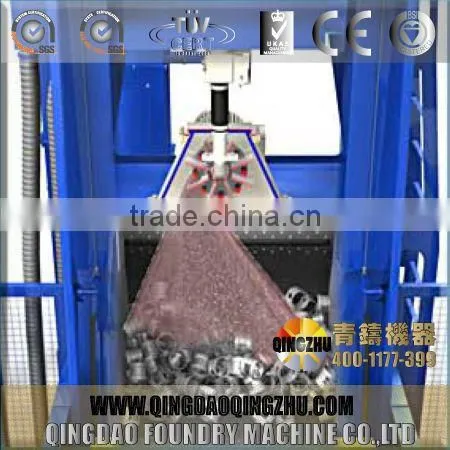

Equipment cleaning efficiency of cleaning effect :
Technical parameters of the equipment :
Parameter |
Unit |
Q326 |
Q3210 |
QR3210 |
Productivity |
T/H |
0.6-1.2 |
3-5 |
1.5-2.5 |
Loading Weight |
kg |
200 |
800 |
600 |
Maximum Weight |
kg |
10 |
15 |
30 |
Diameter of the Roller |
mm |
650 |
1000 |
1000 |
Available Capacity |
m³ |
0.15 |
0.4 |
0.3 |
Pill Impelling Volume |
kg/min |
100 |
250 |
250 |
Power Air Volume |
m³/h |
2200 |
6000 |
5000 |
Power Dissipation |
kw |
12.6 |
32.6 |
24.3 |
Outline Dimensions |
mm |
3681*1650*5800 |
3644*2926*5856 |
3972*2600*4768 |
Machine Total Weight |
kg |
2340 |
5843 |
7400 |
| Mode | Effective volume | Feeding amount | Total Blasting Capacity | Total Power |
| 3GN | 705*800mm | 220Kg/12Kg | 7.5Kw/180Kg | 13.1Kw |
| 6GN-5R | 857*940mm | 363Kg/23Kg | 11Kw/240Kg | 19.2Kw |
| 8GN | 1100*1050mm | 700Kg/35Kg | 15Kw/270Kg | 23.2Kw |
| 8GN-5R | 1100*1050mm | 750Kg/35Kg | 15Kw/270Kg | 27.4Kw |
| 12GN | 1150*1050mm | 850Kg/80Kg | 18.5Kw/300Kg | 31.5Kw |
| 12GN-5R | 1150*1050mm | 750Kg/80Kg | 18.5Kw/300Kg | 34.4Kw |
| 15GN | 1292*1245mm | 1362Kg/227Kg | 22Kw/360Kg | 40.3Kw |
| 28GN | 1445*1778mm | 3500Kg/363Kg | 22Kw/720Kg |
73.5Kw |
This is our shipping packaging :

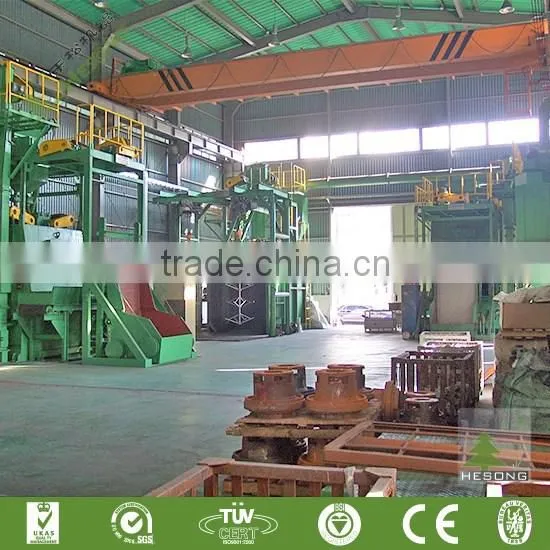

This is our factory :
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & Molding Machine & Core Shooting Machine for more than 40 years, competitive with good quality.
7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
Welcome to contact us or visit our company.
There are many kinds of Shot Blasting Machines as follows:
Q69 Series Roller Conveyor Type Shot Blasting Machine
KSB Series Hook Type Shot Blasting Machine
Q37 Series Shot Blasting Machine For Engineering Machinery
Q311 Series Drum Type Shot Blasting Machine
Q26/Q36 Series Flatcar Shot (Spray) Type Cleaning Machine
Q76 Series Trolley Type Shot Blasting Machine
Q38 Continuous Pendant Chain Type Shot Blasting Machine
Q48 Step-By-Step Pendant Chain Type Shot Blasting Machine
Q58 Changeable Chain Type Shot Blasting Machine
ZJ0 Series Rotary Table Shot Blasting Machine
ZJ02 Series Spring Shot Blasting Machine
ZJ18 Series Wheel Roller Shot Blasting Machine
QGW Series Steel Tube Outer Wall Shot Blasting Machine
QGN Series Pipe Inwall Shot Blasting Machine
GN Series Belt Type Shot Blasting Machine
Q32 Series Apron Type Shot Blasting Machine
Q35 Series Turntable Type Shot Blasting Machine
QWD Series Wire Mesh Belt Type Shot Blasting Machine
QSHBSeries Rotary Hook Type Shot Blasting Machine
QX Series Wire Rod Shot Blasting Machine
QM Series Special Shot Blasting Machine For Anchor Chain
RE Series Shot Peening Machine For Strengthening For Mill Roll
CND Series Inclined Drum Shot Blasting Machine
SHB Series Turntable Shot Blasting Machine
Ql Series Squirrel-Cage Type Shot Blasting Machine
ZJ076 Series Leaf Spring Shot Peening Machine For Strengthening
SCC Series Spring Shot Peening Machine For Strengthening
SNC Series Bar Shot Blasting Machine
Oursincerity and enthusiasm welcomed the customers all over the world for us:
