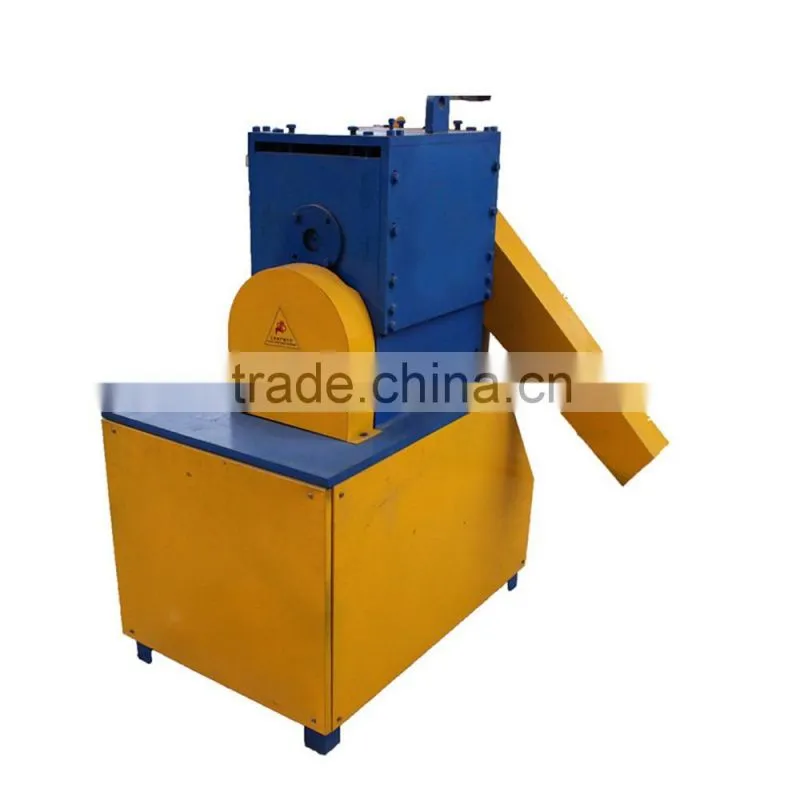

carbon steel fiber cutting machine ( wire type)
1. Wire Type Steel Fiber Machine adopts Germany technology and counter cutting technology, produce all types of steel fiber for concrete reinforcement.
2.Different from the traditional low capacity machine, it can produce more than 6 tons hooked end steel fiber instead of six sets old style steel fiber machine.
Technical Parameter
Model |
DP-900W |
Raw materials |
Iron wire,stainless steel wire |
Production capacity |
2-7ton/ 8hours shift |
Motor capacity |
3KW |
Rotation speed |
1200r/min |
Steel Fiber Shape |

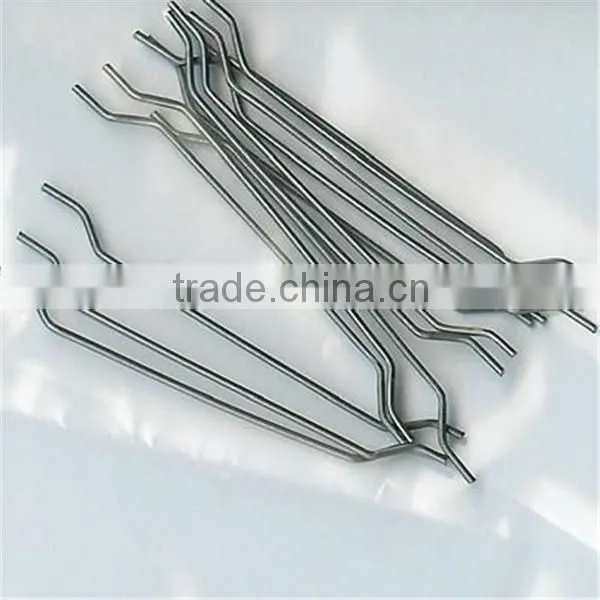

Hooked Type, Waved Type |
Wire Diameter |
0.3mm-1.5mm |
Fiber length |
1mm-60mm |
Tensile Strength of Steel Wire |
600-2880MPA |
Machine’s weight |
1200KGS |
Dimension |
1000mm*720mm*1500mm |
Iron wire, stainless steel wire
1. It has advanced design and compact conformation.
2. It has attractive appearance.
3. It is easy and safe to operate.
We always pay more attention to the quality of our machine, Standard quality control system and team are responsible to insure the high quality in every process. We are devoted to producing a more efficiency and safer machines.

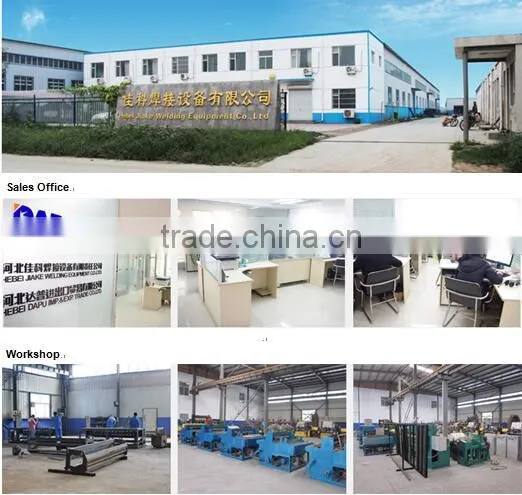

Our company is engaged in designing and exporting metal & wire mesh processing machinery, different kinds of wire mesh weaving machines and wire mesh welding machines. Our company is located in Shijiazhuang, Hebei, China. Our company has own factory - Hebei Jiake Welding Equipment Co., Ltd., which is located in the Industrial Zone of Anping, Hebei, China. Our company is a leading manufacturer of wire mesh machines in China and we always offer ADVANCED WIRE MESH TECHNOLOGY.
Certificate
2. 24 hour technical support by e-mail
3. We offer installation and train the workers for the customers.
