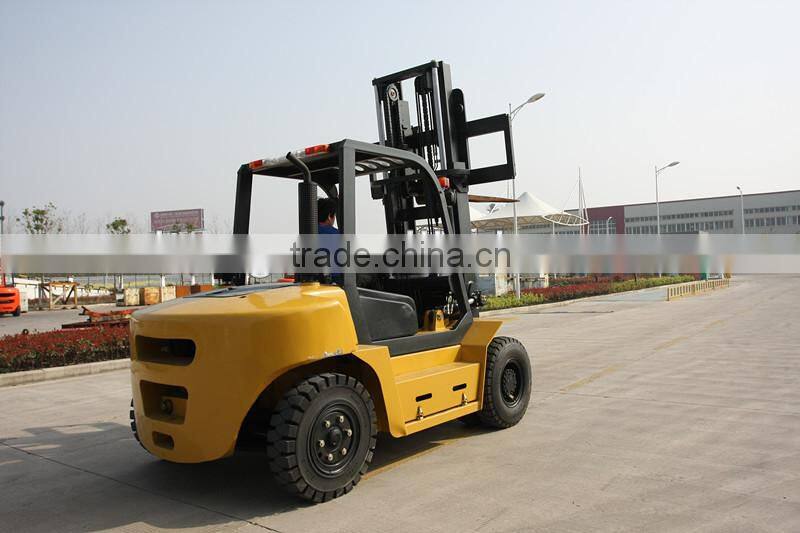

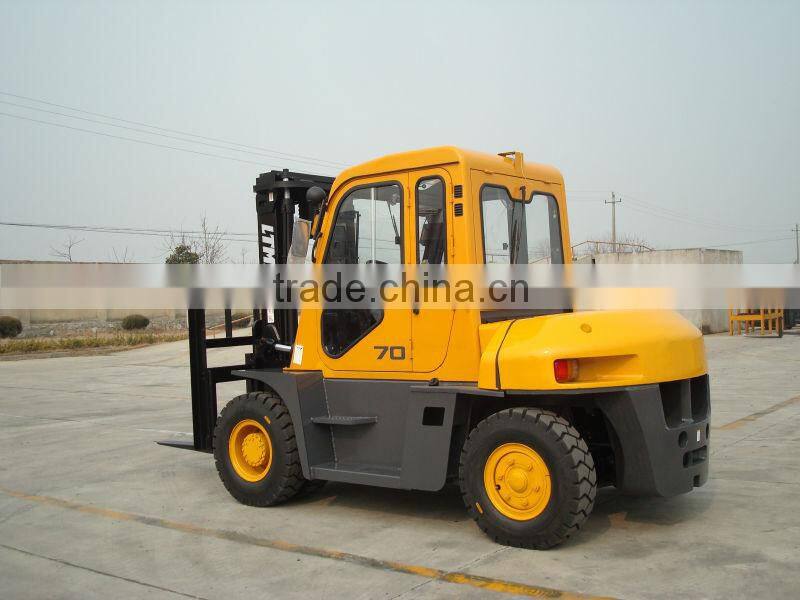

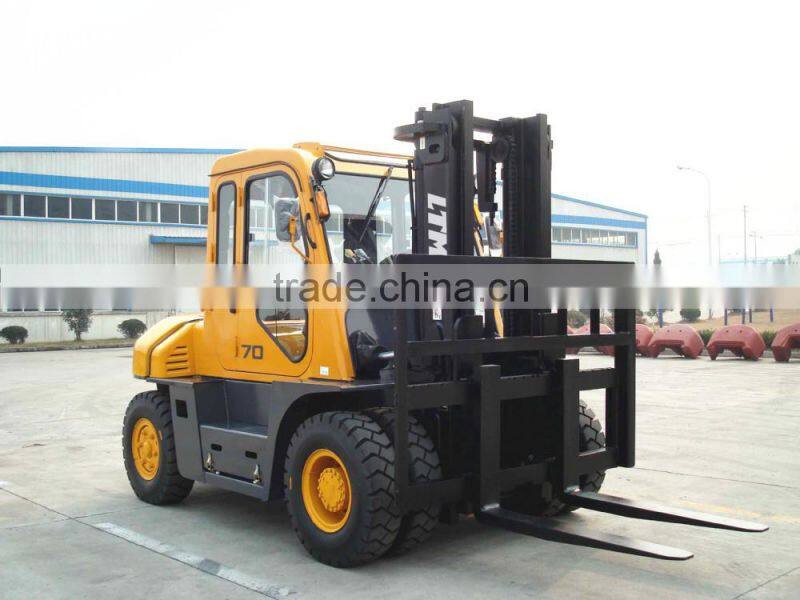

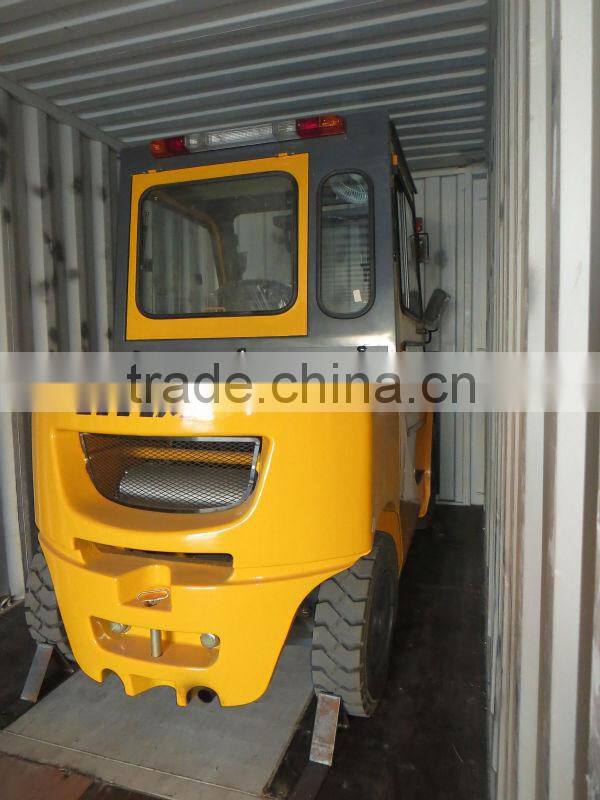

Help CenterLTMA Top Quality Forklift 7 Ton Diesel Forklift With Sealed Cab
Related Products
-
2 - 4 Ton Lpg Forklift New Nissan Forklift Prices With Epa Approval Quality ChoiceUS$ 8,000 - 11,000MOQ: 1 Set -
3 -10 Ton ce Approval 3 Ton Diesel Forklift Truck Price CompetitiveUS$ 9,000 - 11,000MOQ: 1 Piece
-
LTMA 1- 5 Ton Electric Forklift Price for SaleUS$ 9,990 - 18,000MOQ: 5 Sets
-
LTMA 2016 Top Quality Forklift 7 Ton Diesel Forklift PriceUS$ 8,000 - 10,000MOQ: 1 Set
-
Good Design 3 Ton Forklift Specification PriceUS$ 8,000 - 11,000MOQ: 1 Set
The specifications of 7 ton diesel forklift as below:
| FD70T Technology Specification | |||||
| Features | 1 | Manufacturer | LTMA | ||
| 2 | Model | FD70T | |||
| 3 | Load capacity | kg | 7000 | ||
| 4 | Load center | mm | 600 | ||
| 5 | Power unit | Diesel | |||
| 6 | Operator type | Driver/seat | |||
| 7 | Tire type | Front/rear | Pnenumatic | ||
| 8 | Wheel | Front/rear | 4/2 | ||
| Dimension | 9 | Max. lifting height | mm | 3000 | |
| 10 | Free lift | mm | 210 | ||
| 11 | Fork size | L*W*T | mm | 1220*150*65 | |
| 12 | Tilt range | Mast forward/backward | deg | 6/12 | |
| 13 | Overall length(without fork) | mm | 3590 | ||
| 14 | Total width | mm | 1995 | ||
| 15 | Mast height (fork lowering) | mm | 2500 | ||
| 16 | Overall height fork raised | With backrest | mm | 4420 | |
| 17 | Height to head guard | mm | 2450 | ||
| 18 | Turning raduis(outside) | mm | 3360 | ||
| 19 | Front face of fork to front axle | mm | 620 | ||
| 20 | Min. right angle stacking aisle | pallet size :1100×1100 add clearence | mm | 5620 | |
| Performance | 21 | Speed | Max Travelling full/no load | km/h | 26/30 |
| 22 | Lifting full/no load | mm/s | 450/550 | ||
| 23 | Lowering full/no load | mm/s | 450/500 | ||
| 24 | Max.drawbar pull | full/no load | kg | 5400/2200 | |
| 25 | Gradeability at 1.6km/h | full load | % | 29 | |
| Max. Gradeability | full/no load | % | 33/19 | ||
| Weight | 26 | Truck weight | kg | 9450 | |
| 27 | Weight distribution | Full load front/rear | kg | 14520/1930 | |
| 28 | No load front/rear | kg | 3760/5690 | ||
| Frame | 29 | Tires | Number | front/rear | 4/2 |
| 30 | Model | front axle | 8.25x15-14PR | ||
| 31 | rear axle | 8.25x15-14PR | |||
| 32 | Wheelbase | mm | 2250 | ||
| 33 | Tread | Front/rear | mm | 1470/1700 | |
| 34 | Ground clearence | At lowest point(mast) | mm | 190 | |
| Frame | mm | 230 | |||
| 35 | Brake | Service brake | power brake | ||
| Parking brake | Mechanical-hand lever | ||||
| Engine | 36 | Battery | Voltage/capacity | V/AH | 2x12V-80AH |
| 37 | Engine | Model | ISUZU 6BG1 | ||
| Rated power | PS | 112/2000 | |||
| Rated torque | kg-m | 42.5/1500 | |||
| Number of cylinders | 6 | ||||
| Placement | L | 6.494 | |||
| Fuel tank capacity | L | 140 | |||
| 38 | Transmission | shift stage(front/rear-type) | 2-2 power shift T/M | ||
| 39 | Operating pressure | Hydraulic system pressure | kg/cm² | 200 | |
1.What's the Certificate do you have?
LTMA workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements. LTMA never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMA will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMA warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 90 days.
7, How can you ensure the quality of the products ?
Don’t worry,we joined the trade assurance. If the products have quality problem when you received the goods, Alibaba can return you full payments.
