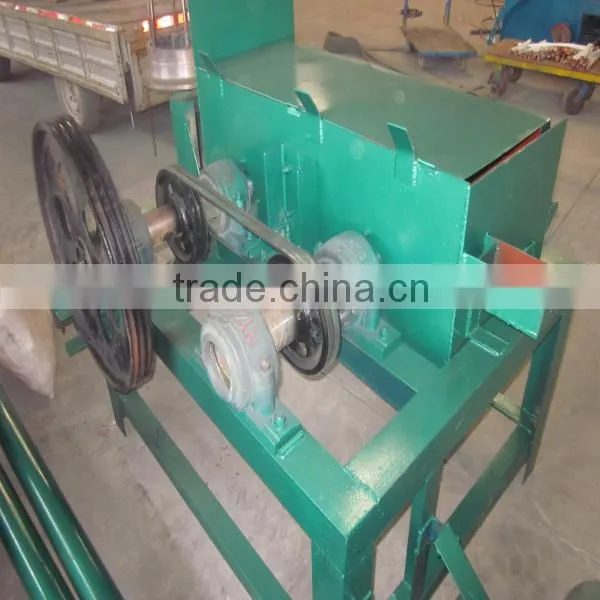

LT series wet fine thin brass wire drawing machine
Description
1. Structure: wire coils, motor and mechanical transmission device.
2. Suitable materials: low-carbon wire and some of non-ferrous metal wires.
3. Application: The product is extensively used to produce standard parts.
Technical parameter
Water tank wire drawing machine | |
Strengthen tensile |
Mpa≥110kg/mm2 |
Max. inlet diameter |
2.2mm |
Mini. outlet diameter |
0.7mm |
Drawing path |
15 |
Pot diameter |
Φ350mm |
Capacity |
180m/min |
Total compress |
86% |
Equal compress |
16% |
Unit motor |
11KW |
Unit weight |
500kg |
Overall size |
2400×1100×1100 |
1.high speed;
2.high productivity;
3.low noise;
4.low cost.

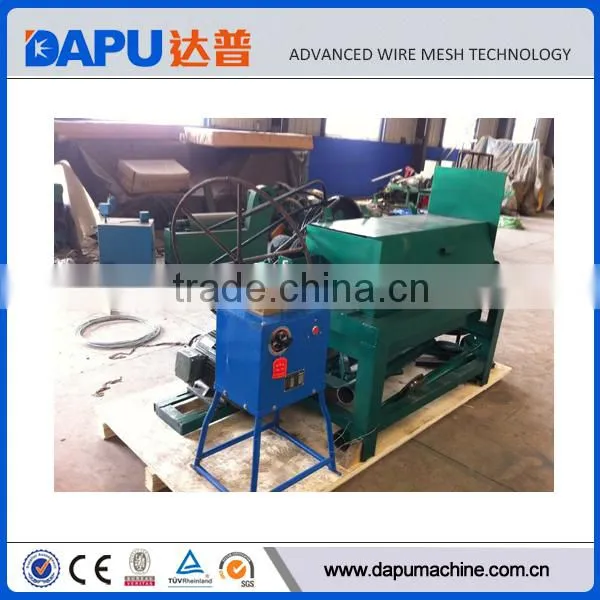

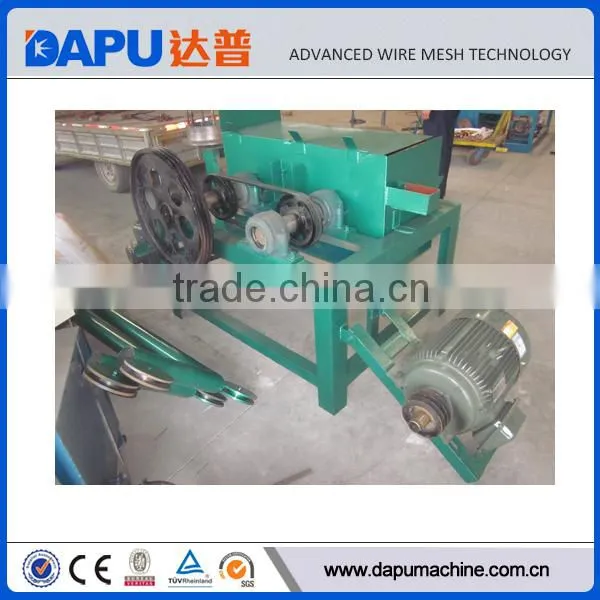

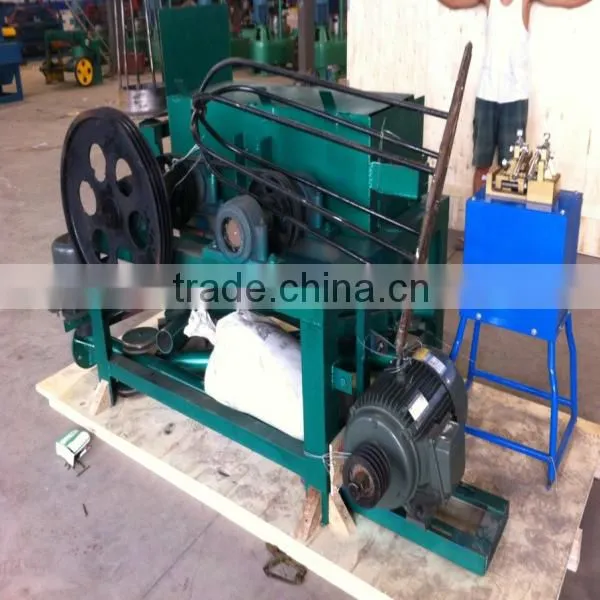

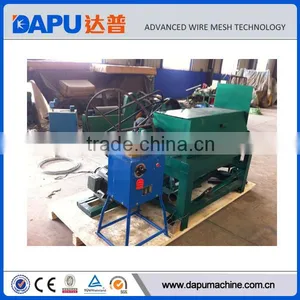

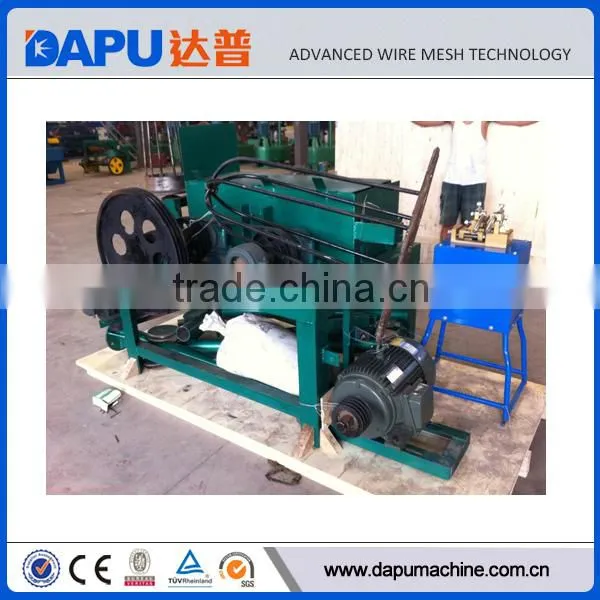

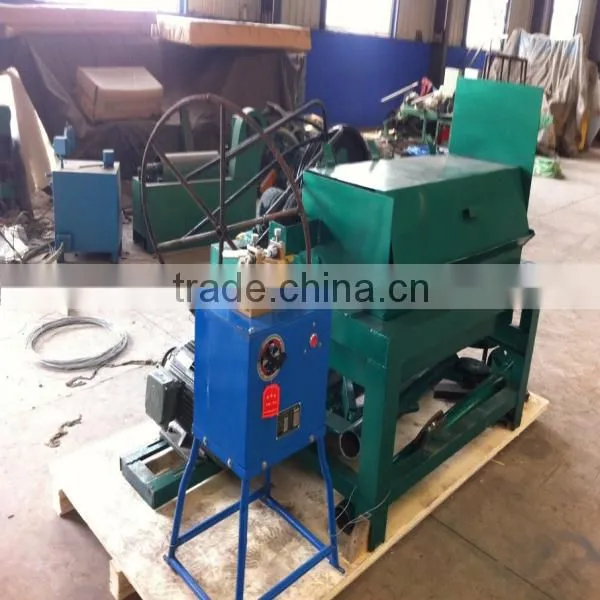

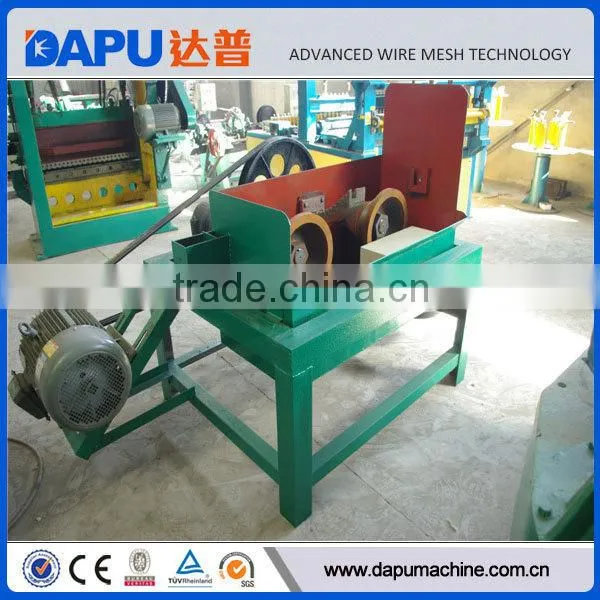

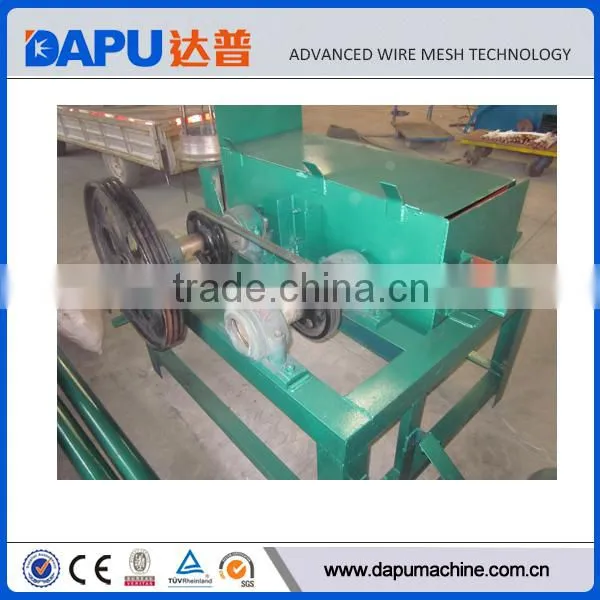

Machine photos

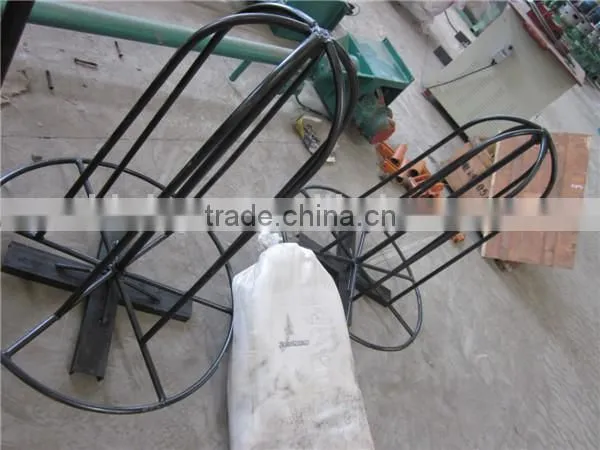

Auxiliary equipment

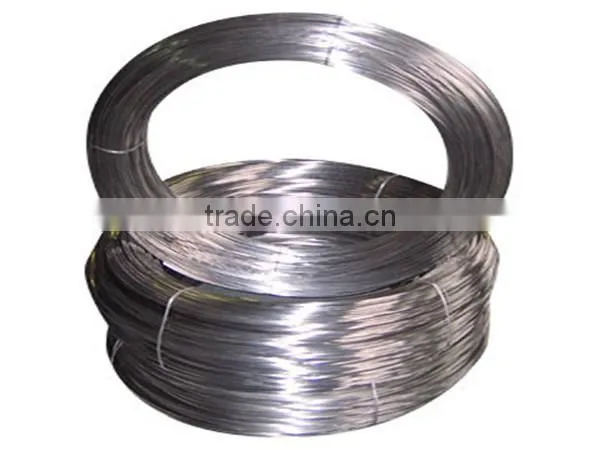

Finished products
- Predecessor-Anping Feilong Wire Mesh Machine Factory in1999;
- ISO9001: 2000 Certificate in 2006;
- Win import & export right from government in 2008;
- CE Certificate in 2009;
- Approved with inspection by Bureau of Quality Supervision &Inspection & Quarantine of Hebei in 2009;
- Awarded as advanced Enterprise for Project Construction, Enterprise with Prominent Establishment for Science and Technology progress in 2010.
Brief Introduction
Hebei Dapu Impot & Export Trade Co., Ltd. is the leading manufacturer of wire mesh machine in China and always offers advanced wire mesh technology. We are engaged in designing, manufacturing and exporting different kinds of wire mesh machines. Our office is located in Shijiazhuang city, Hebei, China. And our own factory Hebei Jiake Welding Equipment Co.,Ltd is located in Anping Industrial zone, Hebei, China.
