Simple drum and stick iron wire drawing machine
The simple pulley wire drawing machine consists of main reducer motor, mould case, guiding wheel frame and general electrical motor control system. Each pot has a reducer motor; the machine is droved by gears.
Advantages of simple wire drawing machine
With electrical system, the machine has advantages of safety operation, low noise and high efficiency.
Suitable materials of simple wire drawing machine
low-carbon steel, copper, aluminum, etc.
Application of simple wire drawing machine
The product is extensively used to produce standard parts (e.g. welding rod, wire nail, screw, etc.).
Technical Parameter of simple wire drawing machine
One-set 4-pot wire drawing machine (6.5mm-3.7mm) | |||||||||
|
1st |
2nd |
3rd |
4th |
|||||
Model size (mm) |
6.2+5.7 |
5.0 |
4.3 |
3.7 |
|||||
Motor capacity (KW) |
15 |
11 |
|||||||
Rotational speed (r/min) |
49 |
58 |
73 |
78 |
|||||
Type of motor |
6-level motor |
4-level motor |
|||||||
Productivity |
78*Dπ=135 (r/min) |
||||||||
One-set 5-pot wire drawing machine (3.7mm- 2.0mm) | |||||||||
|
1st |
2nd |
3rd |
4th |
5th |
||||
Model size (mm) |
3.3 |
2.9 |
2.6 |
2.3 |
2.0 |
||||
Motor capacity (KW) |
7.5 |
||||||||
Rotational speed (r/min) |
73 |
85 |
103 |
111 |
120 |
||||
Type of motor |
6-level motor |
4-level motor |
|||||||
Productivity |
120*Dπ=207 (r/min) |
||||||||
|
Note: 1.The productivity of Simple Wire Drawing Machine: 312.5 kg/h 2. The rotational speed of 4-level motor: 1440r/min 3. The rotational speed of 6-level motor: 960r/min 4. The max. Diameter of inlet wire: 6.5mm 5. Suitable material: low-carbon iron wire. E.g. Q195, Q215, and Q 235 (annealing) 6. The productivity of Simple Wire Drawing Machine: 312.5kg/h= | |||||||||

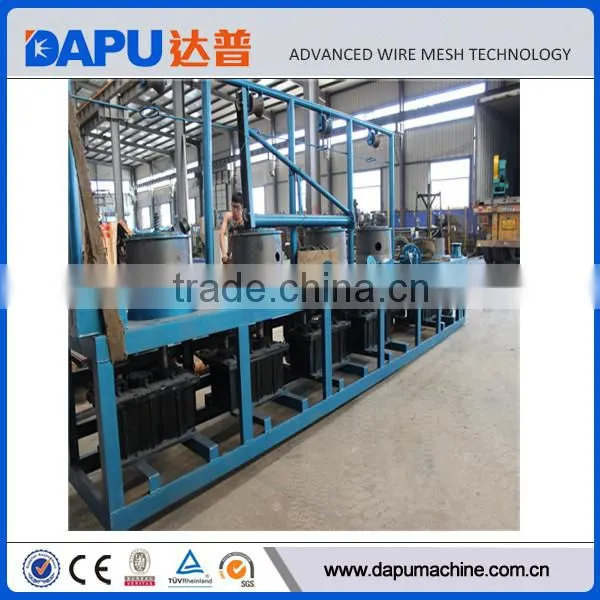

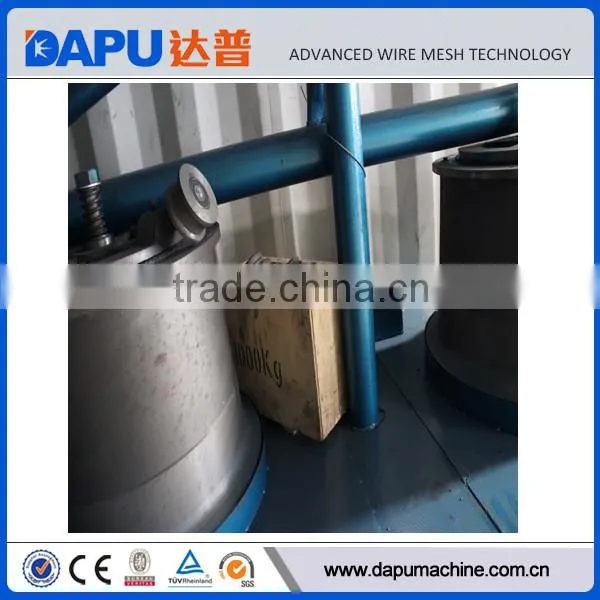

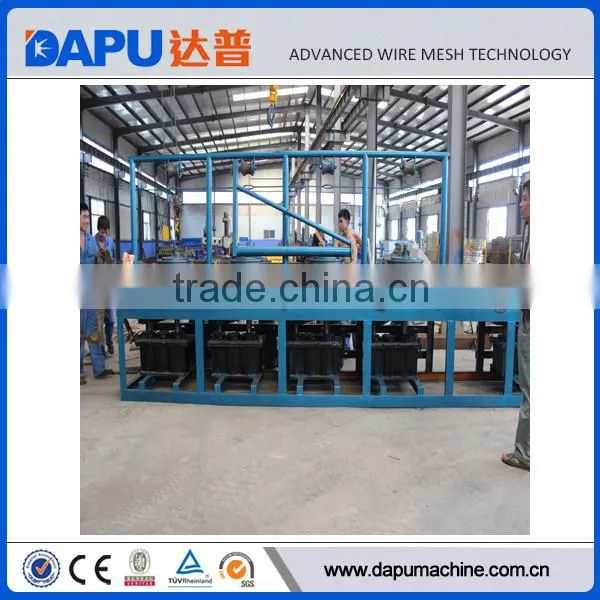

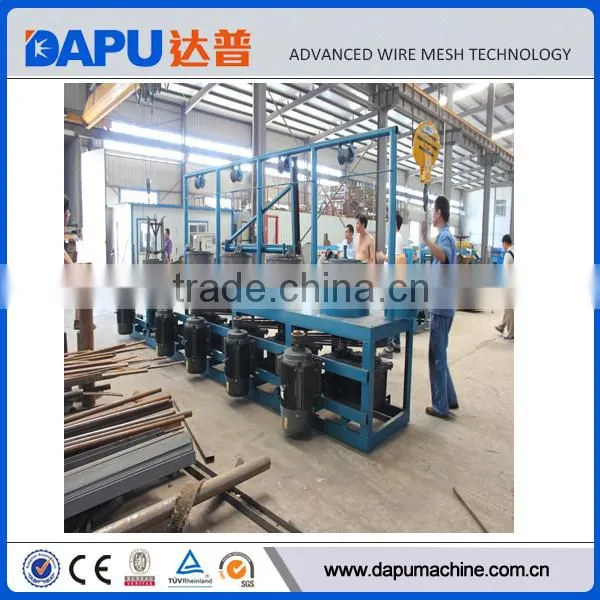

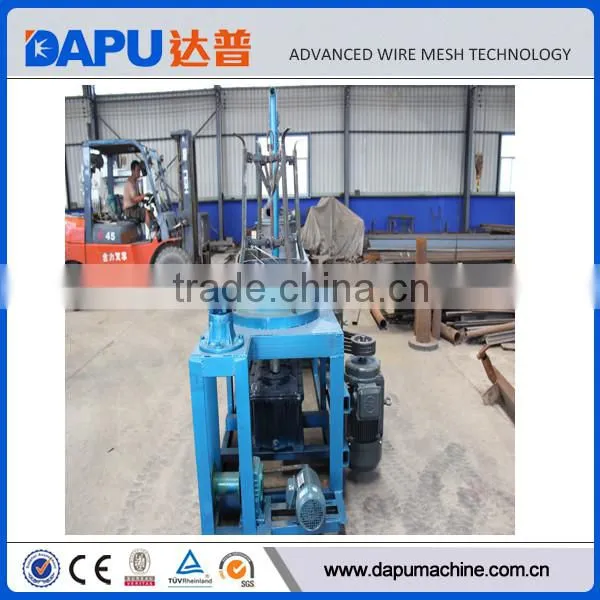

Machine photos Loading picture

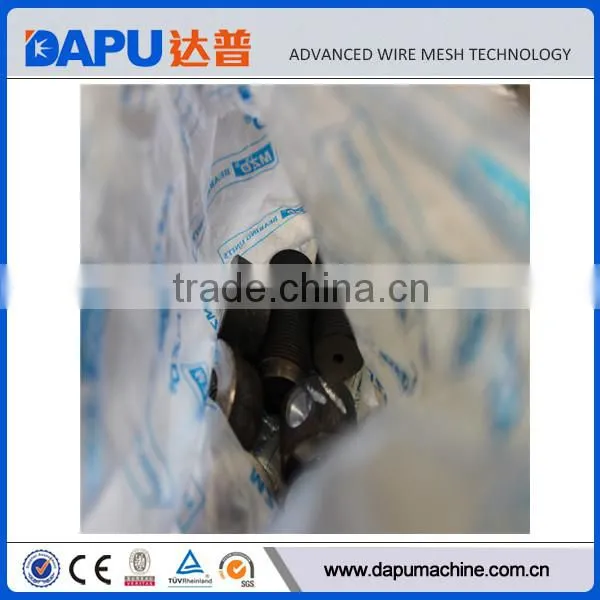

Mould picture
Auxiliary equipment

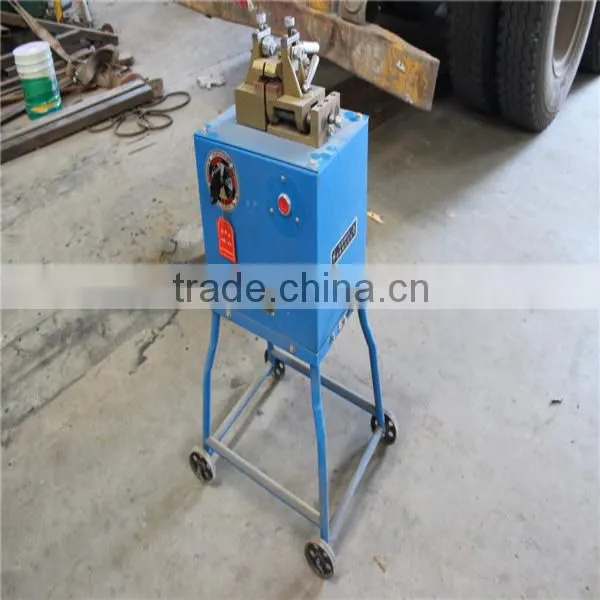

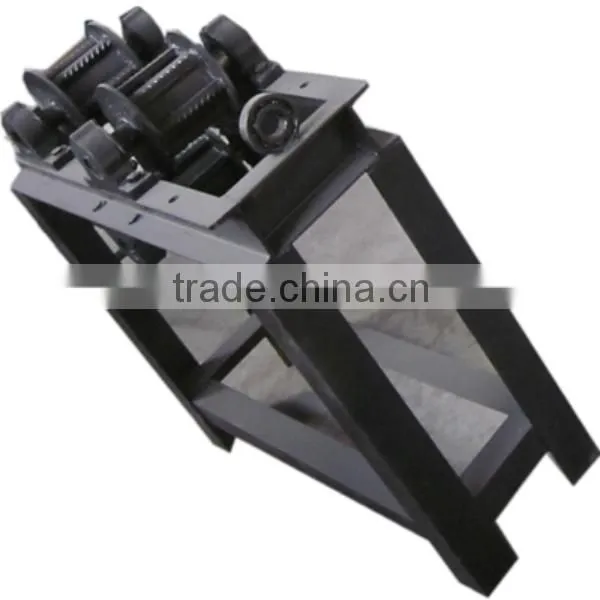

Sheller Butt-welding machine

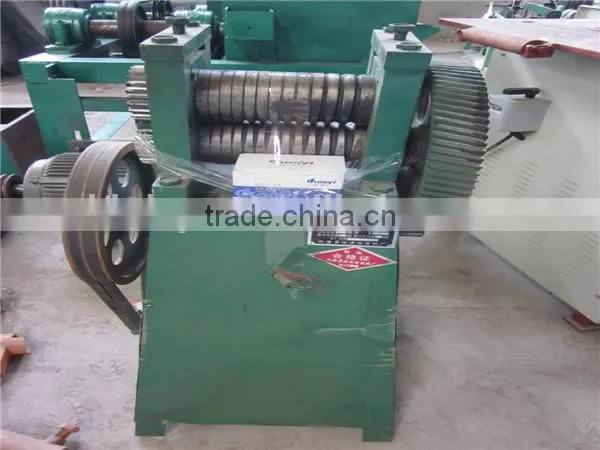

Tip roller

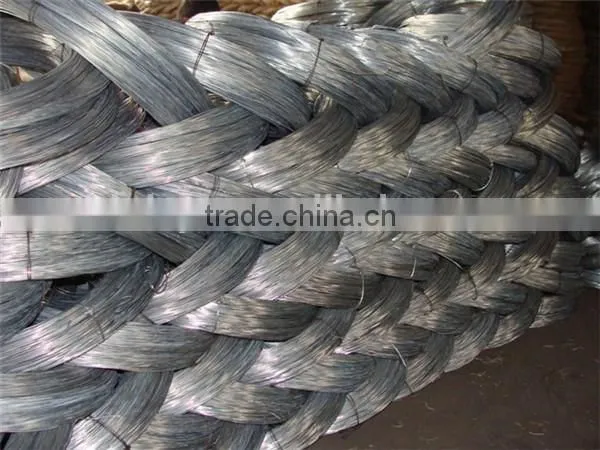

Finished products
1.high speed;
2.high productivity;
3.low noise;
4.low cost.
Brief Introduction
Hebei Dapu Impot & Export Trade Co., Ltd. is the leading manufacturer of wire mesh machine in China and always offers advanced wire mesh technology. We are engaged in designing, manufacturing and exporting different kinds of wire mesh machines. Our office is located in Shijiazhuang city, Hebei, China. And our own factory Hebei Jiake Welding Equipment Co.,Ltd is located in Anping Industrial zone, Hebei, China.
1. Guarantee period: 12 months (but no longer than 18 months since departure from Xingang Port)
2. Our engineers are available to install and maintain machine overseas.
3. Customized machine.
4. OEM support.
5. Fast delivery.
6. Moderate price.
7. Door to Door service or 24-hour email service.
