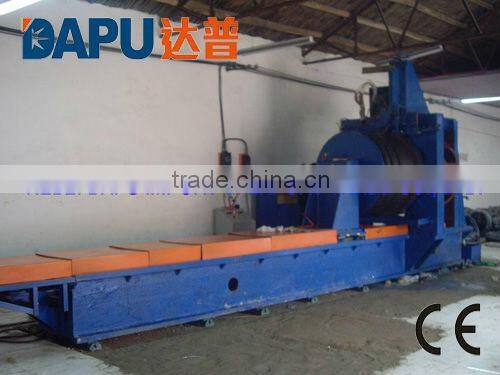

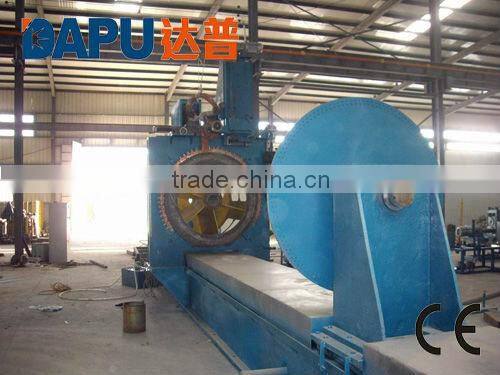

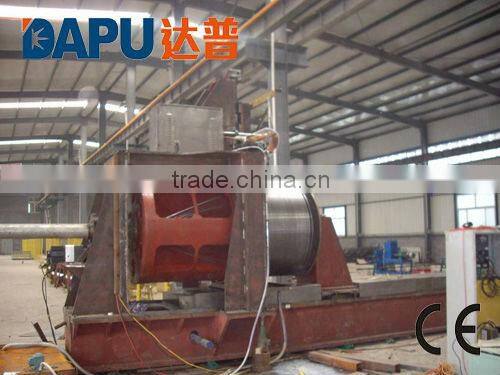

Wedge wire screen welding equipment
Wedge wire screen welding equipment
Wedged wire screen welding machine
Function Characteristics:
1. Our wedged wire screen mesh welding machine have the strongpoint of low noise, low energy consumption and stable function.
2. The electrical control system is researched and developed by ourselves; main axis and feeding axis are both adopt Panasonic Brand AC power servo motor and drivers.
3. Slot size adopt NC servo motor to drive ball-screws. Ball-screws drive the drawing support rods plate sliding on linear guideway according to the instructions, slot size could be adjusted randomly.
4. Machine parameters display visually and conveniently, simple and easy to do. Ball-screws and linear guideway both adopt import famous brand products.
5. The machine are combined by CD61100 lathe, welding control cabinet, transformer and wire press unit, it has strongpoint of welding hole distance.
Usage:
Welding wire wrapped screen pipe, mineral filtrating mesh, coal washing mesh, water filtrating mesh, water well screen etc.

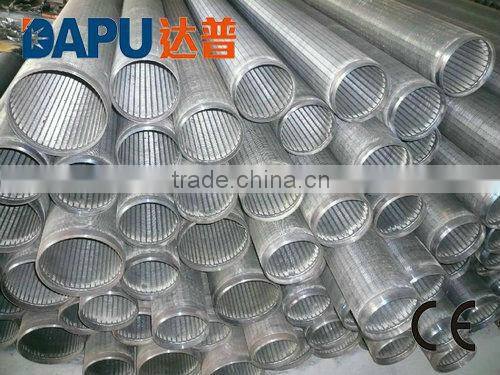

Wedged wire screen-picture1
Griddle filter mesh-picture2
Main Parameters:
Automatic mode-input correct variable value then the machine can work automatic cycle.
Adjustable mode-every parts of movement of machine could be adjustable, like a manual mode.
Model |
50—200mm |
100—600mm |
600—1200mm |
Power |
3Phase 380V 50Hz |
3Phase 380V 50Hz |
3Phase 380V 50Hz |
Rated capacity |
100KVA |
100KVA |
100KVA |
Slot distance |
≥0.1mm |
≥0.2mm |
≥0.25mm |
Canister length |
Max 6000mm |
Max 6000mm |
Max 4000mm |
Weld material |
Stainless steel wire & Low carbon steel wire |
||
V-wire size |
1.8—5.0mm |
1.8—5.0mm |
1.8—5.0mm |
Support rod size |
1.8—5.0mm |
1.8—5.0mm |
1.8—5.0mm |
Overall dimension |
13000*1500*3300mm |
13000*1600*3400mm |
11000*2100*3800mm |
Weight |
10000KG |
11000KG |
13000KG |
Slot: ≥0.25mm canister, diameter should be within 30-400mm
≥0.7mm sieve, diameter should be within 400-600mm
≥1mm sieve, diameter should be within 600~1200mm
Accessorial Parts:
V-shaped wire machine; wire rolling machine; straightening&cutting machine; electric control cabinet; flatter mesh machine; cutting mesh machine
Note: Two motors, one for drawing mesh 2kw, one for rolling the mould 3kw
After-sale service:
1.We can offer installation and train the workers for the customers.
2.Guarantee time:one year since the machine was installed at buyer's factory but within 18 months against B/L date.
3. We can help design the layout of the machine placed in the factory.
