200hp China Bulldozer Brands Crawler Dozer

FOB Price

US$ 55,000 - 110,000 / Unit

1 Unit(Min. Order)

Port Tianjin
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	LTMA
Model Number	200	Condition	New
Moving Type	Crawler Bulldozer	Machine Weight	18800kg
Dimension(Long * Breadth * High)	653034163130mm	After-sales Service Provided	Overseas third-party support available

Product Description

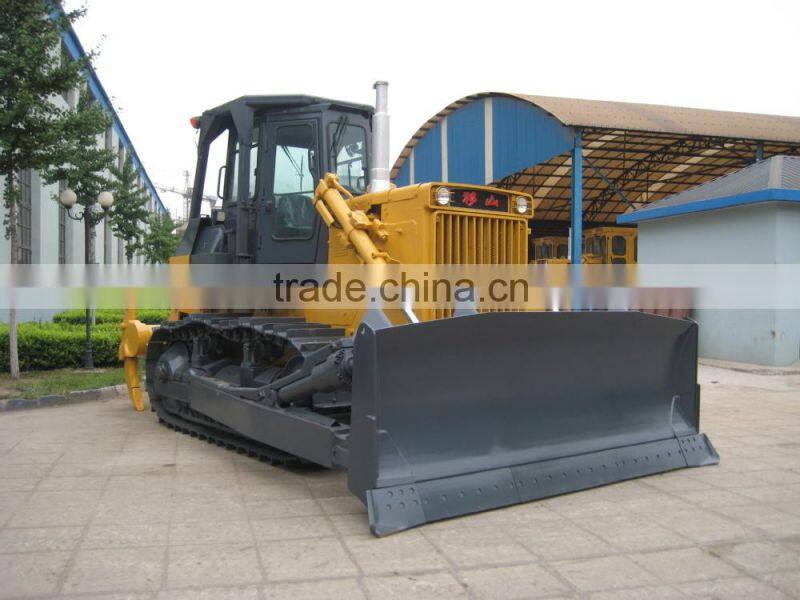

200hp China bulldozer brands crawler dozer

Features & Characteristics of 200 hp road dozer

AWARDED THE ISO9001:2000 SYSTEM CERTIFICATE
ENGINE MODEL: CUMMINS NT855-C280S10/SHANGCHAI SC11CB200G2B1/WEICHAI WD10G200E25
FLYWHEEL HORSEPOWER: 200 HP (150 kW)/1850RPM
OPERATING WEIGHT(STRAIGHT-TILT DOZER): 18800kg
INTRODUCED KOMATSU D65E-8 BULLDOZER TECHNOLOGY, FEATURING HIGH PERFORMANCE CAPACITY, EFFICIENCY, SAFE AND RELIABLE IN OPERATION.
WIDELY USED IN INFRASTRUCTURE AND INDUSTRY INCLUDING LARGE MINING AREA, PORT, POWER PLANT, ROAD BUILDING ETC.
ENLARGED WATER TANK AND 3-STAGE AIR CLEANING IS AVAILABLE AT CUSTUMERS’ OPTION FOR TROPICAL AND DESERT APPLICATION.
OPTIONAL ATTACHMENTS: STRAIGHT-TILT BLADE, ANGLE BALDE, U-BLADE,ROPS CABIN, CANOPY, 3-SHANK RIPPER, AIR CONDITIONER, 510mm TRACK SHOES, 610mm TRACK SHOES

Specifications of 200hp bulldozer

BULLDOZER

200

AWARDED THE ISO9001:2000 SYSTEM CERTIFICATE

SPECIFICATION

WORK EQUIPMENT

Specification/Blade type Straight-tilt Angle U-Blade

Blade type Straight-tilt Angle U-Blade

Operating Weight (kg) 18800 19000 19200

Blade Capacity (m3) 4.5 4.3 8.6

Operating Weight (kg) 400 400 400

Blade Width X Height(mm) 3416×1149/3970×1050/4064×1386

Min.Turning Radius (m) 3.3 3.3 3.3

Max.Lift (mm) 1124 1250 1250

Ground Pressure (MPa) 0.069 0.070 0.071

Max.Depth (mm) 584 545 545

Track Gauge (mm) 1880 1880 1880

Max.tilt Adjustment (mm) ≥860 ≥400 ≥400

Max. Pulling Force (KN) 147.2 147.2 147.2

Pitch Adjustment ( ° ) 55 55 55

Grade Ability (°) 30 30 30

Capability(m3/H)(Theoretical value 40m) 297.4 /297.4/297.4

TRAVEL SPEED

Weight Of Blade (kg) 2450 2550 2650

1st 2nd 3rd

COOLANT AND LUBRICANT CAPACITY

Forward (km) 0~3.9 0~6.8 0~10.9

Fuel Tank Capacity (L).....................................................................320

Reverse (km) 0~5.0 0~8.6 0~13.7

Hydraulic Tank Capacity (L).............................................................108

ENGINE

Engine oil Capacity (L).......................................................................45

Model & Type Cummins NT855-C280S10/ Shangchai SC11CB200G2B1/ Weichai WD10G200E25, 6-cylinder, in-line, vertical. water-cooled, 4-stroke-cycle, turbo-charged, over valve directs injection

Torque Converter ,Transmission, Bevel Gear., Steering Clutch Capacity (L)...................................................................................122

Rated Revolution (rpm) ........................................................... 1850

Final Drive Capacity (L) .................................................33(each side)

Flywheel Horsepower (HP) ........................................................... 200

RIPPER(OPTIONAL)

Cummins:6-139.7X 152.4

3-ShankRipper:

Cylinder Number-BoreX Stroke (mm) Shangchai:6-120.6X 152.4

Max.Digging Depth (mm)...............................................................572

Weichai:6-126X 130

Max.Lift(mm)..................................................................................702

Piston Displacement (L) ..... Cummins:14 Shangchai:10.5 Weichai:9.73

Shank Of Distance (mm) .................................................................950

Min. Fuel Consumption (g/kW.h) Shangchai:220
Weichai:218

Weight (kg)......................................................................................1700

Max.Torque (Nm/rpm) Shangchai:870/1200
Weichai: 920/1100

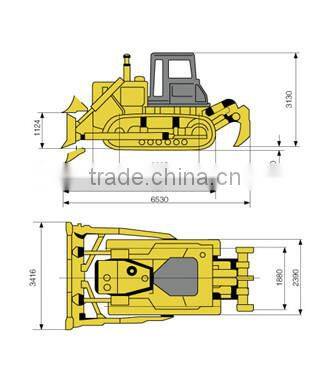

OVERALL DIMENSIONS

Starting Method........................................Starting motor 24V 7.5kW

Straight-tilt Blade Dimensions

POWER TRANSMISSION SYSTEM

Note: Materials and specifications are subject to change without notice.

Torque Converter ............................ 3-element,1-stage,1-phase

Transmission Planetary gearing, hand-manipulated, hydraulic shift, forced lubrication,3 forward and 3 reverse speeds

Bevel Gear.........Spiral bevel gear, splash lubrication, single-stage speed reduction

Steering Clutch................................. Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control

Steering Brake ......Wet, band type, pedal hydraulic booster, with parking brakes

Final Drive .............Double reduction of spur gear, splash lubrication

HYDRAULIC SYSTEM

Pump Type............................................ Gear pump 07441-67503

Working Pressure (MPa).................................................................13.7

System Discharge (L/min)…..........250(at revolution of 1850rpm)

Working Cylinder type...........................Double-acting piston type

Working Cylinder Lift Number-BoreXRodXStroke (mm).............. 2-110X65X1026

Working Cylinder Tilt BoreXRodXStroke (mm).........160X70X140

UNDERCARRIAGE SYSTEM

Type ................ Swing type of sprayed beam, suspended structure of equalizer bar

Carrier Rollers............................................................2(each side)

Track Rollers.........7/each side (4-single flange, 3-double flange)

Track Type............................. Sealed, assembled single- grouser

Number Of Track Shoes............................................... 39(each side)

Width Of Track Shoes (mm) .......................................................... 510

Pitch (mm) .................................................................................... 203.2

Length Of Track 0n Ground (mm)...............................................2635

Our Services

FAQ

For more information about the 160hp to 320hp bulldozer for sale, please contact with us as below
