Good price protection wire making machine made in china

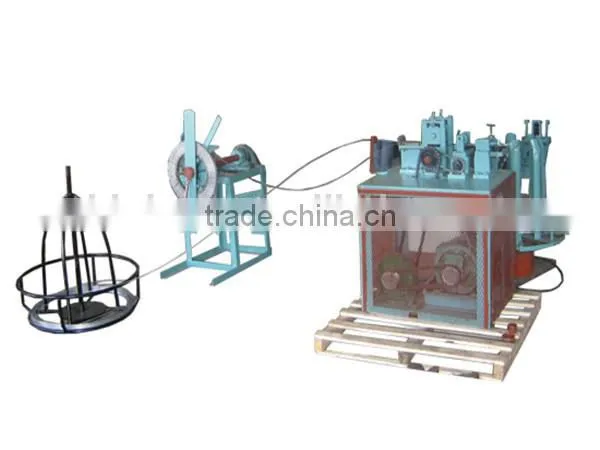

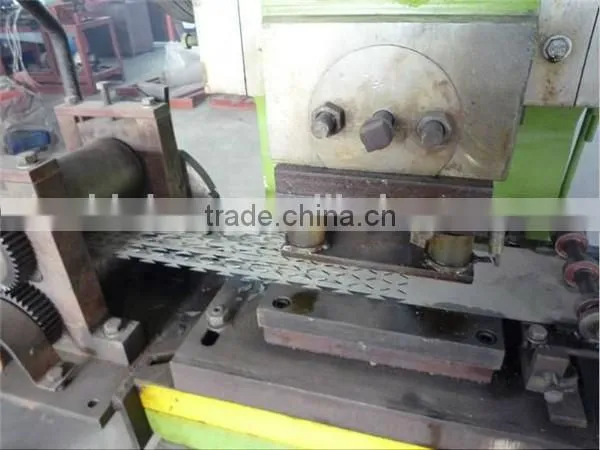

Razor barbed wire machine consists of razor strip making machine and coil machine. Razor strip making machine cuts steel strip into different razor shapes according to different moulds. Compared with the mould of one strip, the popular mould of 5 or 9 strips saves time, raw materials and cost. The mould of 5 strips saves 20% raw materials. Coil machine is used to wrap razor strip up onto the steel wire and wind up the finished products into rolls.
Advantages of Good price protection wire making machine made in china
easy operation,
high efficiency,
easy maintenance and material saving.
Application of Good price protection wire making machine made in china
Razor barbed wire is extensively used for security isolation of military facilities, communication stations, power distribution stations, border prisons, landfill, community protection, schools, factories, farms, etc.
Technical parameter of professional razor barbed wire machine manufacture

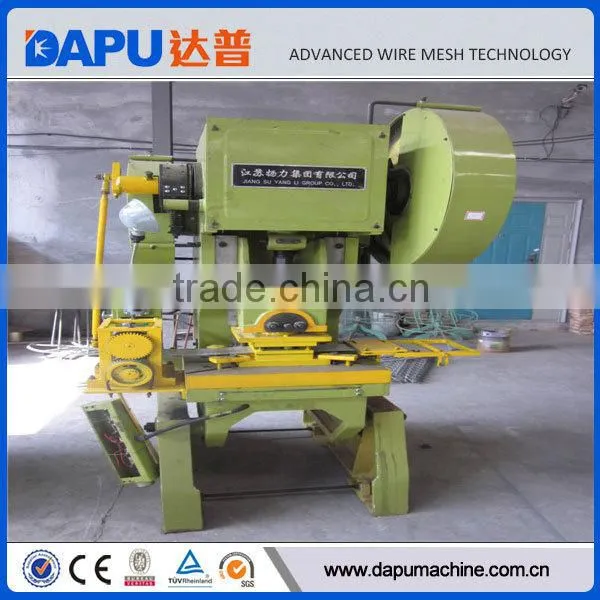

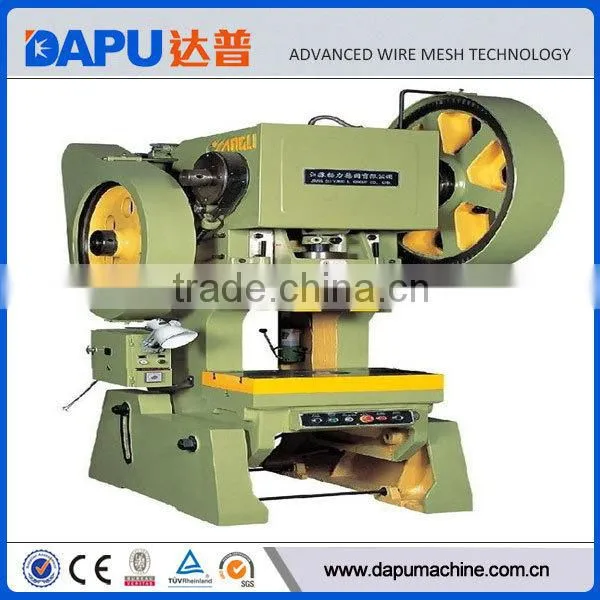

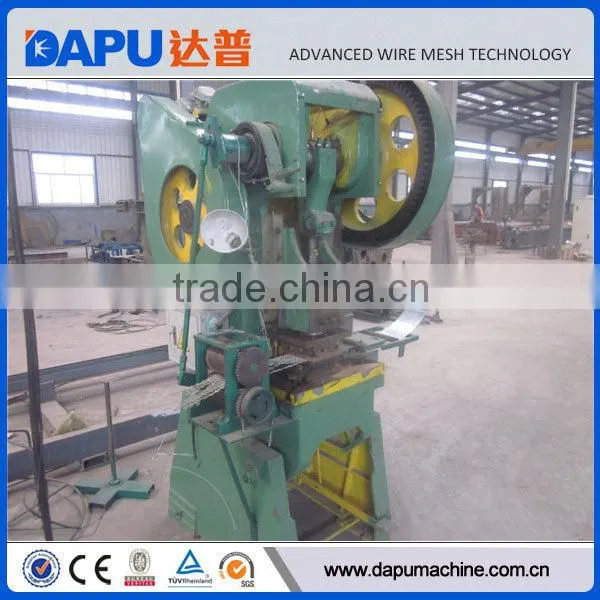

Punching machine
Model |
Nine strip |
Voltage |
380V, 50Hz or client’s required voltage |
Power |
2.2kw |
Producing speed |
220-280m/h |
Thickness |
0.5±0.05mm |
Pressure |
40T |
Weight |
2200Kg |
Dimension |
1100mm×1000mm×2000mm |

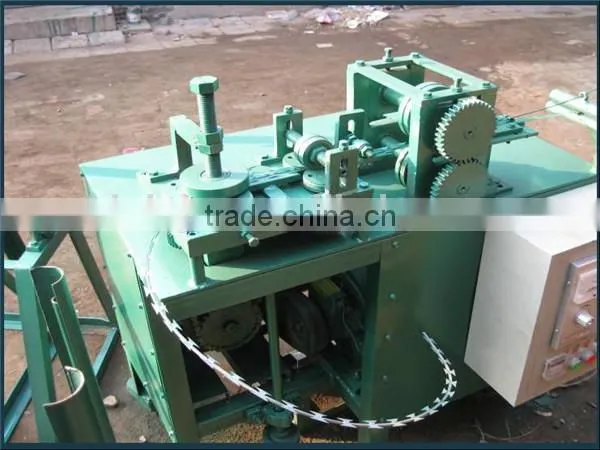

Coiling machine
Voltage |
380V, 50Hz,or client’s required voltage |
Power |
1.5kw |
Producing speed |
80Kg/h |
Wire diameter |
2.5mm |
Weight |
300Kg |
Dimension |
1100mm×750mm×1200mm |
Mould type
Mould type |
Barb Length |
Barb width |
Barb spacing |
R1 |
12±1mm |
13±1mm |
26±1mm |
R2 |
12±1mm |
15±1mm |
26±1mm |
R3 |
18±1mm |
15±1mm |
33±1mm |
R4 |
22±1mm |
15±1mm |
34±1mm |
R5 |
28±1mm |
15±1mm |
34±1mm |
R6 |
30±1mm |
18±1mm |
34±1mm |
R7 |
60±1mm |
32±1mm |
96±1mm |
R8 |
65±1mm |
21±1mm |
100±1mm |

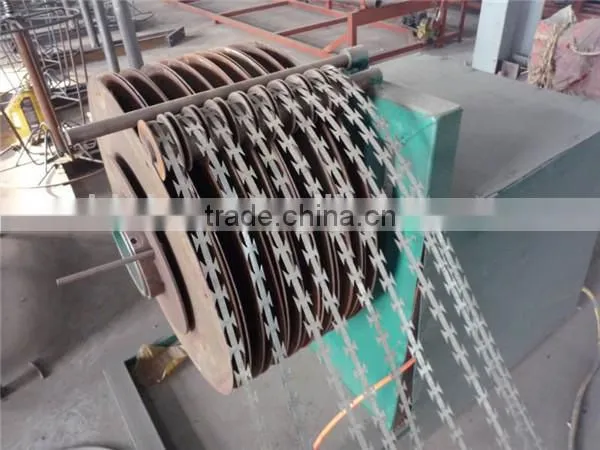

Processing flow of professional razor barbed wire machine manufacture

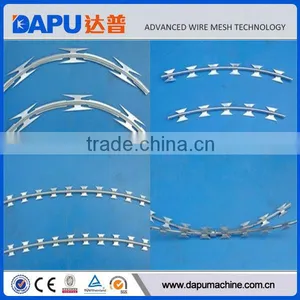

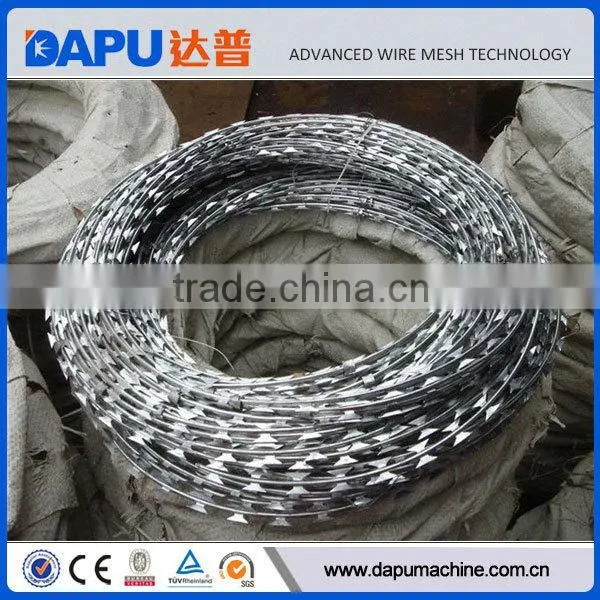

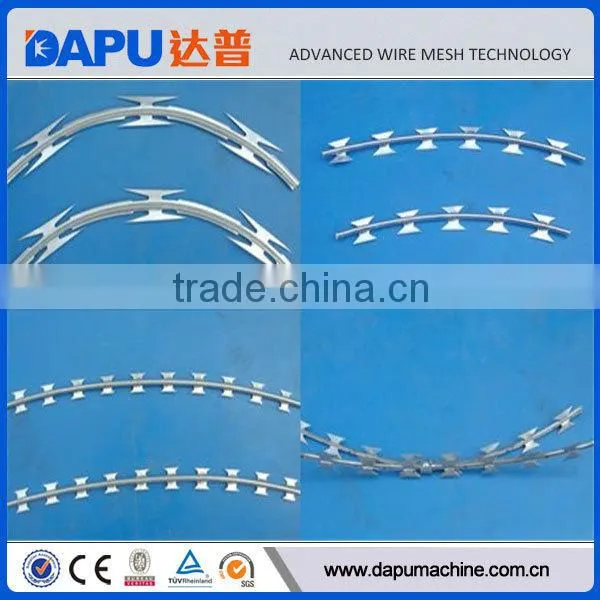

Finished products of professional razor barbed wire machine manufacture
Accessories of professional razor barbed wire machine manufacture

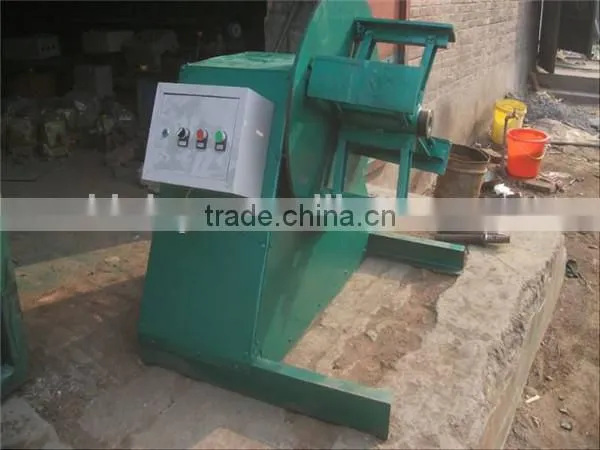

Coiling Machine Uncoiling Machine
Moulds and other parts
- Predecessor-Anping Feilong Wire Mesh Machine Factory in1999;
- ISO9001: 2000 Certificate in 2006;
- Win import & export right from government in 2008;
- CE Certificate in 2009;
- Approved with inspection by Bureau of Quality Supervision &Inspection & Quarantine of Hebei in 2009;
- Awarded as advanced Enterprise for Project Construction, Enterprise with Prominent Establishment for Science and Technology progress in 2010.
1. Guarantee period: 12 months (but no longer than 18 months since departure from Xingang Port)
2. Our engineers are available to install and maintain machine overseas.
3. Customized machine.
4. OEM support.
5. Fast delivery.
6. Moderate price.
7. Door to Door service or 24-hour email service.
Our company specializes in Wire Mesh Weaving Machine and Wire Mesh Welding Machine since 1999, with best quality, first-rate service and competitive price. We can customize all kinds of machines according to your requirement and provide installation and after-sale service.
