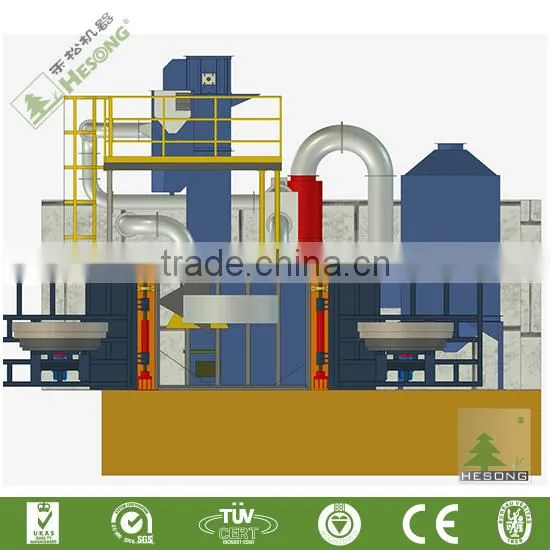

Swing Table Type Airless Shot Blasting Machine
Product Description:

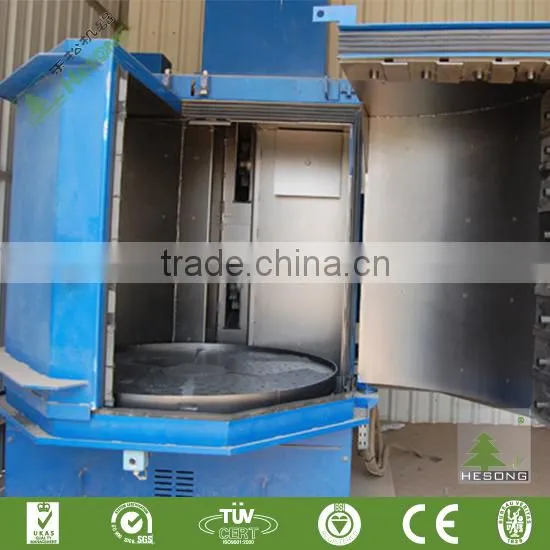

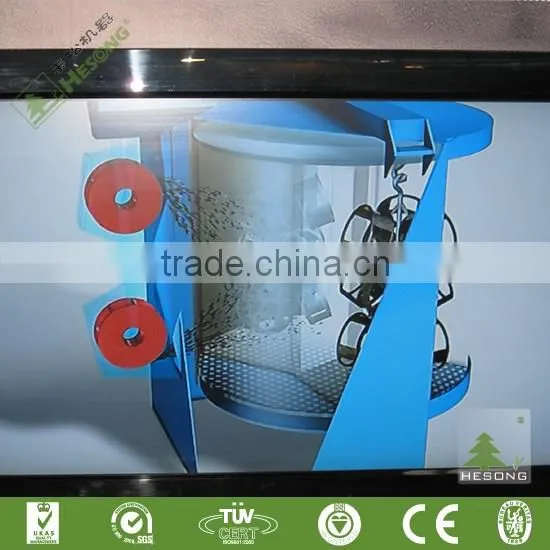

Swing Table Type Airless Shot Blasting Machine is very simple and economical type to run. Work pieces are placed on the table which rotates, exposing all visible surfaces to the blast wheel. It is suitable for bulky and heavy and large work pieces, and widely used in casting industry, forging machinery and iron industry.It can remove the welding spatters and oxide layers from the surface consequently obtain a metallic luster with a fine and homogeneous finish. And also can eliminate weld stress, improve the fatigue resistance and increase the adhesion of paint film. And equipped with air blast machine to detailed blast, achieve complete blasting.
Technical Parameter
MODE |
EFFECTIVE VOLUNE |
FEEDING AMOUNT |
TOTAL BLASTING CAPACITY |
TOTAL POWER |
ZJ012 |
1350*560MM |
1200MM/400KG |
7.5KW/180KG*2 |
22KW |
ZJ025 |
2654*560MM |
2500MM/1000KG |
11KW/240KG*2 |
39.2KW |
ZJ015S |
1800*750MM |
1500MM/650KG |
15KW/270KG*2 |
42.2KW |
ZJ044J/E/F |
1700*1050MM |
350MM/200KG |
15KW/270KG*2 |
47.4KW |
QZ365/QQZ765 |
2700*1300MM |
2500MM/5T |
18.5KW/300KG*4 |
101.5KW |
QZ3630/QZ7630 |
3300*1550MM |
3000MM/30T |
18.5KW/300KG*4 |
117.4KW |
QZ3650/QZ7650 |
5000*2245MM |
4850MM/50T |
22KW/360KG*5 |
152.3KW |
QZ7680-QZ76510 |
Non-calibration |
Non-calibration |
22KW/720KG*6 |
According to the technical requirements |
Product Main Features
Swing Table Type Airless Shot Blasting Machine
is suitable for surface cleaning and strengthening of steel structural parts and casting ,and is especially suitable for surface rust removal and cleaning of surface scale of thick billet steel.
Turntable Shot Blasting Machine is widely used in foundry ,forging,mechanical and steel industries.
Turntable Shot Blasting Machine is suitable for surface rust removal and strengthen of engine connecting bar, gear, shell cover wall, clutch friction part.
Payment term:30% as prepayment, 70% balance against the copy of B/L.
Why choose us
1.40 years professional experience.
2.Huge the industry's top team of engineers
3.Scientific research, development, production, management integration
4.Adopt 3 d CAD system and modern 3D manufacturing technology
5.ISO9001,CE certificate
6.Undertake large-scale ono-standard equipment.
7.OEM&ODM can acceptable
8.Ensure the quality of overseas after-sales service
9.Dinglin is your Win-win partner
Qingdao Qingzhu Foundry Machine Co., Ltd is a professional manufacturer, which is located in Qingdao,China. It is the largest production and export base for foundry machinery in China. It have three production series: Shot blasting machine, sand blasting room / booth , Foundry molding machine and sand core shooter machines.
Our machines were exported to France, Spain ,Russia, Mexico, Japan,korean, Pakistan,Vietnam,Thailand,Southeast Asia and other countries , so hope you can trust our professional technology and strength !
Factory
Workshop
Spare Parts
Our Services
- Reply your inquiry in 24 working hours.
- Experienced staffs answer all your questions in fluent English.
- Customized design is available. UEM&UBM are welcomed.
- Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
- Special discount and protection of sales are provided to our distributor.
- Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 11 years, competitive with good quantity.
- Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges are usually paid by your side, the charges will be rebounded when we have formal order.
As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
Welcome customers to visit our factory from all directions
