OUR PRODUCTS :
Environmental protection durable, quality and cheap, safe and efficient 100%. after sale service guarantee!
Product introduction :
Q32 series Rubber Belt Type Shot blast Machine
Q32 series Rubber Belt Type Shot blast Machine is used for surface cleaning, rust removing and surface intensification of various middle and small-size casting, forging and workpieces. The Rubber Belt Type Shot blast Machine is suitable for different production scale and can also be used in conjunction with the continuous conveyor components to form the production of clean-up lines.
Q32 series Rubber Belt Type Shot blast Machine has the advantages of advanced design, reasonable structure, little energy consumption and high efficiency. It is the ideal blast cleaning equipment for machines.
Q32 series Rubber Belt Type Shot blast Machine basic parameters
Parameter |
Unit |
Q326 |
Q3210 |
QR3210 |
Productivity |
T/H |
0.6-1.2 |
3-5 |
1.5-2.5 |
Loading Weight |
kg |
200 |
800 |
600 |
Maximum Weight |
kg |
10 |
15 |
30 |
Diameter of the Roller |
mm |
650 |
1000 |
1000 |
Available Capacity |
m³ |
0.15 |
0.4 |
0.3 |
Pill Impelling Volume |
kg/min |
100 |
250 |
250 |
Power Air Volume |
m³/h |
2200 |
6000 |
5000 |
Power Dissipation |
kw |
12.6 |
32.6 |
24.3 |
Outline Dimensions |
mm |
3681*1650*5800 |
3644*2926*5856 |
3972*2600*4768 |
Machine Total Weight |
kg |
2340 |
5843 |
7400 |

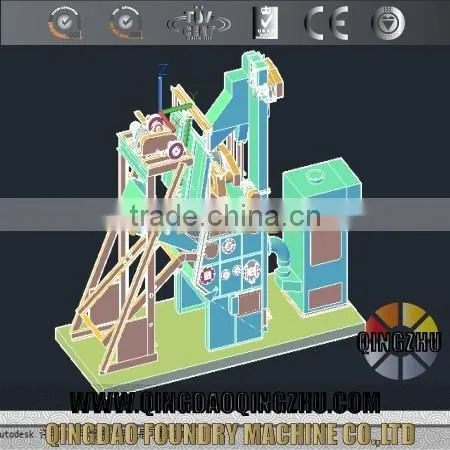

Q32 series Rubber Belt Type Shot blast Machine typical diagram
GN Series Of Rubber type shot blasting machine:
The machine adopts endless rubber apron to form a special barrel,to make the work pieces tumber continuously during shot blasting process.It is mainly used in forging work pieces and metal work pieces.
GN Mass-produced components,which can be tumbled,are ideal for processing in tumble belt batch maxhines,no matter what materials they are made form.Anything form small,delicate plastic parts to large,forged components,can be finished to the highest standard.
There are pictures of rubber type shot blasting machine about 3GN,8GN, 8GN-5R , 15GN .
| Mode | Effective volume | Feeding amount | Total Blasting Capacity | Total Power |
| 3GN | 705*800mm | 220Kg/12Kg | 7.5Kw/180Kg | 13.1Kw |
| 6GN-5R | 857*940mm | 363Kg/23Kg | 11Kw/240Kg | 19.2Kw |
| 8GN | 1100*1050mm | 700Kg/35Kg | 15Kw/270Kg | 23.2Kw |
| 8GN-5R | 1100*1050mm | 750Kg/35Kg | 15Kw/270Kg | 27.4Kw |
| 12GN | 1150*1050mm | 850Kg/80Kg | 18.5Kw/300Kg | 31.5Kw |
| 12GN-5R | 1150*1050mm | 750Kg/80Kg | 18.5Kw/300Kg | 34.4Kw |
| 15GN | 1292*1245mm | 1362Kg/227Kg | 22Kw/360Kg | 40.3Kw |
| 28GN | 1445*1778mm | 3500Kg/363Kg | 22Kw/720Kg |
73.5Kw |

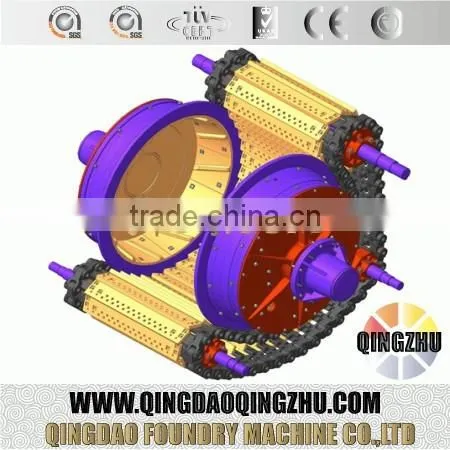

Principle diagram of GN series crawler shot blasting machine

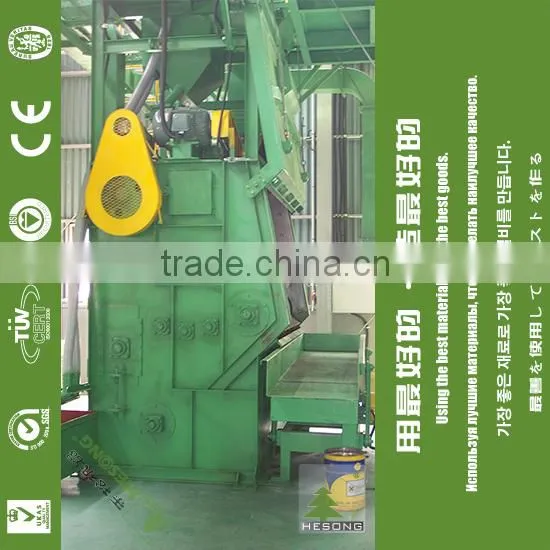

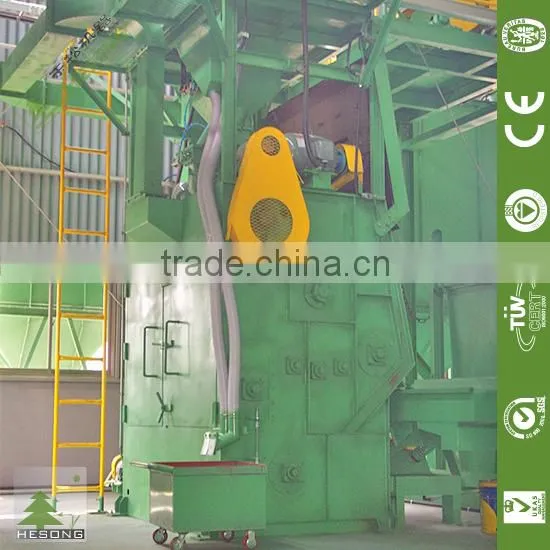

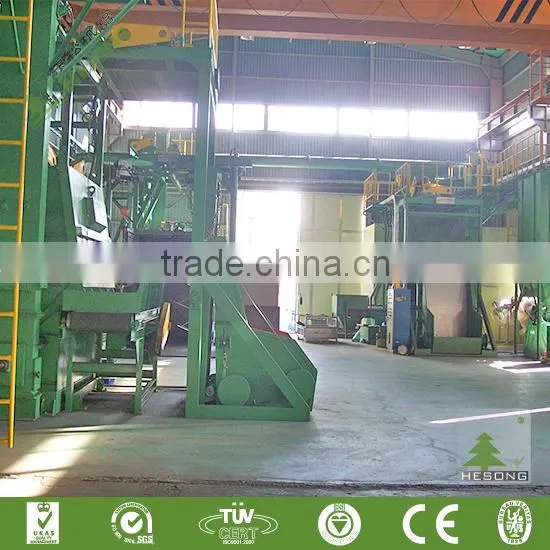

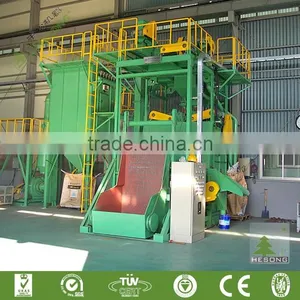

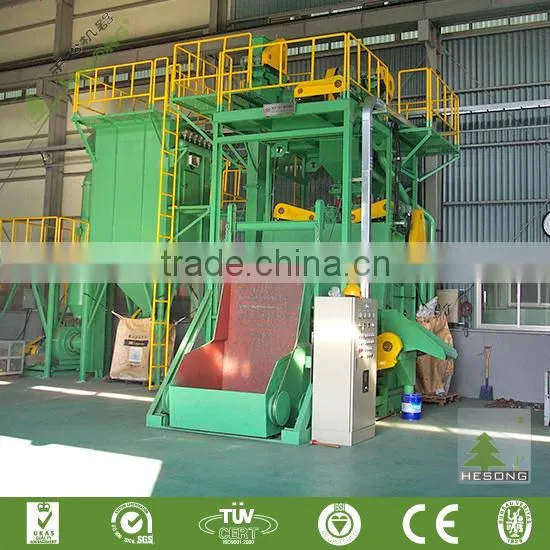

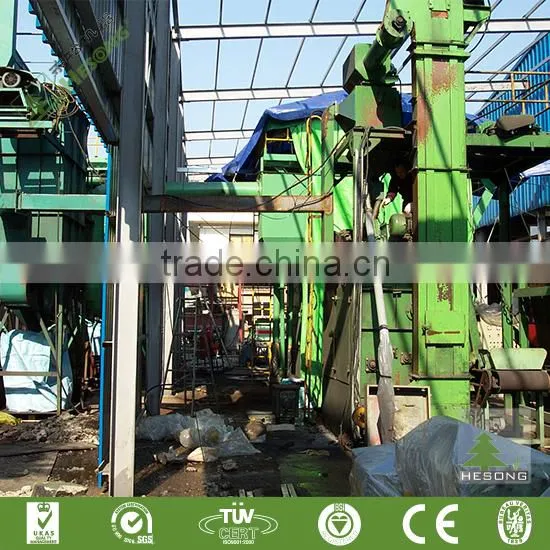

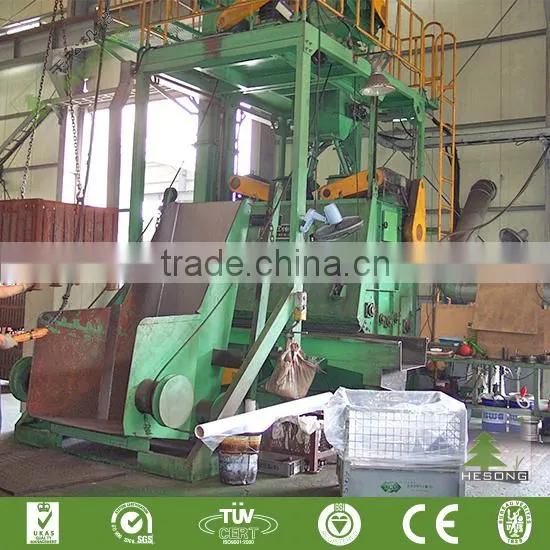

These pictures are rubbber shot blasting machine in our company :
Shot blasting machine is how to work
As long as you told me the following questions, we will create the shot blasting machine you need :
1.Properties and material of the workpiece.
2. The size of the workpiece.
3. The requirements of the workpiece efficiency.
4. Previously used the shot blasting machine.
5. The number of cleaning workpiece.
This is the shipment of the goods, we are according to customers' requirements to the packing and shipping of the goods, if you have special request we will try our best to satisfy.
Please believe the strength of our company:

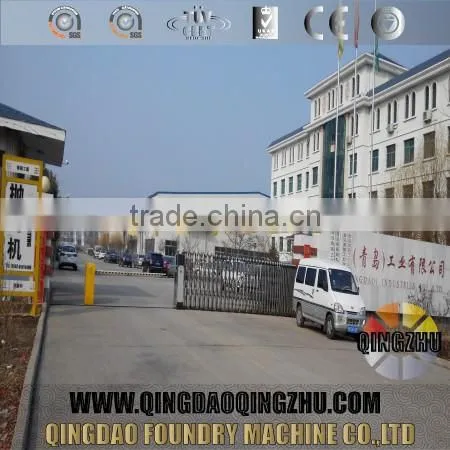

Qingdao Foundry Machine Co., Ltd. is a specialized company in design and production of: Main production dust collector, dust collector, single bag dust collector, filter bag and other various dedusting accessories products
Company technical cengcengbaguan, using computer testing equipment to ensure each product qualified, unqualified products put an end to enter the market of environmental protection, the company also recognized by the vast number of old and new customers, products sold at home and abroad!
The company products are widely used in coal-fired power plants, metallurgy, mining, building materials, casting, chemical machinery, food, tobacco, asphalt cement (including biological boiler), mechanical processing, boiler etc, and realizes the design - production - installation and debugging, technical training services.
1.Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & Molding Machine & Core Shooting Machine for more than 40 years, competitive with good quality.
7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
This is our company's other products :
Steel pretreatment line
H-beam shot blast machine
Steel plate shot blasting machine
Bar/wire/rod descaling machine
Apron type shot blasting machine
Barrel type shot blasting machine
Hanger type shot blasting machine
Tumblast shot blasting machine
Trolley type shot blasting machine
Steel Pipe Shot Blasting Machine
steel structure shot blasting machine
Horizontal Movable Shot Blast Machine
Ground portable sand blasting machine
Locomotive Shot blast cleaning machine
Roller Conveyor Type Shot-Blasting Machine
Spring, connecting rod shot blasting machine
Table blast (rotary table) shot blasting machine
Metal mesh belt / rubber belt pass through shot blasting machine.
