96mm barb spacing razor tape wire machine manufacturer
- 30 Set / Sets per Month
- Xingang Port China
- T/T
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- DOING supply photovoltaic solar panels recycling machine
- four-axis welding machine for commercial sink panel and bowl
- Double Platform Stainless Steel Kitchen Equipment Polishing Machine
- Photovoltaic solar panels recycling plant
- Solar panel recycling machine with high efficiency
Product Details
Place of Origin: | Hebei, China | Brand Name: | DAPU | Model Number: | Nine strips |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
96mm barb spacing razor tape wire machine manufacturer
Advantages
saves time, 20% raw materials and cost.
easy operation,
high efficiency,
easy maintenance and material saving.
Structure: razor strip making machine, coiling machine
Function:
Razor strip making machine cuts steel strip into different razor shapes according to different moulds.
Coil machine wraps razor strip up onto the steel wire and wind up the finished products into rolls.
Application
Razor barbed wire is extensively used for security isolation of military facilities, communication stations, power distribution stations, border prisons, landfill, community protection, schools, factories, farms, etc.
Technical parameter
Punching machine
Model | Five strip |
Voltage | 380V, 50Hz or client’s required voltage |
Power | 2.2kw |
Producing speed | 220-280m/h |
Thickness | 0.5±0.05mm |
Pressure | 25T |
Weight | 1500Kg |
Dimension | 1200mm×1000mm×1900mm |
Coiling machine
Voltage | 380V, 50Hz,or client’s required voltage |
Power | 1.5kw |
Producing speed | 80Kg/h |
Wire diameter | 2.5mm |
Weight | 300Kg |
Dimension | 1100mm×750mm×1200mm |
Mould
Mould type | Barb Length | Barb width | Barb spacing |
R1 | 12±1mm | 13±1mm | 26±1mm |
R2 | 12±1mm | 15±1mm | 26±1mm |
R3 | 18±1mm | 15±1mm | 33±1mm |
R4 | 22±1mm | 15±1mm | 34±1mm |
R5 | 28±1mm | 15±1mm | 34±1mm |
R6 | 30±1mm | 18±1mm | 34±1mm |
R7 | 60±1mm | 32±1mm | 96±1mm |
R8 | 65±1mm | 21±1mm | 100±1mm |

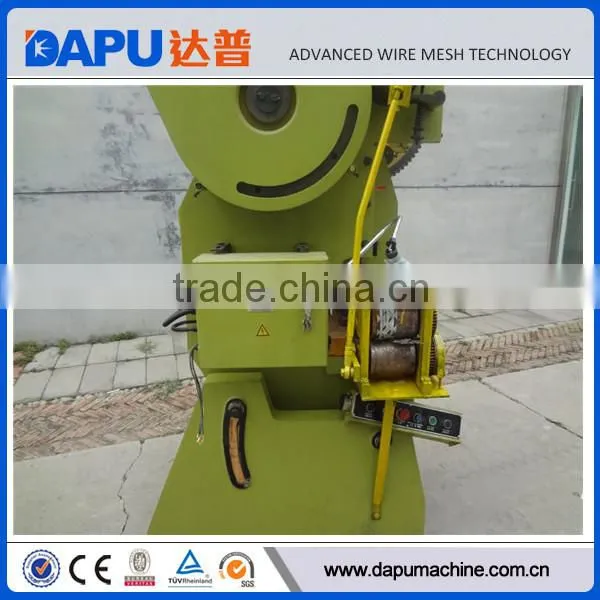

Punching machine

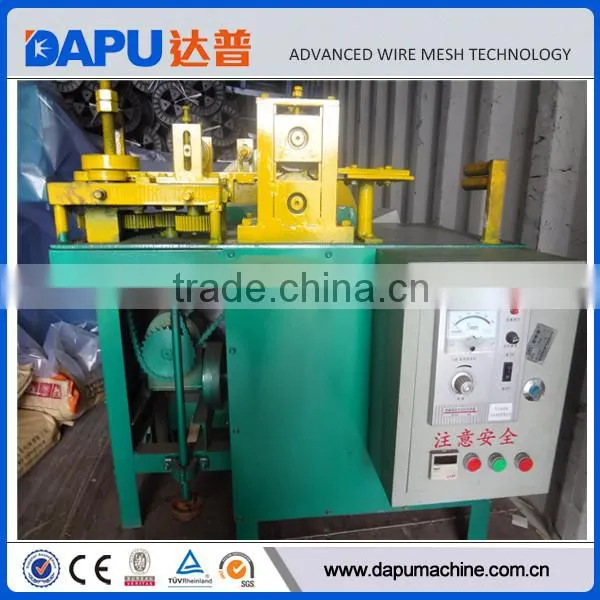

Coiling machine
Decoiler Moulds
Finished products
- Predecessor-Anping Feilong Wire Mesh Machine Factory in1999;
- ISO9001: 2000 Certificate in 2006;
- Win import & export right from government in 2008;
- CE Certificate in 2009;
- Approved with inspection by Bureau of Quality Supervision &Inspection & Quarantine of Hebei in 2009;
- Awarded as advanced Enterprise for Project Construction, Enterprise with Prominent Establishment for Science and Technology progress in 2010.
Product Catelogue
1. Guarantee period: 12 months (but no longer than 18 months since departure from Xingang Port)
2. Our engineers are available to install and maintain machine overseas.
3. Customized machine.
4. OEM support.
5. Fast delivery.
6. Moderate price.
7. Door to Door service or 24-hour email service.
Contact Us:
Please feel free to contact us. We will reply within 6 hours !
We want to know:
1. thickness of sheet
2. razor length
Contact Us
