Passing Through Shotblast Machine For Weld Parts
- 20 Set / Sets per Month
- Qingdao
- T/T Credit Card
- Supports multi-hook customization of Pumingwei hook-type shot blasting machine surface metal rust removal equipment
- tumble rubber belt shot blasting machine for foundry plant crawler shot blaster
- smaller casting parts surface treatment crawler shot blasting machine
- Q326 Q324 Q3210 tumble belt shot blasting machine crawler belt shot blasting machine
- Tumble belt shot blasting machine for nuts and bolts surface treatment
- Tumbler belt shot blasting abrator machine wheel crawler shot blaster
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HESONG |
Model Number: | Q69 series | Feature: | Critical Cleaning / Residue Free, Non-Ionic, Non-Toxic, Non-Ionic, Non-Toxic, Other, Critical Cleaning / Residue Free, Non-Ionic, Non-Toxic, Non-Ionic,Non-Toxic,Rust / Corrosion | Fuel: | Electric |
Certification: | CE, Other, CE, CE, ISO9001, CE,ISO | Use: | Burnishing, Descaling / Stripping, Burnishing, Deflashing, Other, Burnishing, Descaling / Stripping, Burnishing,Deflashing,Descaling | Cleaning Process: | Other, abrasive/grits/sand, steel shot |
Cleaning Type: | Other, shot/sand/grits blasting | Industry Used: | Other, Foundry, forging, mechanical and steel industry | Material: | Other, Metal / Coil, steel plate |
Power(W): | customized, customized | Dimension(L*W*H): | customized | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Passing Through Shotblast Machine For Weld Parts

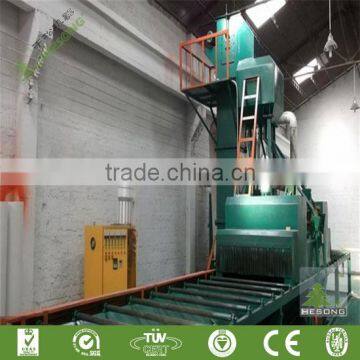

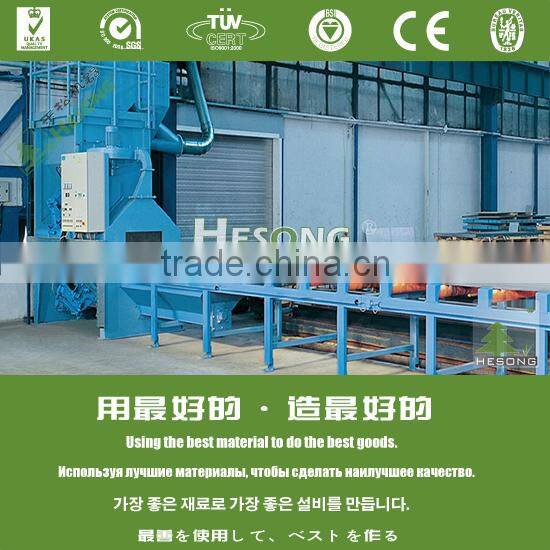

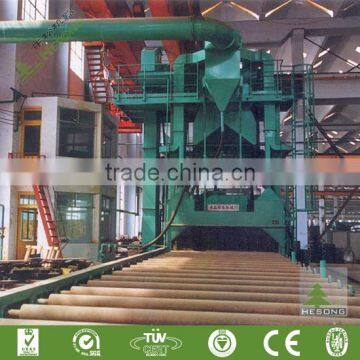

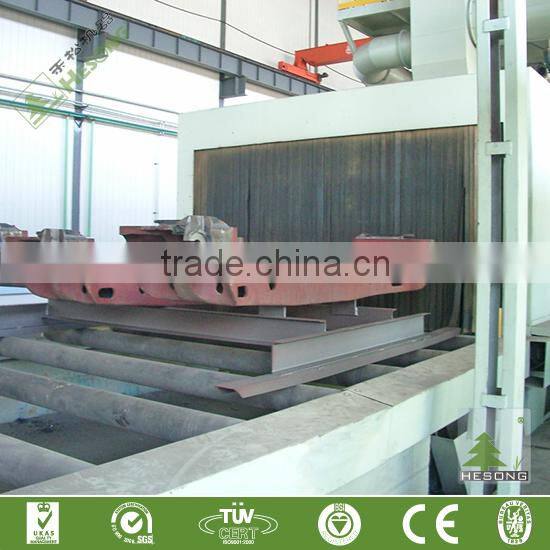

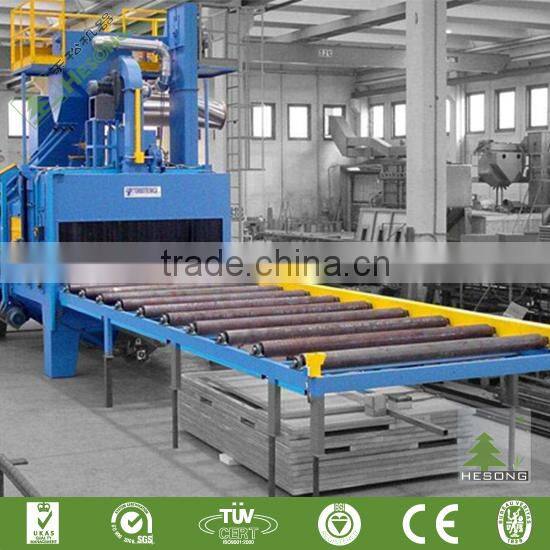

Roller conveyor type structural steel shot blasting machine is a kind of Roller Conveyor type Shot Blasting Machine.
Mainly used in eliminating the stress and descaling of the large I section steel and H section steel. Suitable for the Construction and Bridge Industries.
These special roller conveyor machines for blast cleaning of complex welding constructions where all surfaces are cleaned. For example head- and base-plates, welded ribs and re-enforcements must be de-scaled and de-rusted. And the welding seams must be cleaned.
Technique parameter:
Technology Parameter of Shot Blasting Machine | ||||||||||
Item | QZ1000 | QZ1600 | QZ2000 | QZ2500 | QZ3000 | QZ3500 | QZ4000 | QZ4500 | QZ5000 | |
Size of steel | Length (mm) | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 |
Width(mm) | ≤1000 | ≤1600 | ≤2000 | ≤2500 | ≤3000 | ≤3500 | ≤4000 | ≤4500 | ≤5000 | |
Thickness (mm) | 2-20 | 2-20 | 2-20 | 2-30 | 2-30 | 2-35 | 2-40 | 2-50 | 2-60 | |
Processing speed (m/s) | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | |
Shot blasting rate (kg/min) | 4*250 | 4*250 | 6*250 | 6*250 | 6*360 | 6*360 | 8*360 | 8*360 | 8*490 | |
Thickness of paint (um) | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 |
Note :
According to your requirements,the most suitable machines will be designed for your workpieces please indicate the folloing details.
1.what kind of workpiece will you clean ?
2.The workpiece size,length ,width and height of maximum workpiece?
3.How many workpiecs do you want to clean per day ?
Based on this question,the detailed technical proposals will be sent to you for reference.

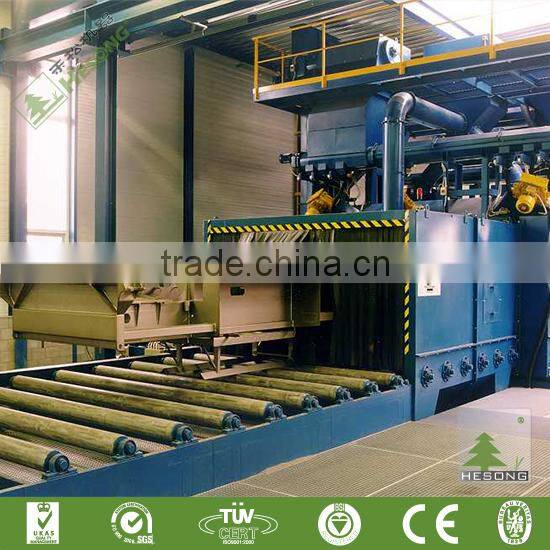

All-around blast cleaning of outer and inner surfaces takes place through two “blast zones”. The first "blast zone" consists of equally spaced blast wheels mounted onto the roof and bottom of the blast cabin – with larger machines there are also blast wheels mounted to the cabin walls. The second "blast zone" of blast wheels is placed at a negative angle relative to the direction of the parts transport. The blast pattern created by these two "blast zones" allows all-around blast cleaning of a vertically placed base-plate.

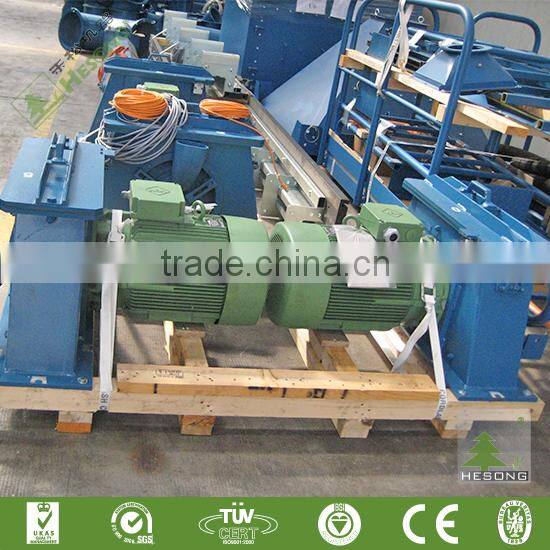

The Key Part Of Shot Blasting Machine Is Wheel Turbine:
Industrial sand blasters:
1.Specially designed for blasting steel plate, sectional steel, beams or structure.
2.Shot blasting machine for steel plate, section steel, beams, bars is designed and produced by adopting the advantages of similar products from both within the country and abroad.
3.The rusting cleaning part (shot blast cleaning) adopts high-efficient blast wheel and full shutter type shot sand separator.
4.The sweeping machine adopts specially made high-strength nylon rolling brush and high-pressure ventilator. The preheating and drying part may adopt various heating methods. The paint spraying part adopts high-pressure airless spraying method.
Shot Blasting Machine is often used for:
Cleaning
Deflashing
Rust and Scale Removal
Anchor Pattern Creation
Peening
Coating Removal
THE PACKING:
Why choose us ?
1. Our company has passed "CE", "ISO9001" and bureau veritas certification .
2. 50 years experience with 20 professional engineers in our Qingdao Foundry Machine Co.,Ltd.
3. So many kinds of foundry machinery ---100 kinds of shot / sand blasting machines and 80 kinds of casting machines.
4. Considerate after-sale service , Technial Assistance and provide installing ,debugging and training on site
5. The company has its own foreign trade marketing team Industrial Corporation, first - class service standards for all clients.
Our certification
We specialize in the design and manufacture of:
Shot Blasting Machine
Sand Blasting Machine and manual sandblasting pot
Foundry sand mixer
Core shooter
Jolt Squeeze Molding Machine
Sand preparation line for foundry (Clay and resin sand )
Automatic Moulding Machine(line)
In order to give you the suitable machine , pls provide below message for us :
1. What is your workpiece and the material and the shape ?
2.The Max. Length/Width/Height of the workpiece and the MAX./MIN.weight of your workpiece ?
3.The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
4. The power supply you need( Our China :380V, 3PH, 50HZ)
5. Better to send us the workpiece photo or drawing.
Welcome to contact us or visit our company.
Our customer:
1). Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2). Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3). Q: How does your factory do regarding quality control?
A: Quality is priority. MACTEC People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
4). Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components
5). Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. MACTEC is ALIBAB’s Gold supplier with BV assessment. If you check with ALIBABA, you will see that we have never got any complaint from our customers.
