H Beam Shot Blasting Machine
Wheel turbine is the key of Shot blasting machines
Main components of H Beam Shot Blasting Machine:
1. Inlet roller
2. Pre-heating chamber
3. Shot blasting chamber
4. Sweeping chamber
5. Abrasive/ shot balls circulation system
6. Shot cycle purifying system
7. Shot dust collecting system
8. Painting chamber
9. Drying chamber
10.Fume filter and harmful gas purifying device
11.Outlet roller
12.Electric control system
Summary of H Beam Shot Blasting Machine :
1.sand blasting machine with roller conveyor
2.automatic shot blasting machine
3.suitable for steel plate,beam,fabrication more
Features of H Beam Shot Blasting Machine :
1. Roller Conveyor Type Shot Blasting Machine is designed for the large, middle and small size of the steel products.
2.Using the highest efficiency blast wheels and adopt Multi-dimensional blasting, high-level and all- directional clean.
3. Cleaning away the rusting layer, oxidation layer and other dirty things from steel surface
4.To make surface achieve a bright and clean surface and improve the adhesion force of painting to surface and improve the anti-fatigue force and anti-rust capacity.

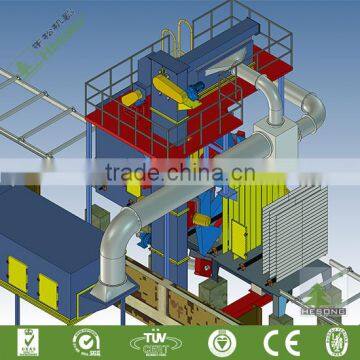

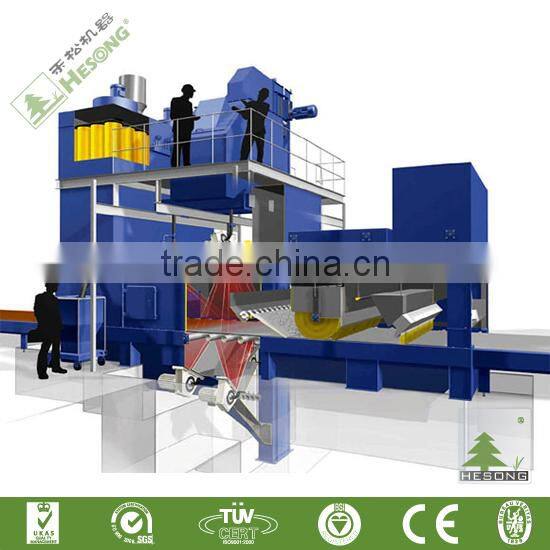

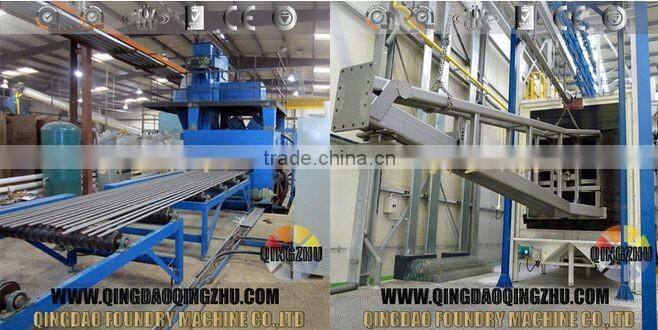

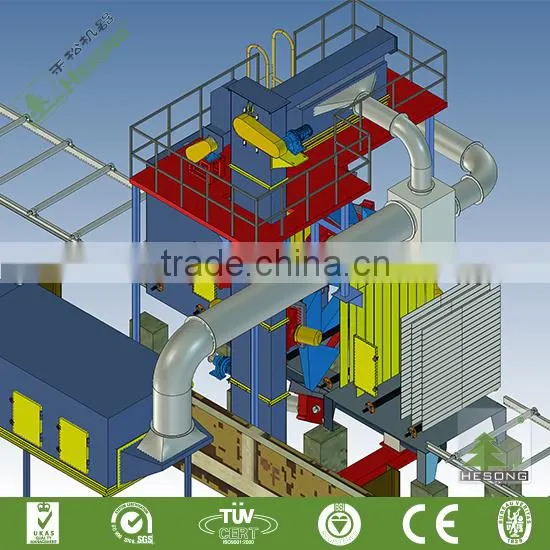

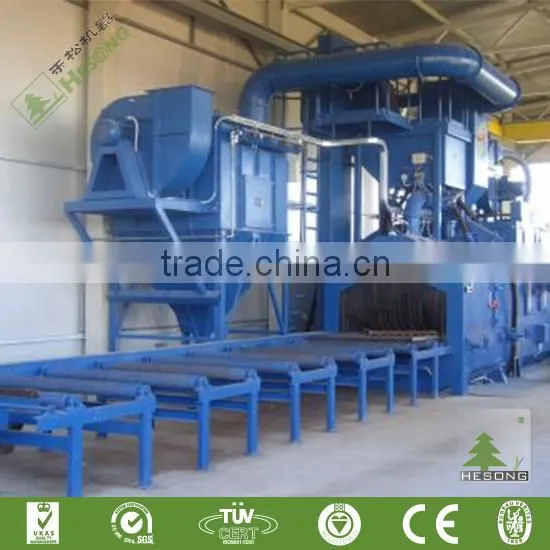

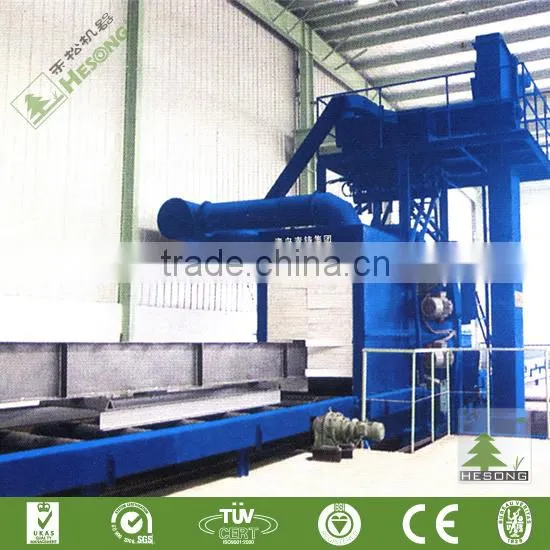

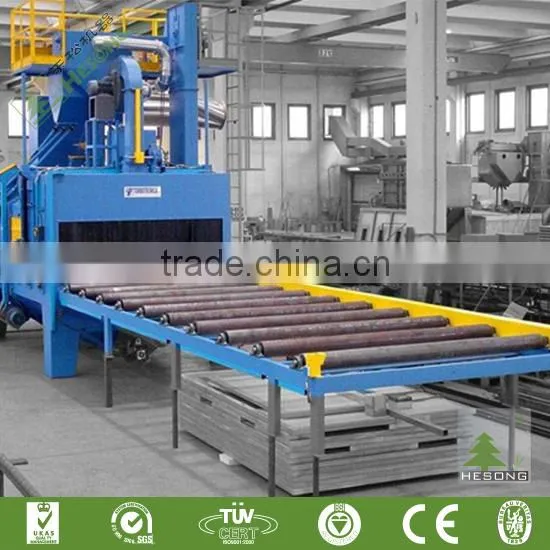

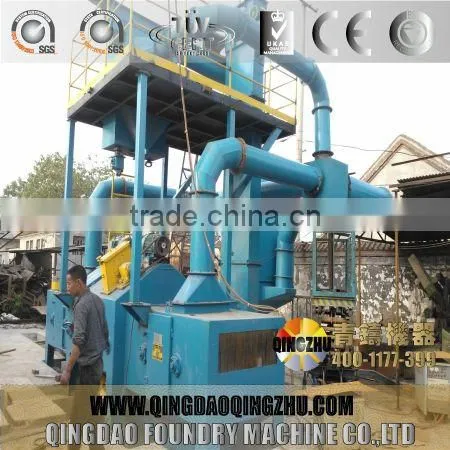

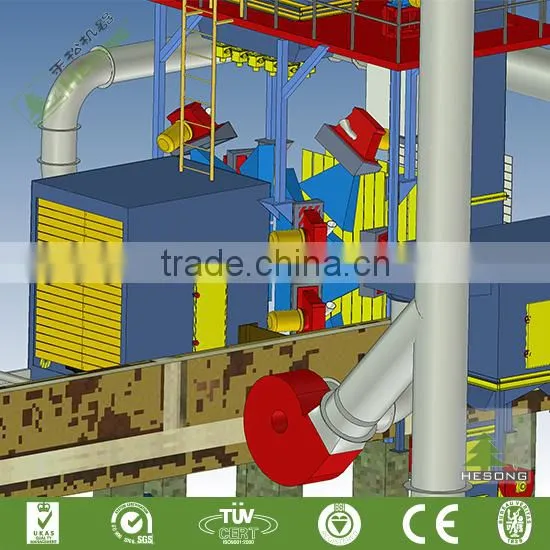

Roller Conveyor Type Shot Blasting Machine pictures:
Technical parameter of H Beam Shot Blasting Machine | |||||||||
No. | Model | Q698 | Q6912 | Q6915 | Q6920 | Q6925 | Q6930 | Q6940 | |
1 | Width of workpiece | mm | 800 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
2 | Size of inlet opening | mm | 800* | 1200* | 1500* | 2000* | 2500*800 | 3000*800 | 4000*400 |
3 | Length of workpiece | mm | 1200- | 1200- | 1200- | 1200- | 3000-12000 | 2400-12000 | 4500-18000 |
4 | Roller speed | m/min | 0.5-4 | 0.5-4 | 0.5-5 | 0.5-4 | 0.5-4.5 | 0.5-4 | 2-8 |
5 | Thickness of plate | mm | 3-60 | 3-60 | 1.5-60 | 3-60 | 3-60 | 3-110 | 4.5-110 |
6 | Abrasive flow rate | kg/min | 8*120 | 4*250 | 4*250 | 6*250 | 6*250 | 6*360 | 8*360 |
7 | Abrasive initial fill | kg | 4000 | 4000 | 4000 | 4500 | 4500 | 8000 | 11000 |
8 | Adjusting height of rolling brush | mm | 400 | 200 | 350 | 450 | 600 | 850 | 900 |
9 | Ventilation capacity | m3/h | 22000 | 17560 | 19000 | 19550 | 27758 | 28050 | 38000 |
10 | Total power of shot blast machine | kw | 90 | 78.3 | 113.6 | 156.6 | 224.55 | 204.8 | 293.6 |
Shot Blasting Machine is often used for:
Cleaning
Deflashing
Rust and Scale Removal
Anchor Pattern Creation
Peening
Coating Removal

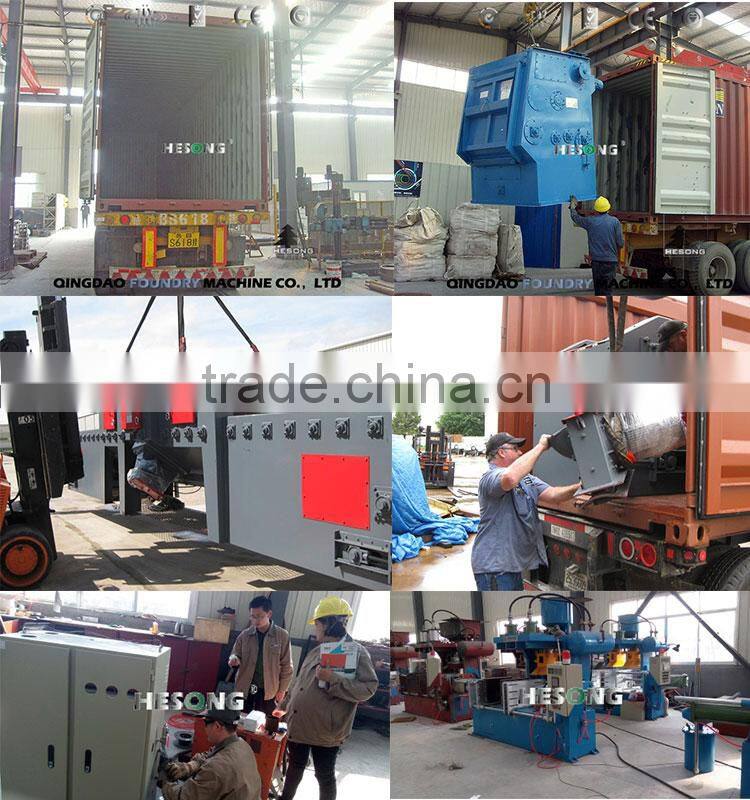

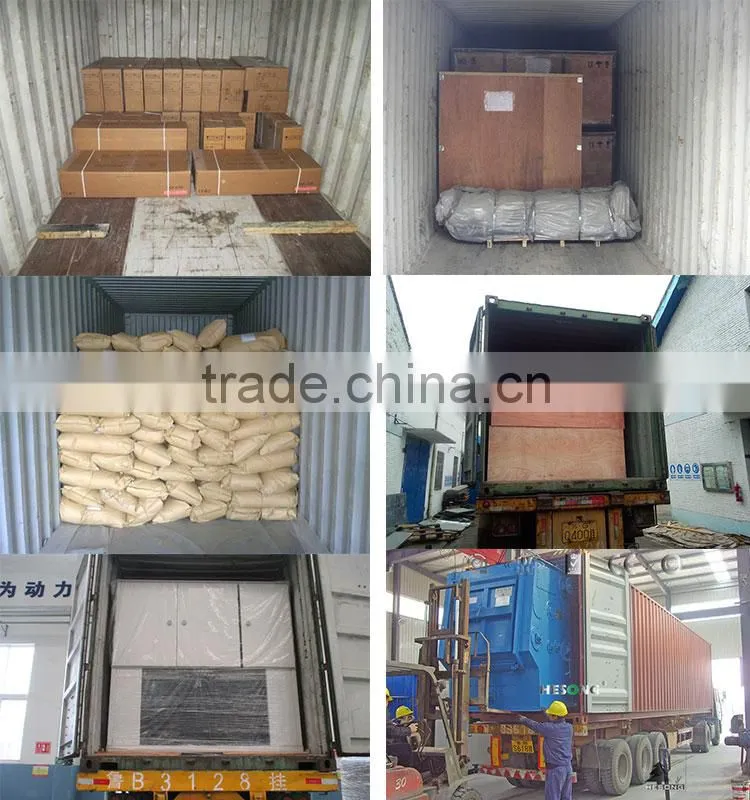

Small-sized machine will be pakced by wooden box
Medium-sized machine will be no bulk and load into container directly
Large-sized machine will be load into special container ( skeletal container or open top, flat and platform containers)

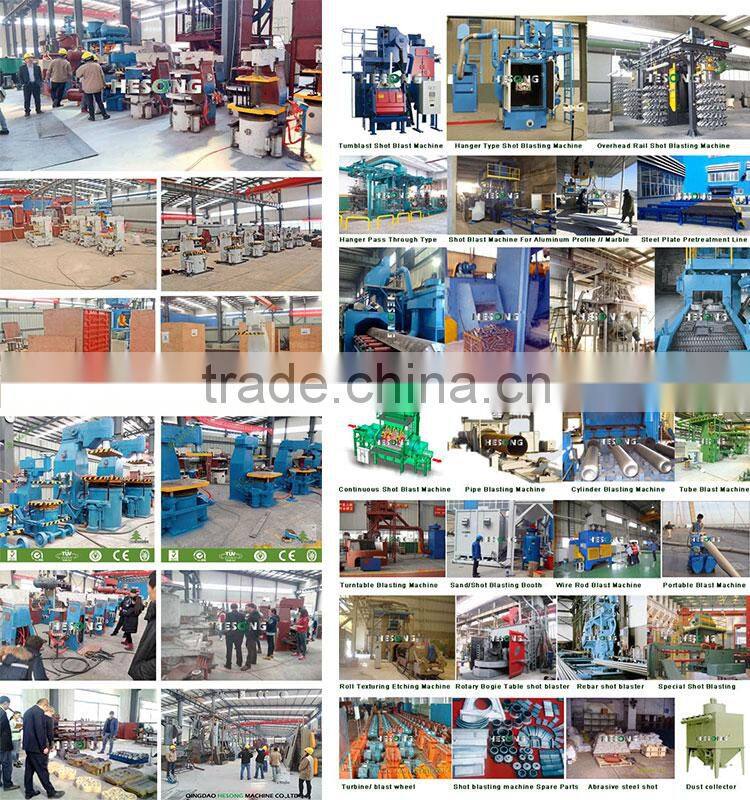

There are so many kinds of Shot blasting machines and other foundry machinery in our factory !
Tumblast Shot Blasting Machines Rotary Barrel Shot Blasting Machines, Continuous Flow Shot Blasting Machines |
Overhead Rail Shot Blasting Machines Hanger Pass Through Type Shot Blast Machines) |
Tube and Bar and billet Blasting Machines Round Bar Shot Blasting Machines, Square Billet Shot Blasting Machines |
Roller Conveyor Shot Blasting Machines For Profiles, Sheet Steel Plate Pretreatment Line,Marble / Stone Shot Blasting Machines, Aluminum Profile Shot Blasting Machines ) |
Wire Rod Shot Blasting Machines (Single & Multistrand Longitudinal Blast Machines) |
Rotary Bogie Table Shot Blasting Machines / Satellite Turntable Shot Blasting Machines |
Wire Mesh Belt Shot Blasting Machines |
Portable Shot Blasting Machines |
Marble / Concrete Block Shot Blasting Machines |
Spring Shot Blasting Machines |

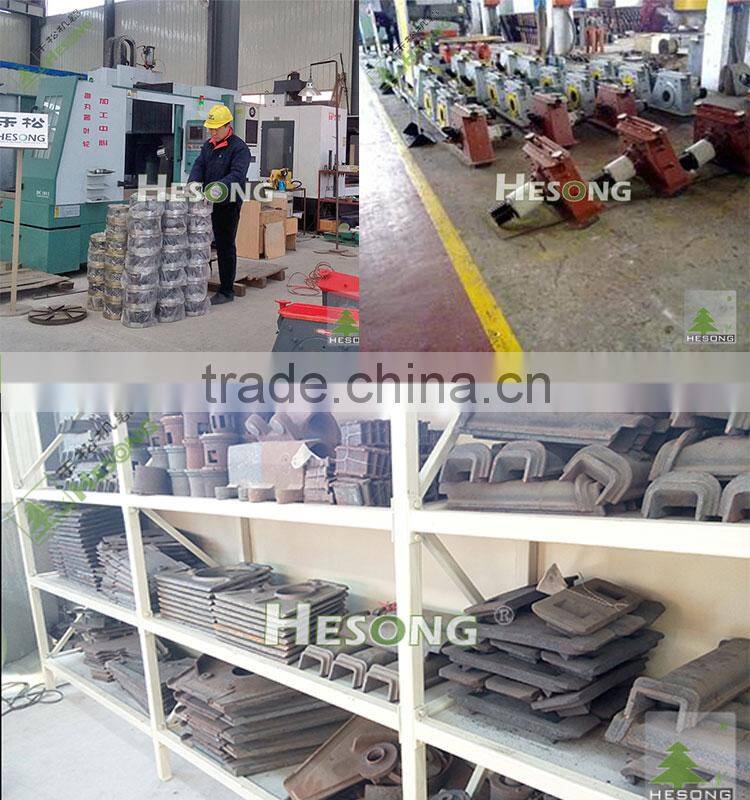

We are factory for manufacturing alll kinds of foundry machinery and almost spare parts, We have special spare part depart.
We offer a full maintenance service! Manufacturers can provide repair facilities for consumers and to stock adequate spare parts so repairs can be undertaken. Tel (400-1177-399)
Our machine had approved CE AND ISO AND BV , SO OUR MACHINE CAN EXPORT TO ALL COUNTRIES.
SHOT BLASTING MACHINE Appliation :
1.Agriculture industry
Shot blasting:tractor components,water pumps,farm implements,etc.
2.Automobile industry
Shot blasting:engine blocks,cylinder heads,break drums,etc.
3.Building & infrastructure industry
Shot blasting:structural steel,bars,transmission & television towers,etc.
4.Transportation industry
Shot blasting:engine blocks,axle & crank shafts,diesel engine components,etc.
5.Oil & gas industry
Surface preparation:pipes coating with paper,cement,epoxy,polythene,coal tar,etc.
6.Mining industry
Shot blasting:bulldozer,dumpers,crushers,land fill equipments,etc.
7.Foundry industry
Shot blasting:automobile,tractor,scooter & motor cycle components,etc.
8.Aluminum casting industry
Shot peening:automobile,scooter & motor cycle components,etc.
9.Forging industry
Shot blasting:crank shafts,connecting rods,torsion bars,other forged components,etc.
10.Railway industry
Shot blasting:side frames,bolster,couplers,rail wheel,entire coach,etc.
11.Electrical industry
Shot blasting:motor body,transformer tank,transmission tower,etc.
12.Energy & power industry
Shot blasting:sturbines,boilers,switch gear components,wind mill blades,column,etc.
13.Stainless steel industry
Shot blasting:strips,angles,channels,pipes,tee,etc.
14.Aviation industry
Shot peening:jet engine,blades,propeller,turbine,hubs,land gear components,etc.
15.Shipyard industry
Shot blasting:steel plates,angles,channels,beams,etc.
16.Steel mill industry
Shot blasting:strips,angles,channels,pipes,tee,etc.
17.Air polution control equipments
Applications:foundry,carbon black,furnace,cupola,etc.
18.Ceramic/paver industry
Applications:antiskid,footpath,hospital,government buildig,public places,etc.
-----------------------------------------------------------------------------------------------------------------
Notice:
According to your requirements, the most suitable machines will be designed for your workpieces, please indicate the following details.
1. What kind of workpiece will you clean?
2. The workpiece size, length, width and height of maximum workpiece?
3. How many workpieces you want to clean per day?
Based on this detail information, the detailed technical proposals will be sent to you for reference.
The examine goods in our factory :
Why choose us ?
1. Our company has passed "CE", "ISO9001" and bureau veritas certification .
2. 50 years experience with 20 professional engineers in our Qingdao Foundry Machine Co.,Ltd.
3. So many kinds of foundry machinery ---100 kinds of shot / sand blasting machines and 80 kinds of casting machines.
4. Considerate after-sale service , Technial Assistance and provide installing ,debugging and training on site
5. The company has its own foreign trade marketing team Industrial Corporation, first - class service standards for all clients.
Our certification
We specialize in the design and manufacture of:
Shot Blasting Machine
Sand Blasting Machine and manual sandblasting pot
Foundry sand mixer
Core shooter
Jolt Squeeze Molding Machine
Sand preparation line for foundry (Clay and resin sand )
Automatic Moulding Machine(line)
-------------------------------------------------------------------------------------------------------------------------------------------------------------------
Payment item
1.T/T,30% deposit, 70% before shipment
2.L/C irrevocable LC at sight
3.100% western union in advance
-----------------------------------------------------------------------------------------------------------------------------------------------------------
MOQ : 1 SE
----------------------------------------------------------------------------------------------------------------------------------------------------------
Delivery time : According to different machine, some are in stock , others can 30 days usually.
-----------------------------------------------------------------------------------------------------------------------------------------------------------

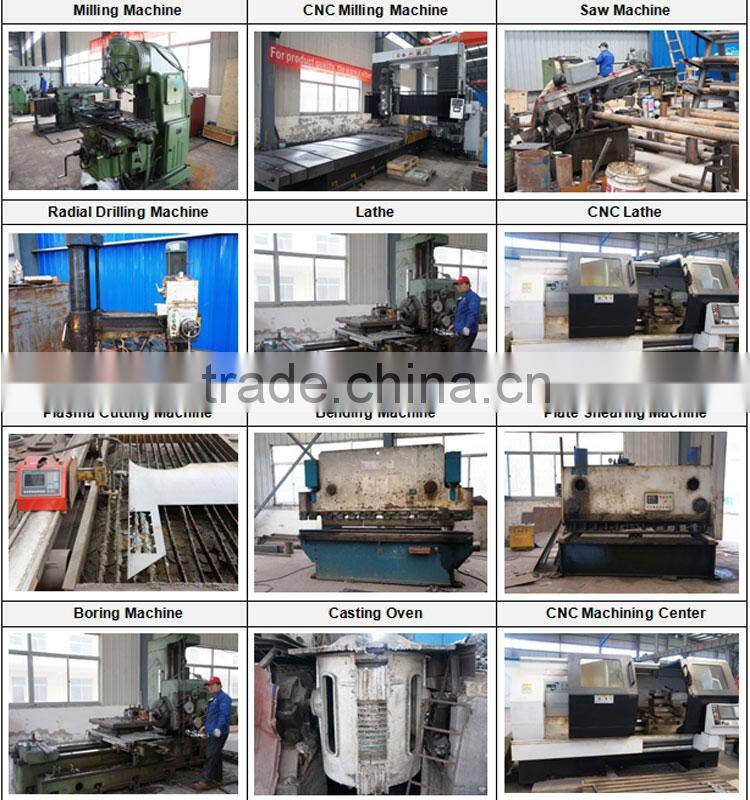

With instruments, metalworking, grinder, rolling wire four workshops, complete production facilities.
Our factory covers an area of 26000 square meters. We have about 260 employees including more than 50 middle and senior technical staff.
Professional software such as Auto CAD and Solid works have been used to provide exact drawings. SAP, Office Automation system been used to control and smooth the work flow.
We have a Quality Inspection Center with Dynamic balance detector, Static balance tester and other advanced equipments to detect finished products, which can guarantee the quality of each product.
All the products are designed by our technical department and tested by our own quality supervise department. We have the ISO9001 International Certification and CE Certification.
Welcome to contact us or visit our company.
