low carbon steel wire nail machinery
Loading picture

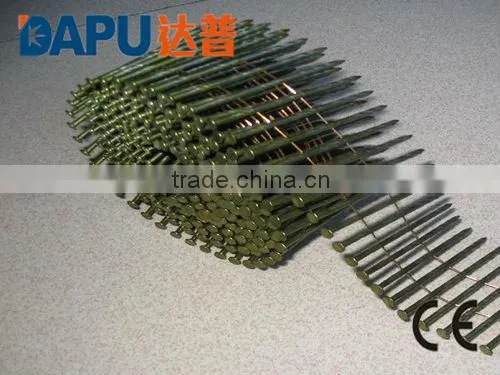

wire nails

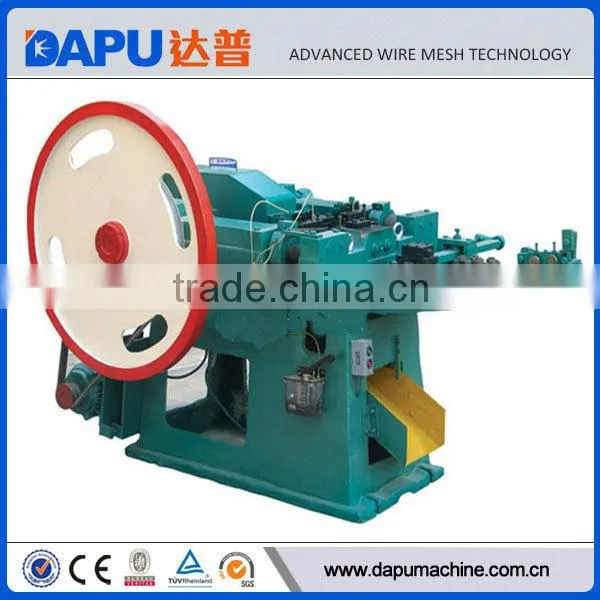

Description of the machine
Nail Making Machine is used to make iron nail. Our latest model of Nail Making Machine adopts plunger and oil pipe lubricating structure to ensure the high working speed, low noise, less impact and good quality.
It has the features of advanced design, compact conformation, and attractive appearance. It is easy to operate. The materials are always from waste steel reinforced, that is, it can make good use of waste materials it is also environmental friendly and economical. The accessory machinery contains Wire Drawing Machine, Glazing Machine, and Knife Grinder.
Feature
1 best quality durable and low noise
2 support by rotation axis, adpot rolling bearing
3 The stamping movement, adpot structure of hinge plunger.
4 Main surface of sliding adopt oil bath and splash lubrication the other surface of friction pour oil by lubrication pump.
Parameter of the machine
Type |
Range of nail length(mm) |
Range of nail diameter(mm) |
Nail making speed(pcs/min) |
Motor(kw) |
Weight(kg) |
Size(mm) |
1C |
9-25 |
0.9-1.6 |
450 |
1.5 |
750 |
1350*950 *1000 |
2C |
16-50 |
1.2-2.8 |
300 |
2.2 |
950 |
1650*1150*1100 |
3C |
25-75 |
1.8-3.4 |
280 |
3 |
1200 |
1990*1200*1250 |
4C |
50-100 |
2.8-4.5 |
260 |
4 |
1900 |
2280*1420*1330 |
5C |
100-150 |
4.1-5.5 |
220 |
5.5 |
2500 |
2300*1450*1500 |
6C |
100-180 |
4.1-6.0 |
180 |
11 |
6000 |
3510*1940*2015 |
