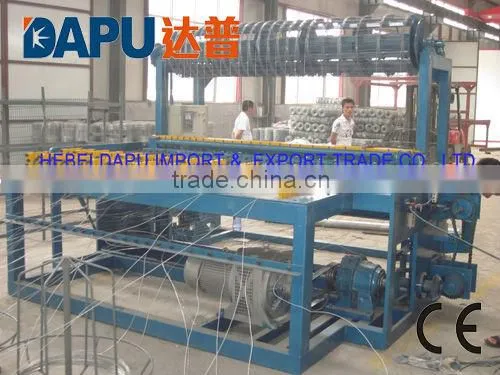

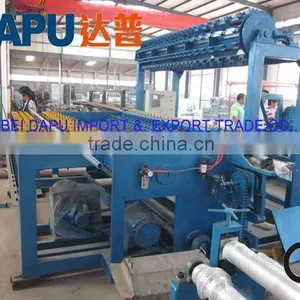

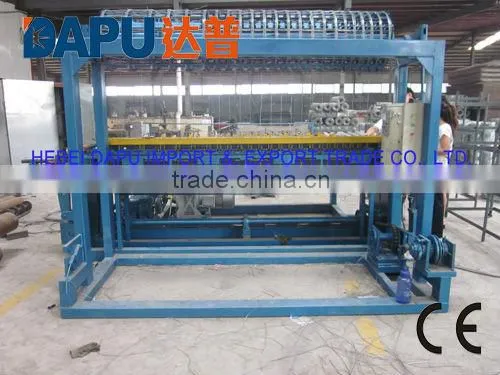

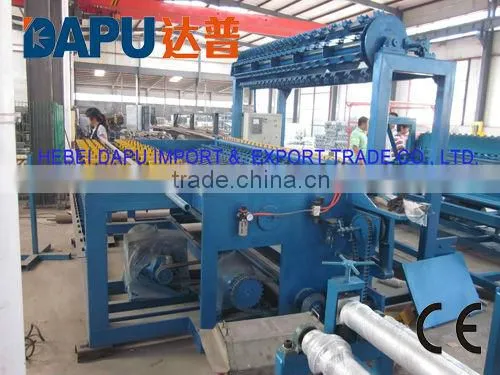

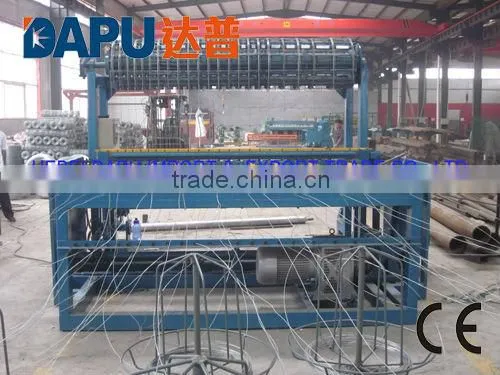

Grassland fence machine(factory)
Field fence machine(low price)
Cattle fence machine(high production)

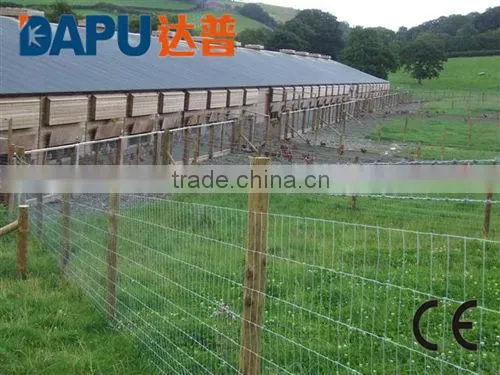

Grassland/field/catle fence(NEAT AND BEAUTIFUL)
Description of the machine
CY-A type grassland fence machine can produce width max.1427mm wrap- around automatic grassland fence machine which is used to toweave wrap around fence automatically. The grassland fence machine is also called field fence machine.
Application of the machine
This machine can produce graslland fence which is used for preserving the environmental balance,preventing landslide and used as livestock fence .
Advantage of the machine
This machine adopts sophisticated computer control, techadvanced manufacturingnique.It has the features of novelty,high degree of automation,operationalsafety and reliablity, easy operation,long life and low price.all the parts which it's working coodinately and smoothly. the finished product is neat and beautiful.It can be produced diverse specification of grassland fence.
Parameter of the machine
Type |
CY-A |
CY-B |
CY-C |
CY-D |
Width |
1422mm |
1880mm |
2000mm |
2400mm |
motor |
5.5kw |
7.5kw |
7.5kw |
11kw |
Dimension |
2.8*3.2*2.4(m) |
3.3*3.2*2.4(m) |
3.4*3.2*2.4(m) |
3.9*3.4*2.4(m) |
Efficiency |
≤45rows/min |
≤45row/smin |
≤45rows/min |
≤45rows/min |
Twine diameter |
1.9-2.5(mm) |
1.9-2.5(mm) |
1.9-2.5(mm) |
1.9-2.5(mm) |
Side wire diameter |
2.0-3.5(mm) |
2.0-3.5(mm) |
2.0-3.5(mm) |
2.0-3.5(mm) |
Voltage |
3-phase380v50HZ |
3-phase380v50HZ |
3-Phase380v50HZ |
3-Phase380v50HZ |
Weight |
3.0T |
3.5T |
4.0T |
4.5T |
Maximum line wire number |
11 |
13 |
18 |
23 |
Minimum line wire opening |
75mm |
75mm |
75mm |
75mm |
The weft opening |
100mm,200mm,300 mm 0r 150mm,300 mm |
100mm,200mm,300 mm 0r 150mm,300 mm |
100mm,200mm,300
mm 0r 150mm,300
mm
|
100mm,200mm,300
mm 0r 150mm,300
mm
|
