CE Certification H Beam Shot Blasting Machine / Rust Cleaning Square Pipes
- 120 Set / Sets per Month
- Qingdao Port
- T/T Credit Card
- Supports multi-hook customization of Pumingwei hook-type shot blasting machine surface metal rust removal equipment
- tumble rubber belt shot blasting machine for foundry plant crawler shot blaster
- smaller casting parts surface treatment crawler shot blasting machine
- Q326 Q324 Q3210 tumble belt shot blasting machine crawler belt shot blasting machine
- Tumble belt shot blasting machine for nuts and bolts surface treatment
- Tumbler belt shot blasting abrator machine wheel crawler shot blaster
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | QINGZHU |
Model Number: | Rust Cleaning Square Pipes | Feature: | Critical Cleaning / Residue Free, Non-Ionic, Rust / Corrosion Inhibitor | Fuel: | Electric |
Certification: | CE, Other, CE, ISO9001-2008 | Use: | Burnishing, Container / Bottle Cleaning, Deflashing, Degreasing | Cleaning Process: | Other, STEEL SHOT |
Cleaning Type: | Manual | Industry Used: | Other, ALL | Material: | Metal / Coil |
Power(W): | Shot Blasting Machine | Dimension(L*W*H): | Shot Blasting Machine | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
CE Certification H Beam Shot Blasting Machine / Rust Cleaning Square Pipes
Product Description:
H Beam shot blasting machine is designed and manufactured to clean the surface of the large section steel. It is most used for t removing the rust, scale and contamination from the steel surface of large scale H-Beam and I-Beam. This series shot blasting machine is most suitable for production floor in the construction industries, marine, off-shore oil & gas industries etc.
Our H Beam Shot Blastering Machine :
1.Structural durability
2.Using high-efficient turbine
3.Roller / trolley pass through type shot blasting machine
4.Eliminate pressure and surface rust cleaning of H-beam and other steel constructions.
Technical Parameter:
Technical parameter of H Beam Shot Blasting Machine | |||||||||
No. | ModelItem | Q698 | Q6912 | Q6915 | Q6920 | Q6925 | Q6930 | Q6940 | |
1 | Width of workpiece | mm | 800 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
2 | Size of inlet opening | mm | 800*1600 | 1200*400 | 1500*400 | 2000*400 | 2500*800 | 3000*800 | 4000*400 |
3 | Length of workpiece | mm | 1200-12000 | 1200-6000 | 1200-12000 | 1200-12000 | 3000-12000 | 2400-12000 | 4500-18000 |
4 | Roller speed | m/min | 0.5-4 | 0.5-4 | 0.5-5 | 0.5-4 | 0.5-4.5 | 0.5-4 | 2-8 |
5 | Thickness of plate | mm | 3-60 | 3-60 | 1.5-60 | 3-60 | 3-60 | 3-110 | 4.5-110 |
6 | Abrasive flow rate | kg/min | 8*120 | 4*250 | 4*250 | 6*250 | 6*250 | 6*360 | 8*360 |
7 | Abrasive initial fill | kg | 4000 | 4000 | 4000 | 4500 | 4500 | 8000 | 11000 |
8 | Adjusting height of rolling brush | mm | 400 | 200 | 350 | 450 | 600 | 850 | 900 |
9 | Ventilation capacity | m3/h | 22000 | 17560 | 19000 | 19550 | 27758 | 28050 | 38000 |
10 | Total power of shot blast machine (no dust collector) | kw | 90 | 78.3 | 113.6 | 156.6 | 224.55 | 204.8 | 29 |

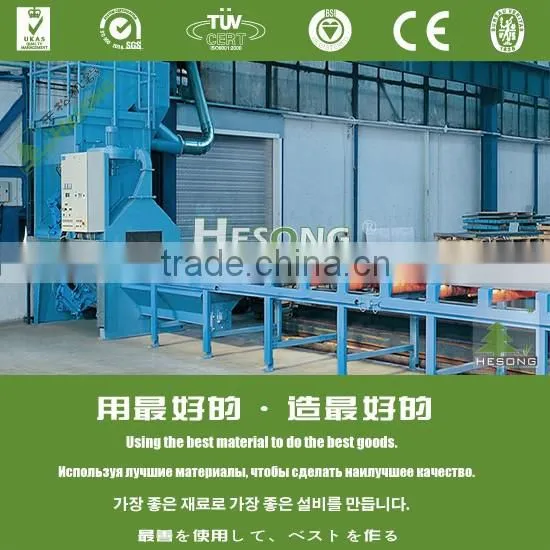

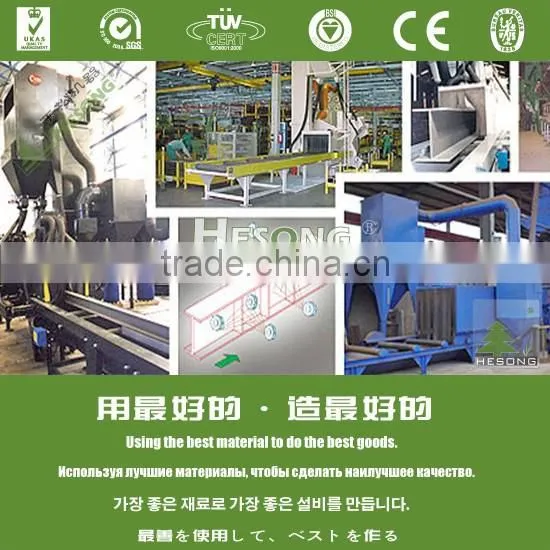

Product Picture:
No. | Item | |
1 | Workpiece size(W*H*L) | |
2 | ROLLER conveyor system | |
4 | De rusting quality grade | |
5 | Abrasive(material) | |
6 | Waste Gas Emission | |
7 | Dust Removal System | |
8 | Gravity settling system | |
9 | Blast wheel(turbine high-speed) | |
10 | Electrocal control gate valve | |
11 | Circulatory system(elevator,separator,conveyor) | |
12 | Power | Total power |
Total compressed air consumption | ||
13 | Electrical control system |
We specialize in the design and manufacture of:
Q69 Series Roller Conveyor Type Shot Blasting Machine
KSB Series Hook Type Shot Blasting Machine
Q37 Series Shot Blasting Machine For Engineering Machinery
Q311 Series Drum Type Shot Blasting Machine
Q26/Q36 Series Flatcar Shot (Spray) Type Cleaning Machine
Q76 Series Trolley Type Shot Blasting Machine
Q38 Continuous Pendant Chain Type Shot Blasting Machine
Q48 Step-By-Step Pendant Chain Type Shot Blasting Machine
Q58 Changeable Chain Type Shot Blasting Machine
ZJ0 Series Rotary Table Shot Blasting Machine
ZJ02 Series Spring Shot Blasting Machine
ZJ18 Series Wheel Roller Shot Blasting Machine
QGW Series Steel Tube Outer Wall Shot Blasting Machine
QGN Series Pipe Inwall Shot Blasting Machine
GN Series Belt Type Shot Blasting Machine
Q32 Series Apron Type Shot Blasting Machine
Q35 Series Turntable Type Shot Blasting Machine
QWD Series Wire Mesh Belt Type Shot Blasting Machine
QSHBSeries Rotary Hook Type Shot Blasting Machine
QX Series Wire Rod Shot Blasting Machine
QM Series Special Shot Blasting Machine For Anchor Chain
RE Series Shot Peening Machine For Strengthening For Mill Roll
CND Series Inclined Drum Shot Blasting Machine
SHB Series Turntable Shot Blasting Machine
Ql Series Squirrel-Cage Type Shot Blasting Machine
ZJ076 Series Leaf Spring Shot Peening Machine For Strengthening
SCC Series Spring Shot Peening Machine For Strengthening
SNC Series Bar Shot Blasting Machine
Our product have passed the ISO9001-2008 and CE approval.
Our machines were exported to France, Spain ,Russia, Mexico , Japan,korean, Pakistan,Vietnam,Thailand,Southeast Asia and other countries , so hope you can trust our professional technology and strength !
Our Service:
1.Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & Molding Machine & Core Shooting Machine for more than 40 years, competitive with good quality.
7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
FAQ:
1•How to get a accurate quotation from us?
The material of the workpiece that needed to punch,the thickness and dimension of the workpiece,the shape and diameter of the hole.
2• what’s the shipping cost from China to your country?
tell us your city or port
3• How to check imported charges or tax ?
We will tell you the machine HS code.
4• Payment terms,MOQ,warranty,FOB...
payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery
minimum order quantity:1 set,FOB Qingdao.
delivery time :20days after receipt of formal order and 30% deposit.
warranty:12 months following delivery.
5• what’s the package
Container
6• How to operate this machine ?
video link of our factory .......or we send you the movie directly.
7• what about commissioning service ?
we can offer commissioning service,the buyer needs to afford plane tickets and relative operating cost.
8• Do you offer teaching&training ?
Training at supplier’s plant.
9• what’s policy for guarantee and broken parts?
Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free
