H Beam Shot Blasting Machine
Product Desprition:
H beam shot blasting machine are mainly used for treating long and/or flat components. The components continuously pass through the "pre" chamber, the blasting chamber, and the cleaning chamber on a special roller conveyor.
Highly efficient turbines fixed on the machine housing make the Steel Plate Shot Blasting Machine possible to treat the components on all sides.

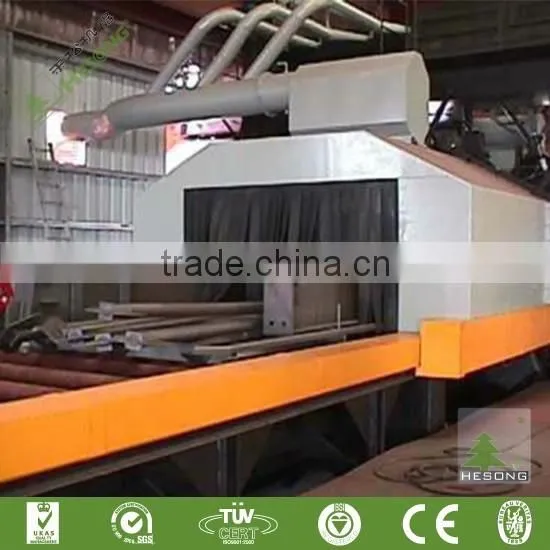

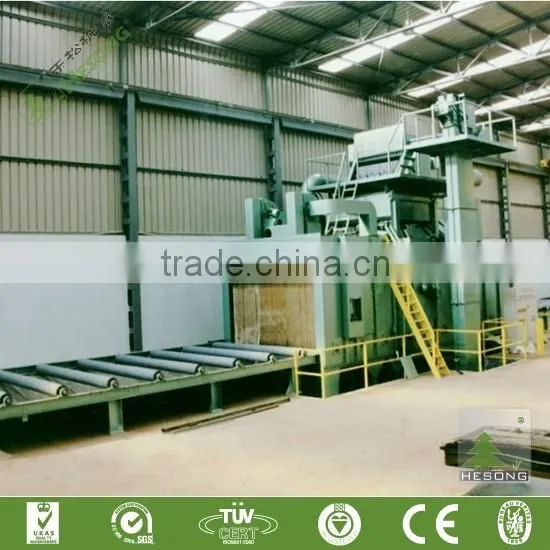

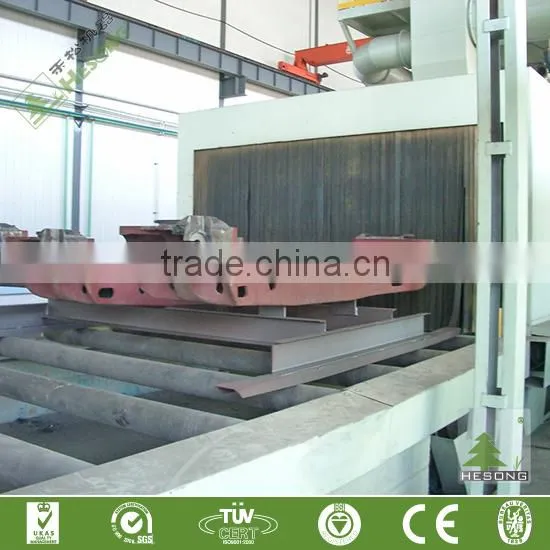

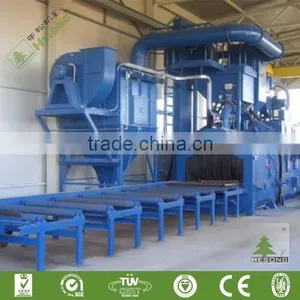

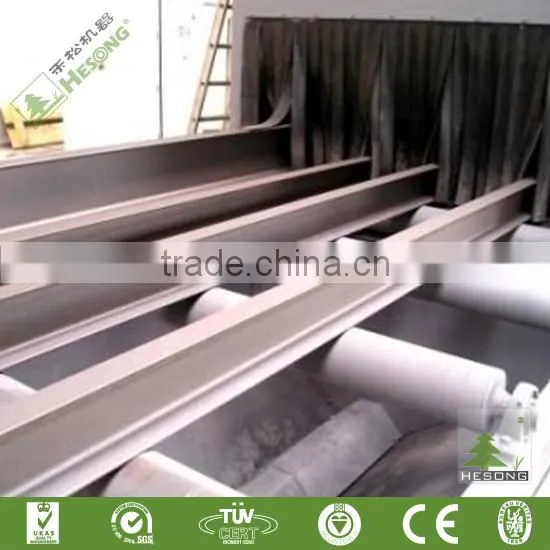

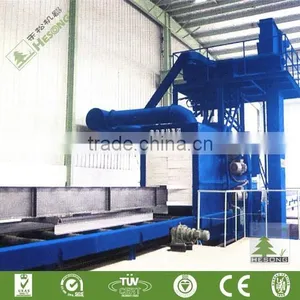

Product pictures:
h beam shot blasting machine are used to remove scale, rust and paint from long and/or flat components.
Steel plate, profile, section, beam shot blasting machine belong to the roller type shot blasting machine ,and mainly used to de-stress and surface de-rust the steel structures,such as Large-scale H steel,etc.In the construction and bridge professions. We can design different size of shot blasting machine for H beam and other structure steel according to customer's demand.
Technical Parameters:
parameter |
Q698 |
Q6912 |
Q6915 |
Q6920 |
Q6925 |
Q6930 |
The effective cleaning width(mm) |
800 |
1200 |
1500 |
2000 |
2500 |
3000 |
The room feed-in size |
1000*400 |
1400*400 |
1700*400 |
2200*400 |
2700*800 |
3200*800 |
The length of cleaning workpiece(mm) |
1200-12000 |
1200-1600 |
1200-12000 |
1200-12000 |
3000-12000 |
2400-12000 |
Steel spectification (mm) |
800*300 |
1000*300 |
1500*300 |
2000*300 |
2500*700 |
3000*700 |
The quantity of shot blasting (kg/min) |
4*180 |
4*250 |
4*250 |
6*250 |
6*250 |
6*360 |
The first enclosed quantity (kg) |
4000 |
4000 |
4000 |
4500 |
4500 |
8000 |
Roll brush adjusting height (mm) |
200 |
200 |
350 |
450 |
600 |
850 |
Air capacity(m3/h) |
22000 |
17560 |
19000 |
19550 |
27758 |
28050 |
Total power (kw) |
90 |
78.3 |
113.5 |
156.6 |
204.8 |
224.55 |
Our Company:
1. Our company has passed "CE", "ISO9001" and bureau veritas certification .
2. 50 years experience with 20 professional engineers in our Qingdao Foundry Machine Co.,Ltd.
3. So many kinds of foundry machinery ---100 kinds of shot / sand blasting machines and 80 kinds of casting machines.
4. Considerate after-sale service, Technical Assistance and provide installing, debugging and training on site
5. The company has its own foreign trade marketing team Industrial Corporation, first - class service standards for all clients.
Note :
According to your requirements,the most suitable machines will be designed for your workpieces please indicate the folloing details.
1.what kind of workpiece will you clean ?
2.The workpiece size,length ,width and height of maximum workpiece?
3.How many workpiecs do you want to clean per day ?
Based on this question,the detailed technical proposals will be sent to you for reference.
Our Service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & Molding Machine & Core Shooting Machine for more than 40 years, competitive with good quality.
7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
Welcome to contact us or visit our company.
