Automatic Fence Welded Wire Mesh Machine With CE Certification
Automatic Fence Welded Wire Mesh Machine With CE Certification
Model |
DP-FP-2500A |
Wire diameter |
2.5-6mm/3-8mm |
Line wire space |
50-300mm |
Cross wire space |
25-300mm |
Width of mesh |
Max.2.5m |
Length of mesh |
Max.6m |
Welding electrodes |
48 pcs |
Welding speed |
50-75 times/min |
Rated electrical power |
85kva*6pcs |
Wire feed way |
Pre-straightened&pre-cut |
Weight |
4.2T |
Overall size |
5.4m*3.1*1.7m |
Material: galvanized wire, black wire, stainless steel wire (special device)

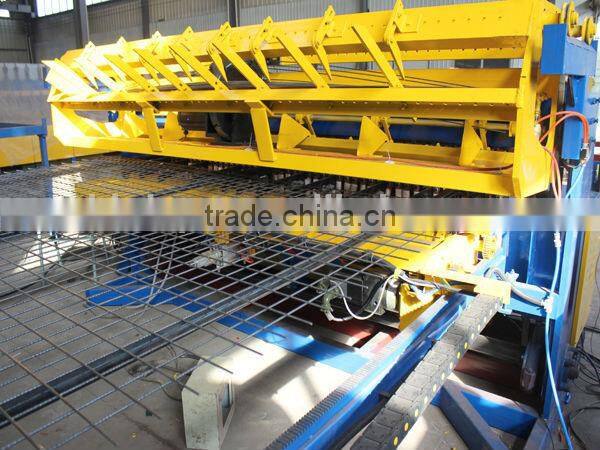

CNC welded wire mesh panel machine for fence (Back side)
Main Technologies
Panasonic (Japan) PLC program, Weinview (Taiwan) touch screen.
Schneider (France) low-voltage apparatus. Delta (Taiwan) variable-frequency drive.
Panasonic (Japan) servo motor or step motor for pulling mesh, big power, high precision.
Brake clutch motor and reducer connect the principal axis directly, high stability, big power.
Casting water-cooling transformers, high efficiency.
Auxiliary Equipment

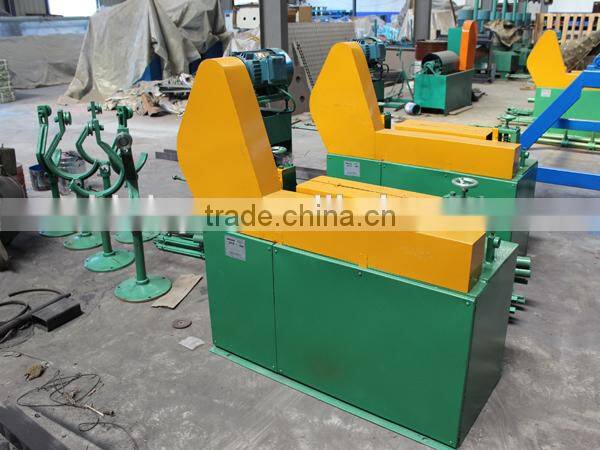

1. Wire straightening&cutting machine GT2-6
Technical Parameters
Wire diameter |
2mm-6mm |
Straight motor |
2.2kw |
Cutting length |
100-6000mm |
Cut motor |
1.5kw |
Cut error |
±1mm |
Overall size |
7.2*0.5*0.9m |
Speed |
35m/min |
Weight |
300kg |

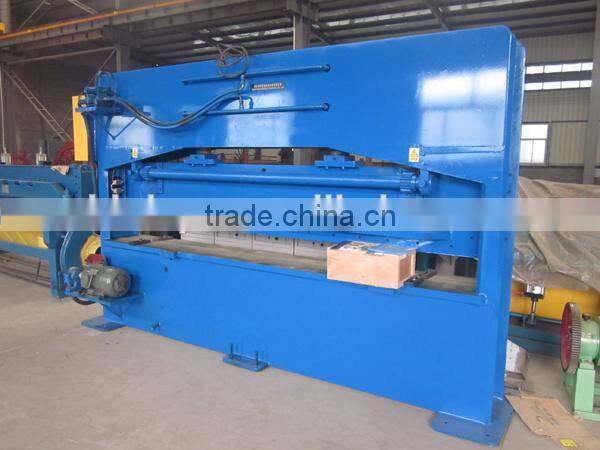

2. Fence mesh bending machine
Technical Parameters
Pressure |
100T |
Nominal pressure |
800KN |
Length of work board |
3200mm |
Width of work board |
450mm |
Motor power |
7.5kw |
Speed |
1440r/min |
Oil pump pressure |
20 APM |
Output volume |
25litre/r |
Max. working pressure |
25GMP |
Overall dimensions |
3340*1000*2300mm |

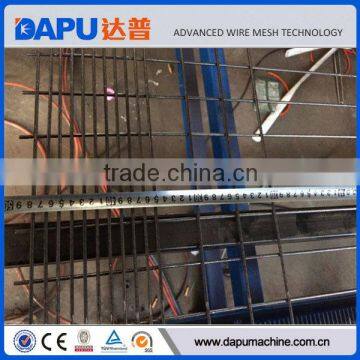

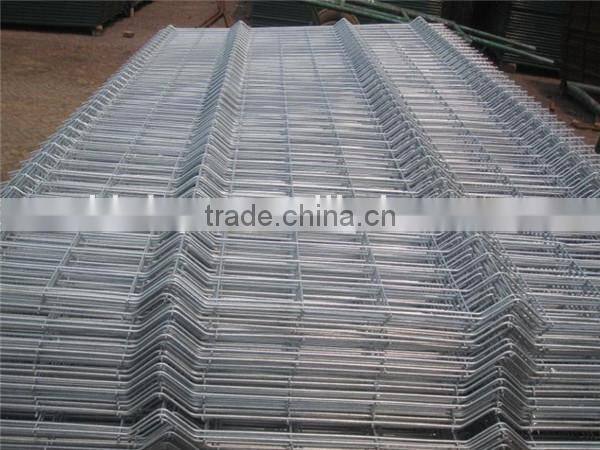

Welding Sample
Best After-sales Service
1. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer’s factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions.

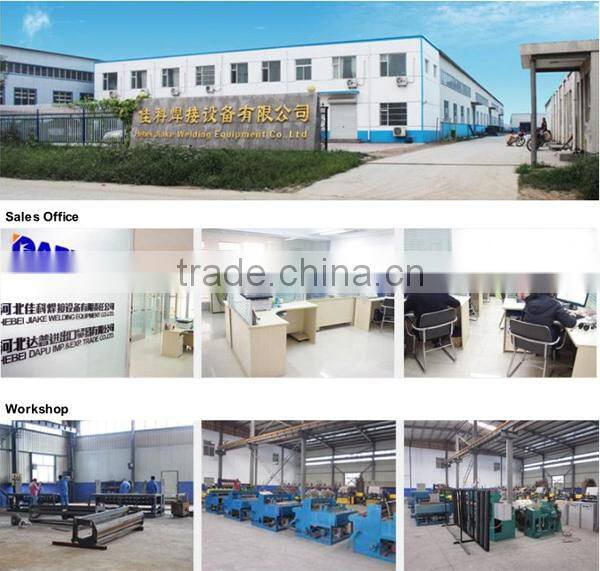

Factory Picture
We are a professional manufacturer of wire mesh machines in China. Our main products are:
Reinforcing mesh welding machine, Fence mesh welding machine, Roll mesh welding machine, Chicken cage welding machine, Automatic welded mesh machine, Wire straightening and cutting machine, Cold rolling ribbed machine etc.
Welcome to visit our factory!
