CE Certification H-Beam Shot Blasting Machine For Cleaning Steel Structure

CE Certification H-Beam Shot Blasting Machine For Cleaning Steel Structure photo-1
CE Certification H-Beam Shot Blasting Machine For Cleaning Steel Structure photo-2
CE Certification H-Beam Shot Blasting Machine For Cleaning Steel Structure photo-3
CE Certification H-Beam Shot Blasting Machine For Cleaning Steel Structure photo-4
CE Certification H-Beam Shot Blasting Machine For Cleaning Steel Structure photo-5
US$ 5,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HESONG
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name HESONG
Model Number Q69
Feature Critical Cleaning / Residue Free, Non-Ionic, Non-Toxic, Rust / Corrosion Inhibitor
Fuel Electric
Certification CE, Other, CE, ISO9001
Use Burnishing, Deflashing, Degreasing, Descaling / Stripping
Cleaning Process Other, steel shot,abrasive
Cleaning Type Manual
Industry Used Other, Steel industry,bridging industry
Material Metal / Coil
Power(W) Cusomized
Dimension(L*W*H) Requirement
After-sales Service Provided Engineers available to service machinery overseas
Product Description

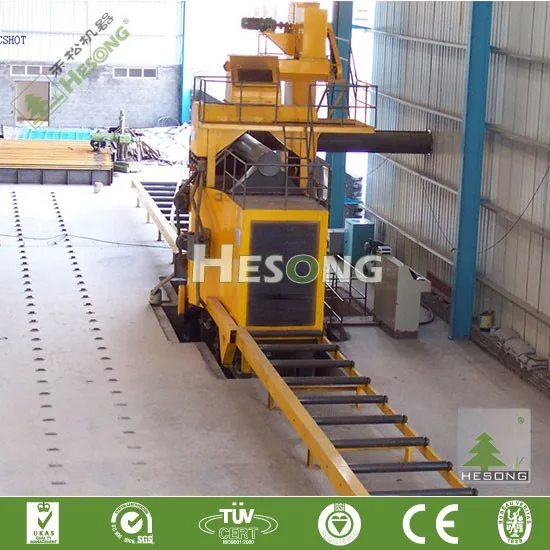

Roller conveyor type shot blasting machine is a kind of suitable for steel, steel plate and steel structure surface cleaning and strengthening. To obtain smooth surface with certain roughness, increase the film adhesion, improve the quality of surface and antiseptic effect

Features

1. The impeller head is composed of blast wheel, the structure is simple and durable.
2. BE type segregator is very efficient and it can protect blast wheel.
3. The bag dust filter can greatly reduce air pollution and improve the work environment.
4. Abrasion resistant rubber belt lighten the collision of work pieces, and lower the noise.
5. This machine is controlled by PLC, the operation is easy and reliable

Technical Parameter

ModelItem
unit
Q698
Q6912
Q6915
Q6920
Q6925
Q6930
Q6940
Width of workpiece
mm
800
1200
1500
2000
2500
3000
4000
Size of inlet opening
mm
800*1600
1200*400
1500*400
2000*400
2500*800
3000*800
4000*400
Length of workpiece
mm
1200-12000
1200-6000
1200-12000
1200-12000
3000-12000
2400-12000
4500-18000
Roller speed
m/min
0.5-4
0.5-4
0.5-5
0.5-4
0.5-4.5
0.5-4
2-8
Thickness of plate mm
mm
3-60
3-60
1.5-60
3-60
3-60
3-110
4.5-110
Abrasive flow rate
kg/min
8*120
4*250
4*250
6*250
6*250
6*360
8*360
Abrasive initial fill kg
kg
4000
4000
4000
4500
4500
8000
11000
Adjusting height of rolling brush mm
mm
400
200
350
450
600
850
900
Ventilation capacity
m3/h
22000
17560
19000
19550
27758
28050
38000
Total power of shot blast machine(no dust collector)
kw
90
78.3
113.6
156.6
224.55
204.8
29
Detailed Images

Our machines were exported to France, Spain ,Russia, Mexico , Japan,korean, Pakistan,Vietnam,Thailand,Southeast Asia and other countries , so hope you can trust our professional technology and strength

Our Service

1.Reply your inquiry in 24 working hours
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & Molding Machine & Core Shooting Machine for more than 40 years, competitive with good quality.
7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature
.
