Environmental Protection Steel Structure H Beam Rust Removal Equipment

Environmental Protection Steel Structure H Beam Rust Removal Equipment photo-1
Environmental Protection Steel Structure H Beam Rust Removal Equipment photo-2
Environmental Protection Steel Structure H Beam Rust Removal Equipment photo-3

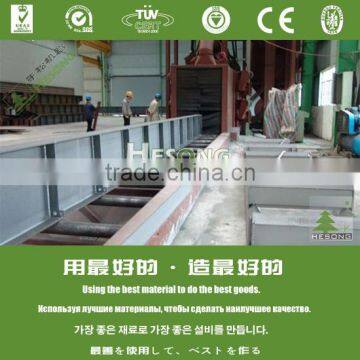

Environmental Protection Steel Structure H Beam Rust Removal Equipment photo-4
US$ 1 - 24,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HESONG
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT CHINA
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name HESONG
Model Number Q69
Feature Critical Cleaning / Residue Free, Non-Toxic, Other, Critical Cleaning / Residue Free, Non-Toxic, Shot Blasting
Fuel Electric
Certification CE, Other, CE, ISO9001-2008,TUV,BSI
Use Burnishing, Container / Bottle Cleaning, Deflashing, Degreasing, Descaling / Stripping
Cleaning Process Other, abrasive
Cleaning Type Clean-In-Place (CIP)
Industry Used Electronic Industry
Material Metal / Coil
Power(W) Cusomized
Dimension(L*W*H) Model
After-sales Service Provided Engineers available to service machinery overseas
Product Description
Product Introduction

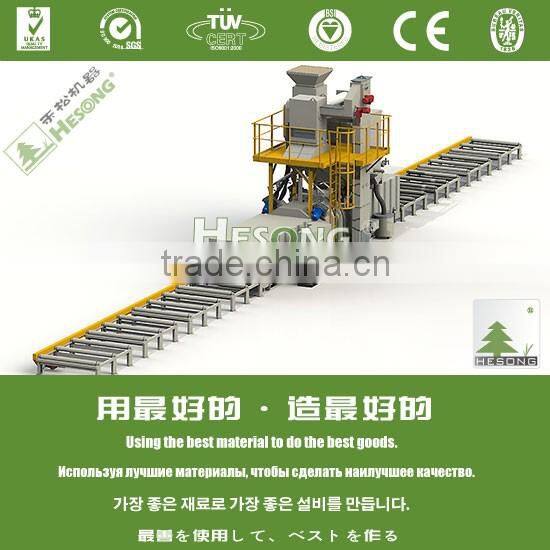

This equipment is mainly used in cleaning on the surface of the h-beam and steel plate, through the shotblast cleaning, remove the surface of the steel rust, dirt, scale, etc,and strengthen effect of components、improve the level of fatigue resistance, and finally it can achieve the purpose of clean steel surface and strengthen internal quality.

Model
Q698
Q6912
Q6915
Q6920
Q6925
Q6930
Q6940
Width of workpiece(mm)
800
1200
1500
2000
2500
3000
4000
Size of inlet opening(mm)
800*1600
1200*400
1500*400
2000*400
2500*800
3000*800
4000*400
Length of workpiece(mm)
1200-12000
1200-6000
1200-12000
1200-12000
3000-12000
2400-12000
4500-18000
Roller speed(m/min)
0.5-4
0.5-4
0.5-5
0.5-4
0.5-4.5
0.5-4
2-8
Thickness of plate(mm)
3-60
3-60
1.5-60
3-60
3-60
3-110
4.5-110
Abrasive flow rate(kg/min)
8*120
4*250
4*250
6*250
6*250
6*360
8*360
Abrasive initial fill(kg)
4000
4000
4000
4500
4500
8000
11000
Adjusting height of rolling brush(mm)
400
200
350
450
600
850
900
Ventilation capacity(m3/h)
22000
17560
19000
19550
27758
28050
38000
Total power of shot blast machine(kg)
90
78.3
113.6
156.6
224.55
204.8
29

Repair and Maintenance

1. The machine should be regular maintenance, timely maintenance and lubrication.
2. Maintenance shold be forbidden to forget the tools, screws and other  parts into the machine.
3.It is forbidden to pit be affected with damp, projectile rust agglomerate .if machine have a long-term date to work ,you need to be regularly running half an hour.

4. The machine should be periodically removed the sscrap of the eparator and precipitator to ensure the normal operation of the machine.

Certifications
Detailed Images

Machine Parts

Name: Blast Wheel

Original:CHINA

Blast wheel is the core of shot blasting machine, plays a main role in the process of cleaning, installation of 4 to 8 shot blasting machine can clean up the workpiece from different angles ,in order to achieve the goal of parts was completely clean.


Main Features

Name: Blade
Original: CHINA
Most of the projectile was thrown out the impact of the blade, blade badly worn should be replaced. Mutually symmetrical blade weight should be equal, in order to avoid a greater rapping the impeller rotates

Machine Parts

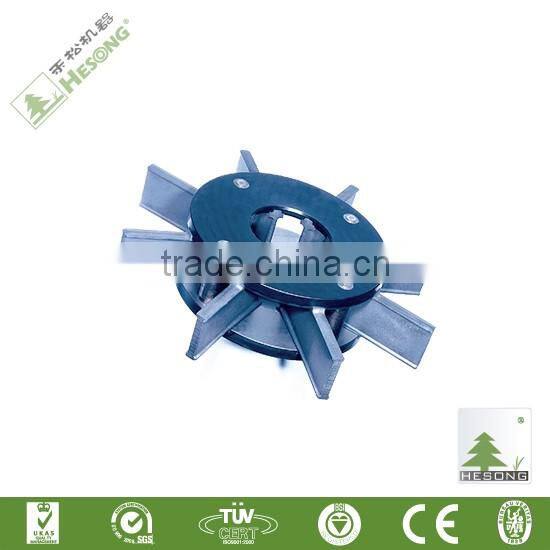

Name: Impeller
Original: CHINA
Impeller made of high quality alloy of 4cr and after heat treatment processing technology, dynamic balance detection is made.And it is provided with high wear resistance and service life.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

The above packaging is our company's conventional packaging, if you have more requests about the packaging, please let us know, within our reach, we will try our bast to meet your reasonable requirements.

Our Factory
FAQ

Q1:What are the advantages of your company let us choose your product?
A1:We have a good reputation, good quality products, excellent after-sales service system, the latest technology support.
Q2:Will you deliver the right goods as ordered? How can I trust you?
A2: Yes, we will. The core of our company culture is honesty and credit. MACTEC is ALIBAB’s Gold supplier with BV assessment. If you check with ALIBABA, you will see that we have never got any complaint from our customers.
Q3:Do you sell only standard machines?
A3:No,most of our products are customized according to customer requirements.
Q4: Do you have after sales support?
A4:Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q5. What is your terms of payment?
A5: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q6. How about your delivery time?
A6: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Do you test all your goods before delivery?
A7: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A8:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
