Prison barbed wire machine
Description of barbed wire machine
This machine can produce barbed wire which is widely used in national defense, military, railway, highway, agricultural, animal husbandry and other industries. The materials of barbed wire usually hot dipped galvanized wire, electric galvanized wire and PVC coated wire etc.

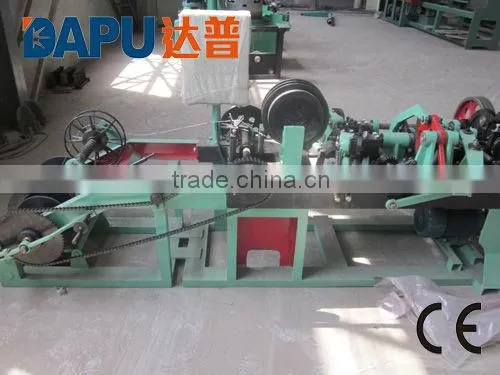

Picture of CS-C Positive and negative twist barbed wire machine

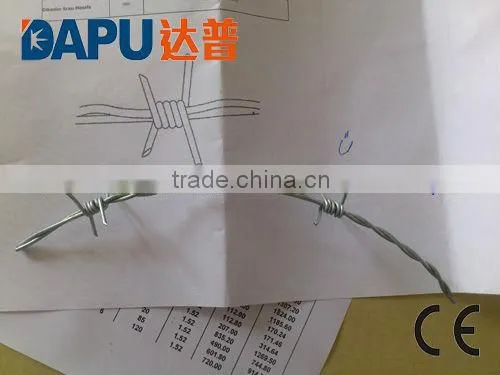

Picture of the product
Raw material
It consists of hot dipped galvanized wire, electric galvanized wire and PVC coated wire etc.
Technical parameter
Model |
CS-C Type |
Motor power |
2.2kw |
Main drive shaft speed |
355r/min |
Wire diameter |
1.6mm-2.8mm |
Barbed wire diameter |
1.6mm-2.2mm |
Barbed space |
102mm(4inch)/127mmm(5inch) |
Twisted number |
7 |
Theoretical production |
40kg/h |
Total weight |
1000kg |
Dimension |
3100mm*1000mm*1150mm |
Features of the machine
1. It is of low-noise, high-safety and high-efficiency.
2. It is easy to operate and of high-capacity.
3. It saves materials.
Functions of the machine
It is widely used in national defense, railway, highway, agriculture, animal husbandry and other industries.
