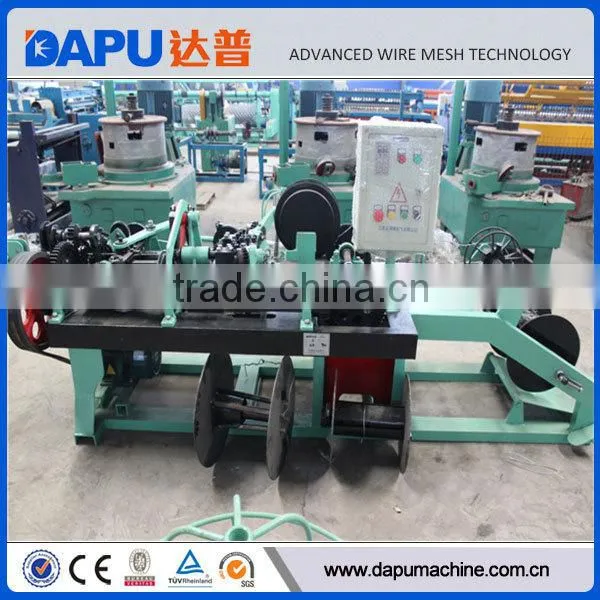

Help CenterCS-C Type Positive and Negative Twisting Barbed Wire Machine
Related Products
-
Professional Low Price Barbed Wire Machine for SaleUS$ 5,000 - 9,000MOQ: 1 Set -
Barbed Wire Making Machine for SaleUS$ 5,000 - 9,000MOQ: 1 Set
-
Barbed Wire MachineUS$ 5,000 - 9,000MOQ: 1 Set
-
CS-B Type Single Barbed Wire MachineUS$ 5,000 - 9,000MOQ: 1 Set
-
High Capacity Barbed Wire MachineUS$ 4,200 - 6,000MOQ: 1 Set
Quick Details:
Application: barbed wire making Condition: New Moddel Number: CS-C
Applicable Material: galvanized wire, PVC steel wire
Unit Diameter:1.6-2.8 Barbed Diameter:1.6-2.2 Barbed Space:102(4'')127(5'')
Technology Parameter:
Place of Origin |
Hebei China |
Motor Power(KW) |
2.2 |
Main Drive Shaft Speed(R/MIN) |
355 |
Unit Diameter(MM) |
1.6-2.8 |
Barbed Diameter(MM) |
1.6-2.2 |
Barbed Space(MM) |
102(4")127(5") |
Theoretical Production(KG/HOUR) |
40 |
Total Weight(KG) |
1000 |
Twist Number |
7 |
Dimension(MM) |
3100*1000*1150 |
Description: This machine is produce positive and negative twisted barbed wire, the material of wire are usually hot dipped galvanized wire, electric galvanized wire etc.
Features: 1.This kind of machine use positive and negative way for winding flowers, the barbed wire products produced has no rebound and winding phenomenon, so it is more beautiful compared with the general barbed wire.
2. Easy to move cause this machine doesn’t need the preset base.
3. This kind of machine is adopting electronic control technology.
Purpose: This machine’s product is used in national defense, highway, agriculture, railway, animal husbandry and other industries etc.
We always pay more attention to the quality of our machine, Standard quality control system and team are responsible to insure the high quality in every process. We are devoted to producing a more efficiency and safer machines.
1. one year guarantee for whole machine
2. 24 hour technical support by e-mail
3. calling or door-to-door service
4. use-friendly English software, user manual and detail Videos/CD
