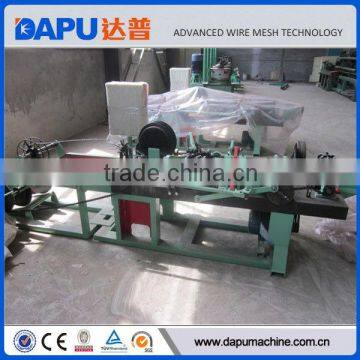

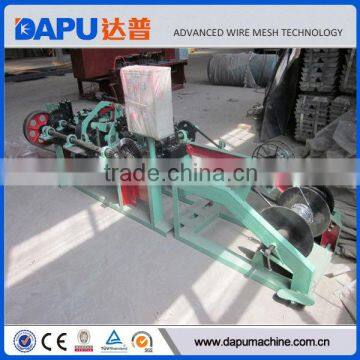

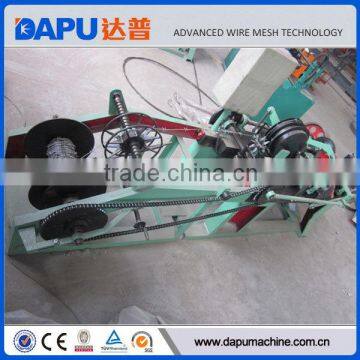

Barbed wire machine
Barbed wire machine can produce barbed wire which is widely used in national defense, military, railway, highway, agriculture and other insustries. The materials of barbed wire are usually galvanized wire or PVC coated wire. The advantage of this machine are saving materials and high capactity.
Technical Parameter
Model | CS-A Type | CS-B Type | CS-C Type |
Motor power | 3kw | 2.2kw | 2.2kw |
Main drive shaft speed | 402r/min | 355r/min | 355r/min |
Wire diameter | 2.2mm-3.0mm | 2.2mm-3.0mm | 1.6mm-2.8mm |
Barbed wire diameter | 1.8mm-2.2mm | 1.8mm-2.2mm | 1.6mm-2.2mm |
Barbed space | 76mm(3’)/102mm(4’)/127mm(5’) | 102mm(4’)/127mmm(5’) | 102mm(4inh)/127mm(5inch) |
Twisted number | 3-5 |
| 7 |
Theoretical production | 70kg/h | 40kg/h | 40kg/h |
Total Weight | 1200kg | 1000kg | 1000kg |
Main part size | 1950mm*950mm*1300mm |
|
|
Take-twisting part size | 1760mm*550mm*760mm |
|
|
Dimension |
| 3100mm*1000mm*1150mm | 3100mm*1000mm*1150mm |
Feature
It has the features of saving materials and high capacity.
2. 24 hour technical support by e-mail
3. We offer installation and train the workers for the customers.
