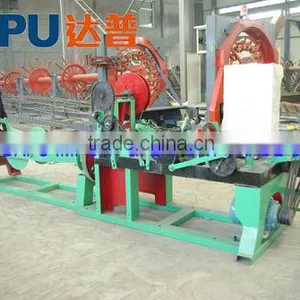

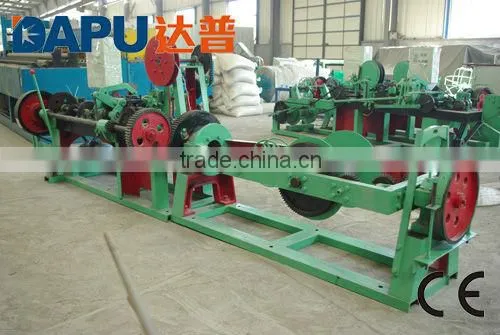

Description of the barbed wire machine

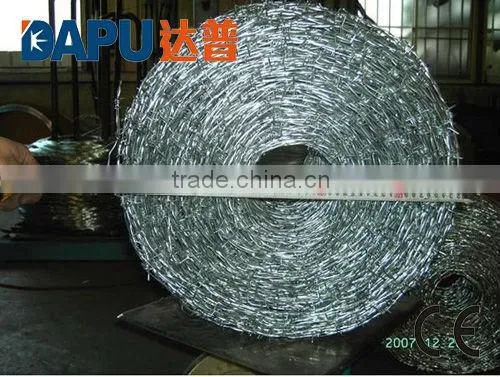

Barbed wire machine can produce double twisted barbed wire.
The material of barbed wire :
hot dipped galvanized wire
electric galvanized wire
pvc coated wire
Function of the barbed wire machine
Barbed wire machine can produce barbed wire which is widely used in
national defense
military
railway
highway
agriculture
animal husbandry and other industries.
Feature of the barbed wire machine
High efficiency and inexpensive
Parameter of the barbed wire machine
Item |
CS-A |
CS-B |
CS-C
|
Motor power(kw) |
3 |
2.2 |
2.2 |
|
Main drive shaft speed(r/min) |
402 |
355 |
355 |
|
Strand wire diameter (mm) |
2.2-3.0 |
2.2-3.0 |
1.6-2.8 |
|
Barbed wire diameter (mm) |
1.8-2.2 |
1.8-2.2 |
1.6-2.2 |
Barbed distance(mm) |
76(3")102(4")127(5") |
102(4")127(5") |
102(4")127(5") |
Twist number (pcs) |
3-5 |
7 | |
|
Theoretical output(kg/h) |
70 |
40 |
40 |
Total weight (kg) |
1200 |
1000 |
1000 |
|
Dimension of main part(mm) |
1950*950*1300 |
||
|
Dimension of take- twisting part(mm) |
1760*550*760 |
||
Dimension(mm) |
3100*1100*1150 | 3100*1100*1150 |
