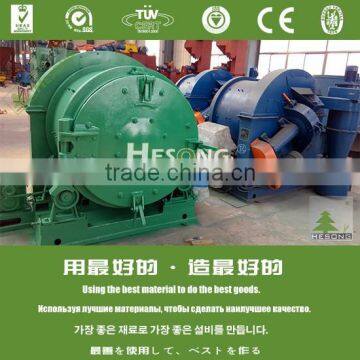

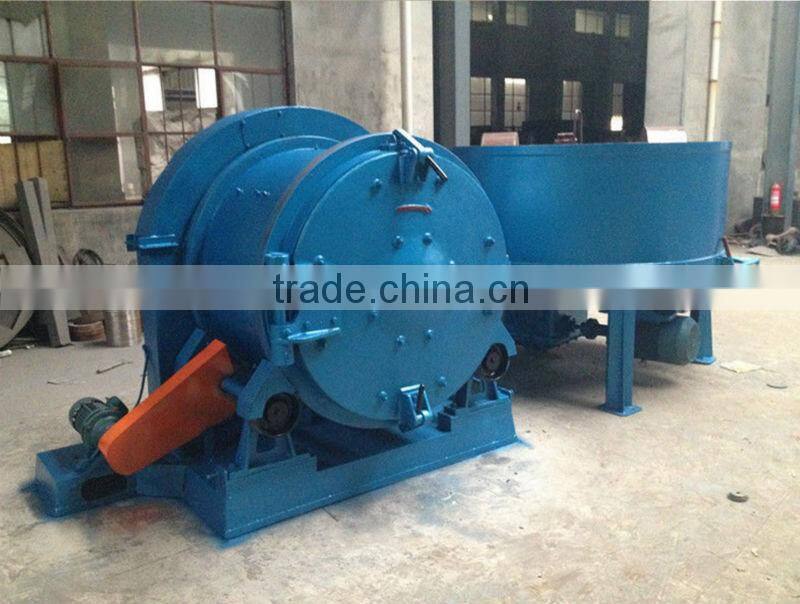

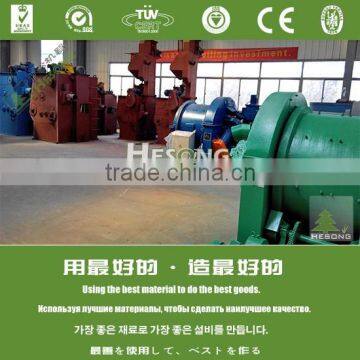

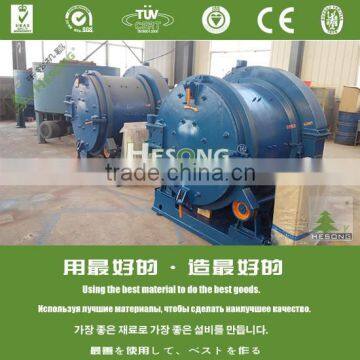

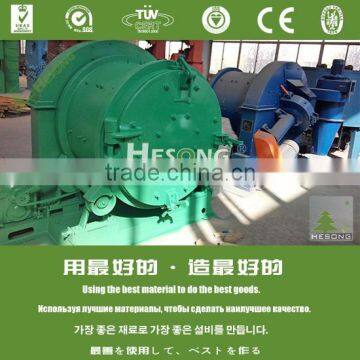

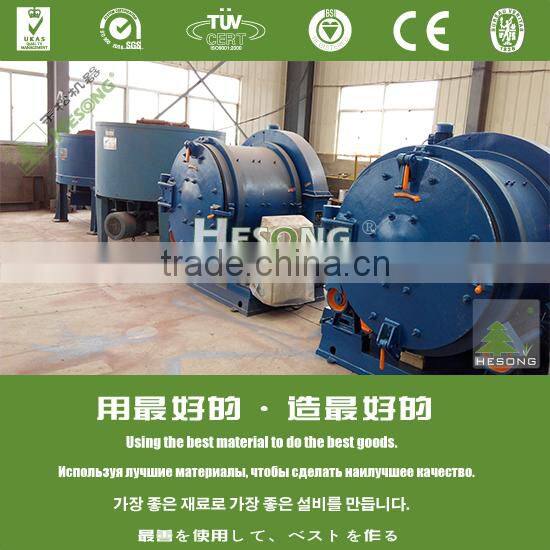

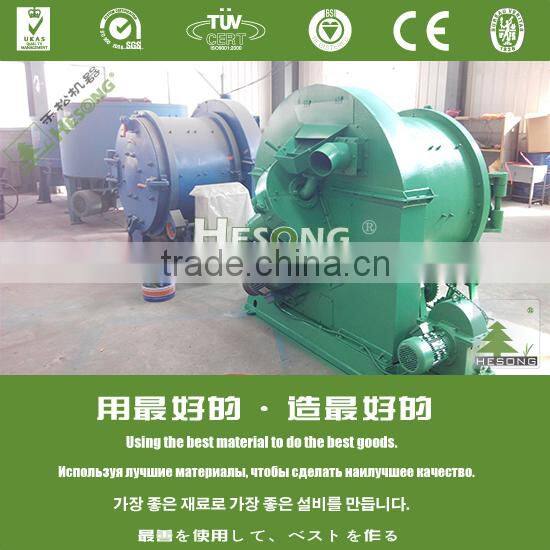

Rotary Barrel Type Abrasive Blasting Machine
1 This type shot blasting machine is suitable for surface rust removal of work pieces in medium or small quantity batch production with many varieties. Put the work pieces into the barrel and blasting it in side way.
2 The high-speed impeller of airless shot blasting machine throws the abrasive to the continuous tumbling castings or forgings in barrel, to remove the greensand or scales on the surface.
3 It cleans evenly and its productivity is high, so it is suitable for cleaning the small work pieces whose weight are under 15g in medium or small-scale casting or forging workshops.
Serial number |
Type Item |
Q3113BI |
Q3113BII |
Q3110BI |
Q3110BII |
|
1 |
Diameter of rolling drum |
mm |
Φ1300 |
Φ1300 |
Φ1000 |
Φ1000 |
2 |
Loading capacity |
kg |
600 |
600 |
300 |
300 |
3 |
Productivity |
kg/h |
2500-3500 |
2500-3500 |
600-1500 |
600-1500 |
4 |
Power(excluding dedusting) |
Kw |
14.5 |
16.3 |
9.7 |
11.9 |
5 |
Maximum weight of workpiece |
kg |
30 |
30 |
15 |
15 |
6 |
Rotational speed of rolling drum |
r/min |
2.5 |
2.5 |
3 |
3 |
7 |
Abrasive flow rate |
kg/min |
160 |
160 |
120 |
120 |
8 |
Ventilation capacity |
m3/h |
2000 |
2800 |
800 |
2000 |
9 |
Dedusting efficiency |
% |
85 |
99 |
85 |
99 |
10 |
Outline dimensions |
mm |
2550*2341*2250 |
4362*2341*2250 |
2078*2458*1861 |
3870*2458*3370 |
Our best service:
We offer designed shot blasting machines to casting, forging and heat treatment, steel structure, container, machinery, shipbuilding, aircraft, locomotive, and machine tool industries.
Our products are widely used in metal processing industry, automobile, shipbuilding, bridge, automobile, machinery industries, real estate, manufacturing and other fields.
Let us know your request , we will recommend or special design one proper machine to you using our professional knowledge.
Waiting for your letter any time !
| The main parts of the drum shot blasting machine as follows: |
|
Barrel and the conveying system The enclosure of the barrel is made of casting iron, inside which the protecting plates are fastened with the bolts. The end-cover is set on one side of the barrel, so it is convenient to load or unload workpiece and it’s easy to replace the protecting plates and maintenance. |
|
Shot recycling and separating device of shot blasting machine The shot-recycling device consists of the screw belt between the protecting plates of the barrel and the enclosure, elevator and the separating sieve. |
|
Dust collector of shot blasting machine The machine adopts dry whirl type dust-collecting device. The separating efficiency is high. For the common green sand, the dust-collecting efficiency is up to 99% and 7μdust can be separated, so the cleaning condition is fine. |
|
Blast wheel of shot blasting machine The part is the main composition, which consists of impeller round plate, blades distributor, control cage, main shaft etc. |
Our machines had approved CE AND ISO , our machines were exported to France, Spain ,Russia, Mexico , Japan,korean, Pakistan,Vietnam,Thailand,Southeast Asia and other countries , so hope you can trust our professional technology and strength
The examine goods in our factory :
Why choose us ?
1. Our company has passed "CE", "ISO9001" and bureau veritas certification .
2. 50 years experience with 20 professional engineers in our Qingdao Foundry Machine Co.,Ltd.
3. So many kinds of foundry machinery ---100 kinds of shot / sand blasting machines and 80 kinds of casting machines.
4. Considerate after-sale service , Technial Assistance and provide installing ,debugging and training on site
5. The company has its own foreign trade marketing team Industrial Corporation, first - class service standards for all clients.
Our certification
We specialize in the design and manufacture of:
Shot Blasting Machine
Sand Blasting Machine and manual sandblasting pot
Foundry sand mixer
Core shooter
Jolt Squeeze Molding Machine
Sand preparation line for foundry (Clay and resin sand )
Automatic Moulding Machine(line)
The key part of shot blasting machine is blast wheel / wheel turbine :
Testing machine for shot blasting machine
With instruments, metalworking, grinder, rolling wire four workshops, complete production facilities.
There are many kinds of Shot Blasting Machines as follows:
Q69 Series Roller Conveyor Type Shot Blasting Machine
KSB Series Hook Type Shot Blasting Machine
Q37 Series Shot Blasting Machine For Engineering Machinery
Q311 Series Drum Type Shot Blasting Machine
Q26/Q36 Series Flatcar Shot (Spray) Type Cleaning Machine
Q76 Series Trolley Type Shot Blasting Machine
Q38 Continuous Pendant Chain Type Shot Blasting Machine
Q48 Step-By-Step Pendant Chain Type Shot Blasting Machine
Q58 Changeable Chain Type Shot Blasting Machine
ZJ0 Series Rotary Table Shot Blasting Machine
ZJ02 Series Spring Shot Blasting Machine
ZJ18 Series Wheel Roller Shot Blasting Machine
QGW Series Steel Tube Outer Wall Shot Blasting Machine
QGN Series Pipe Inwall Shot Blasting Machine
GN Series Belt Type Shot Blasting Machine
Q32 Series Apron Type Shot Blasting Machine
Q35 Series Turntable Type Shot Blasting Machine
QWD Series Wire Mesh Belt Type Shot Blasting Machine
QSHBSeries Rotary Hook Type Shot Blasting Machine
QX Series Wire Rod Shot Blasting Machine
QM Series Special Shot Blasting Machine For Anchor Chain
RE Series Shot Peening Machine For Strengthening For Mill Roll
CND Series Inclined Drum Shot Blasting Machine
SHB Series Turntable Shot Blasting Machine
Ql Series Squirrel-Cage Type Shot Blasting Machine
ZJ076 Series Leaf Spring Shot Peening Machine For Strengthening
SCC Series Spring Shot Peening Machine For Strengthening
SNC Series Bar Shot Blasting Machine
In order to give you the suitable machine , pls provide below message for us :
1. What is your workpiece and the material and the shape ?
2.The Max. Length/Width/Height of the workpiece and the MAX./MIN.weight of your workpiece ?
3.The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
4. The power supply you need( Our China :380V, 3PH, 50HZ)
5. Better to send us the workpiece photo or drawing.
Welcome to contact us or visit our company.
Contact Information:
Ms. Bonnie Peng
Skype: castingglobal
QQ: 1154609933
shot blasting application
