Product feature:
1.Balanced exhaust instant gas water heater with completely sealed intelligently controlling partial burners combustion, combustion fresh air from outside and exhaust gas forced to outside also, can be installed inside bathroom.
2.Low water pressure startup function,big flow rate
3.White powder coating front panel and other color panel available
4.Fully Water control automatic impulse ignition
5.Water drainage anti-freezing protection
6.Multiple-protection safety device and 20 minute built-in timer shutdown protection
7.Colorful LCD temperature display to know water temperature and working status
According to the national standards that only the balanced type is the only installation in the bathroom to allow the use of (other than electric). Therefore, you should chose balanced gas water heater installed in the bathroom is safe.
TECHNOLOGY PARAMETER
Product Name |
INSTANTANEOUS GAS WATER HEATER (Ltr/min)ΔT=25K |
|
Gas type and Rated pressure |
Y/L.P.G 2800Pa |
T/N.G 2000 Pa |
Exhaust Way |
Balanced type with two pipe |
|
Storage / Tankless |
Instant / Tankless |
|
Heating stability time |
≤10seconds |
|
Installation |
Wall Mounted |
|
Thermo efficience |
>=84% |
|
Ignition type |
Automatic Pulse Ignition |
|
Exhaust Pipe Diameter (mm) |
60*90 / 60*100 |
|
Ignition mode (auto) |
AC 220V/50Hz/60Hz & 110V/60Hz |
|
Power(W) |
25~35W |
|
Applicable water pressure |
0.025MPa-0.5MPa |
|
Connection Pipe |
Gas Inlet |
G1/2” 9.5~11.5mm |
Water Inlet |
G1/2” G3/4” |
|
Water Outlet |
G1/2" G3/4” |
|
Packing details
| Capacity | Headload | Product Size | Carton Size | N.W. | G.W. | 20GP/40HQ |
| (L) | (kW) | (mm) | (mm) | (KG) | (KG) | (PCS) |
| 8 | 16 | 520*320*140 | 640*390*210 | 9.3 | 10.2 | 520/1210 |
| 10 | 20 | 520*320*140 | 640*390*210 | 10.2 | 11.2 | 520/1210 |
| 12 | 24 | 590*350*140 | 710*420*210 | 10.8 | 11.8 | 460/1030 |

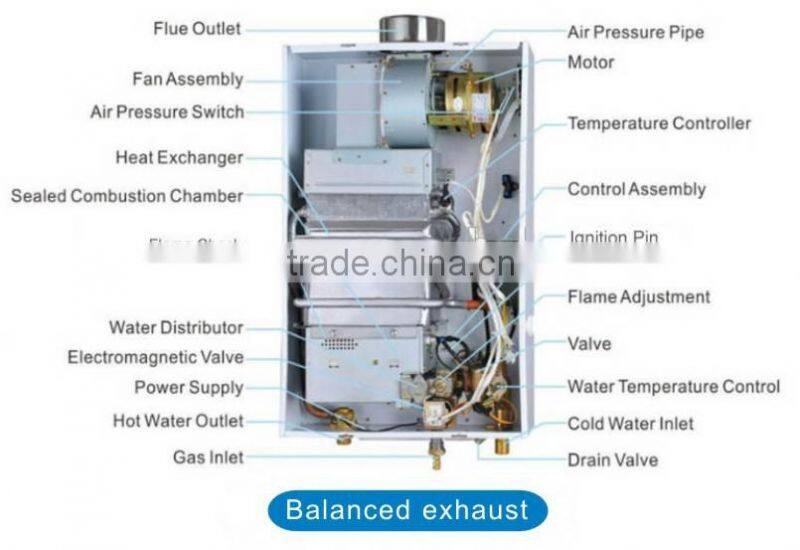

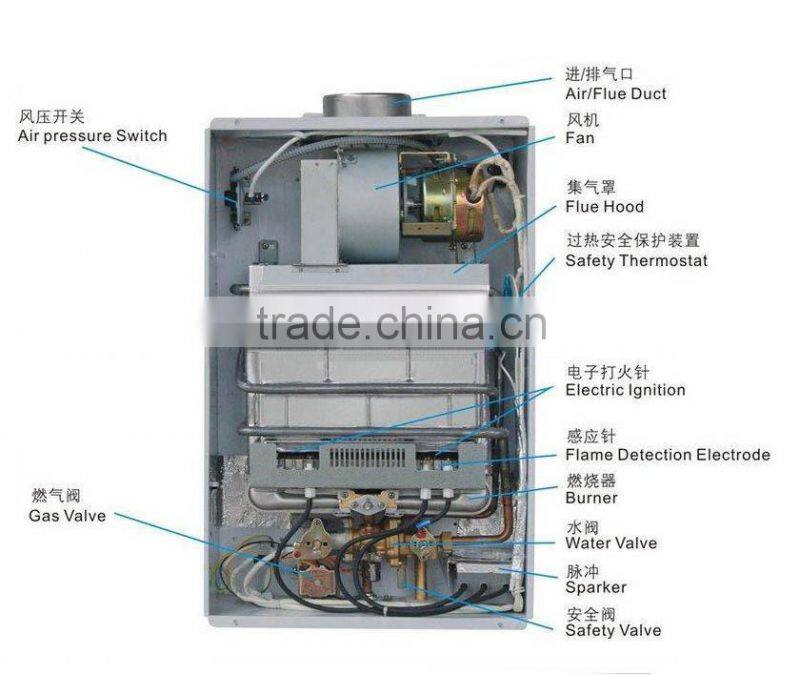

Inner Picture

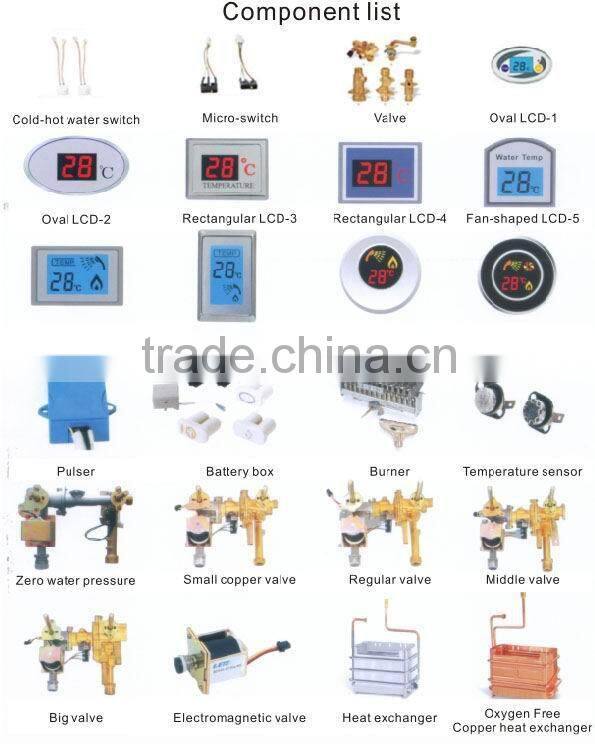

Component list
Our company
Workshop
Quality control and testing equitpment
1). main component (burner, heat exchanger, pulse ignition and valve) 100% test before assembly
2). every products will be 100% tested before packing
3). 5% random sample test on finished product will be made daily
4). 3% random sample test on finished product will be made for each batch of order
Our honour
Quality warranty & after sales service
1. Secure production under ISO9001 & ISO14001 quality system with wide service
2. 1% spare parts free of charge provided in each shipment
3. Free parts for any breakdown with convincing evidence.
If any inquiry or suggestion please do not hesitate to contact with us!
