Help CenterFlue Type Gas Water Heater
Related Products
We are professional in manufacturing all type of gas water heater.
We supply wall mounted balanced type gas water heater with high quality and competitive price
Features
1.Flue exhaust & forced exhaust instant gas water heater
2.Low water pressure startup function,big flow rate
3.Stainless steel panel and other color panel available
4.Fully Water control automatic impulse ignition
5.20 minute built-in timer shutdown protection
6.Flameout protection: numerical control automatic ignition, the auto-cut-off protection will shut off gas supply immediately once flameout accidentally, and no gas leakage;
7.Anti-dry combustion protection: once dry combustion occurs, the protection device will shut off gas supply automatically
8.Over-pressure protection: once water pressure is over than 1.0Mpa, the unit heater will relieve the pressure automatically to avoid damage;
9.Over heating protection: once the water temperature is high than 75 degree the controller will cut off the gas water heater for protection;
10.Water drainage anti-freezing protection
11.Advanced combustion system with the Winter/summer switch to save energy
12.Oxygen depletion safety device optional to keep customer away from dangerous CO
13.Colorful LCD temperature display to know water temperature and working status
Product digram
Technical Data
Product Name |
INSTANTANEOUS GAS WATER HEATER (flue or forced exhaust type )(Ltr/min)ΔT=25K |
|||||
Gas Type and Pressure |
Y/L.P.G 2800Pa |
T/N.G 2000Pa |
||||
Storage / Tankless |
Instant / Tankless |
|||||
Heating status |
Heating≤10seconds Stability ≤10seconds Over Temperature <=2 |
|||||
Installation |
Wall Mounted |
|||||
20M timer& LCD & shower |
Optional |
|||||
Thermo Efficience |
>=84% |
|||||
Ignition Type |
Electrical Pulse Ignition with two ignition pins |
|||||
Vent Type |
Flue exhaust automatic gas discharge |
Forced exhaust |
||||
Exhaust Pipe Diameter |
5L-7L |
8L-12L |
14L |
16L |
8L~16L |
|
Φ90 |
Φ110 |
Φ120 |
Φ130 |
Φ50 Φ60 |
||
Power Supply |
DC Battery:2*1.5v |
AC 220V/50Hz & 110V/60Hz |
||||
Power(W) |
/ |
25~35W |
||||
Water Pressure Range |
0.025MPa-0.8MPa/0.25bar~8bar |
|||||
Connection Pipe |
Gas inlet |
G1/2” 9.5~11.5mm |
||||
Water inlet |
G1/2” G3/4” |
|||||
Water outlet |
G1/2" G3/4” |
|||||
Packing detail
| Capacity | Heatload | Product Size | Carton Size | N.W. | G.W. | 20GP/40HQ |
| (L) | (kW) | (mm) | (mm) | (KG) | (KG) | (PCS) |
| 6 | 12 | 440x300x120 | 530*325*180 | 5.2 | 5.9 | 960/2200 |
| 7 | 14 | 490x310x120 | 575x360x175 | 6.3 | 7.3 | 780/1880 |
| 8 | 16 | 520x320x140 | 610x390x210 | 7.2 | 8.6 | 560/1430 |
| 10 | 20 | 590x340x140 | 710x410x210 | 8.3 | 9.6 | 509/1137 |
| 12 | 24 | 620x340x140 | 740x410x210 | 9.6 | 11.2 | 440/1060 |

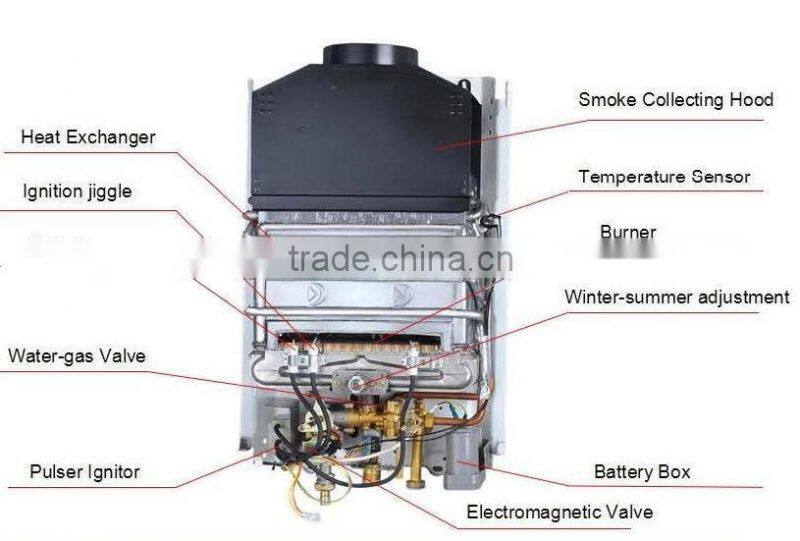

Component list
Our company
Workshop
Quality control and testing equitpment
1). main component (burner, heat exchanger, pulse ignition and valve) 100% test before assembly
2). every products will be 100% tested before packing
3). 5% random sample test on finished product will be made daily
4). 3% random sample test on finished product will be made for each batch of order
Our honour
Quality warranty & after sales service
1. Secure production under ISO9001 & ISO14001 quality system with wide service
2. 1% spare parts free of charge provided in each shipment
3. Free parts for any breakdown with convincing evidence.
If any inquiry or suggestion please do not hesitate to contact with us!
