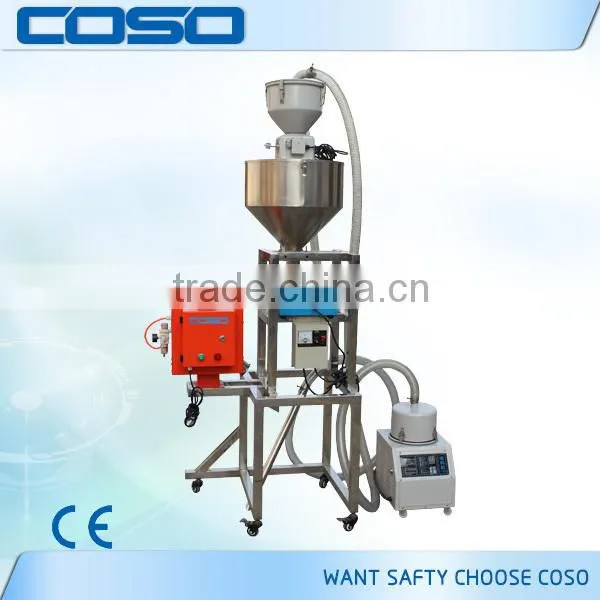

Vacuum feeding machine with metal separator
Product name

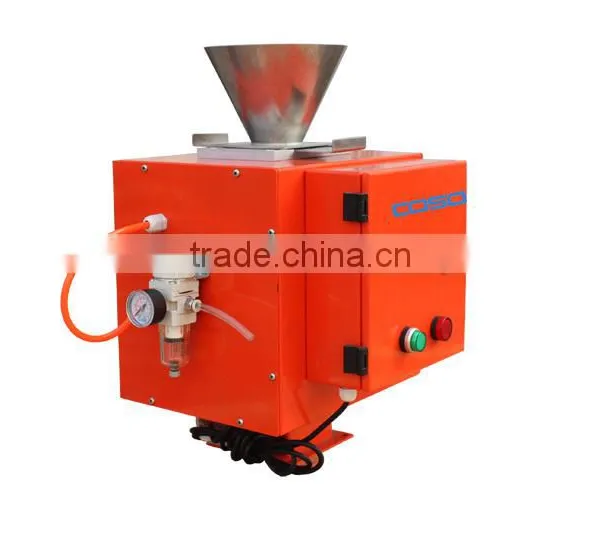

Metal separator combined with vacuum feeding machine
Product profile

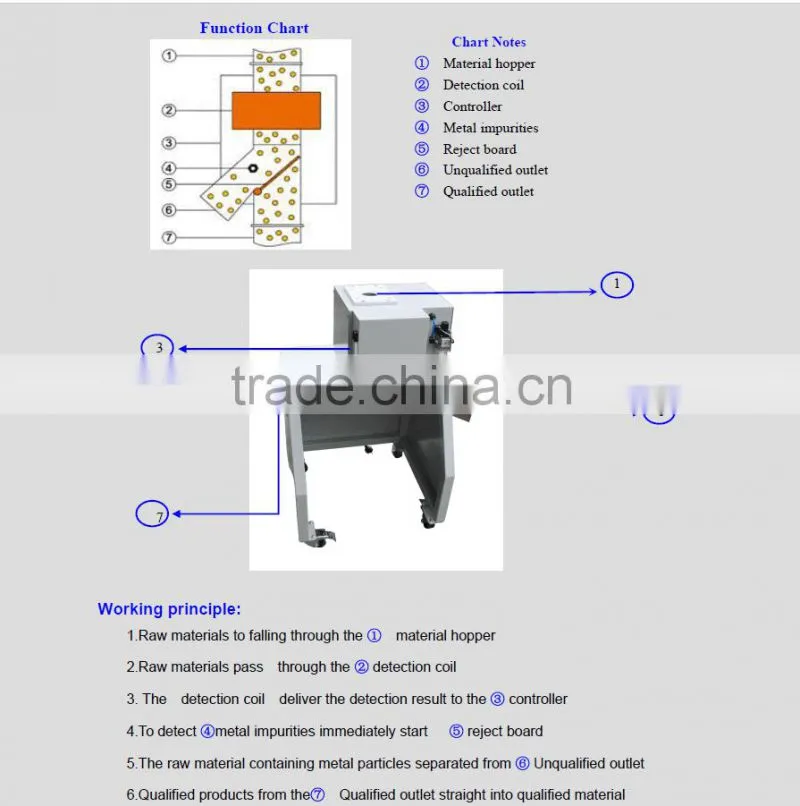

COSO plastic metal separator used for detecting and separating metal contaminations mixed within plastic raw material, including magnetic metal or nonmagnetic metal ( such as copper,aluminum and stainless steel etc.). In the process of waste material broken and recovery, some metal contaminations will mixed within production material inevitably that makes production accident when this kind of material (including metal contaminations) into production line, which adds the time of shutdown and maintenance, adds cost investment and influence the product efficiency.
| The advantages of combination |
|

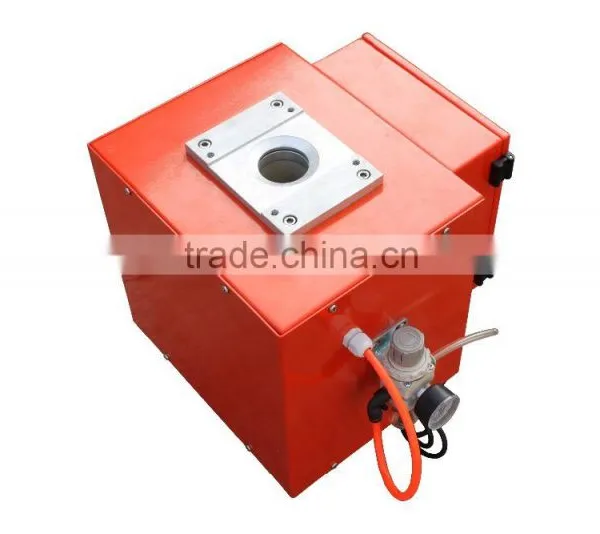

Metal separator spec. and technical parameters
Model |
PEC2005B1-25 |
PEC2005B1-35 |
PEC2005B1-50 |
PEC2005B1-70 |
PEC2005B1-100 |
Diameter of detecting passage |
Φ25mm |
Φ35mm |
Φ50mm |
Φmm |
Φ100mm |
Minimum detectable diameter |
Φ0.2mm |
Φ0.3mm |
Φ0.5mm |
Φ0.7mm |
Φ1.0mm |
Maximum throughput |
250KG/HR |
300-400 KG/HR |
700-800 KG/HR |
1000-1500 KG/HR |
2000-2500 KG/HR |
Working voltage |
220V/50~60Hz |
220V/50~60Hz |
220V/50~60Hz |
220V/50~60Hz |
220V/50~60Hz |
Environment temperature |
-10~+80℃ |
-10~+80℃ |
-10~+80℃ |
-10~+80℃ |
-10~+80℃ |
Disposal time is adjustable |
0.3-5seconds |
0.3-5seconds |
0.3-5seconds |
0.3-5seconds |
0.3-5seconds |
Compressed air |
3~5Bar |
3~5Bar |
3~5Bar |
3~5Bar |
3~5Bar |
L*W*H dimensions (mm) |
318X230X326(mm) |
318X230X326(mm) |
318X230X326(mm) |
378X270X350(mm) |
390X280X385(mm) |
- Special sizes and requirements can be customized according to customer requiremen
3) Advantages:
1). Modularization Design.
Easy to install.
2) 24 Months Guarantee
- 24 months free main parts change (Airmail the broken parts back first)
- Overseas engineers available ( Except the travel expense)
3) Customize
All of our machine can provide the customize, according to your product's features and your workshop enironment,the requirement to match your production line.
2. Packaging and shipping

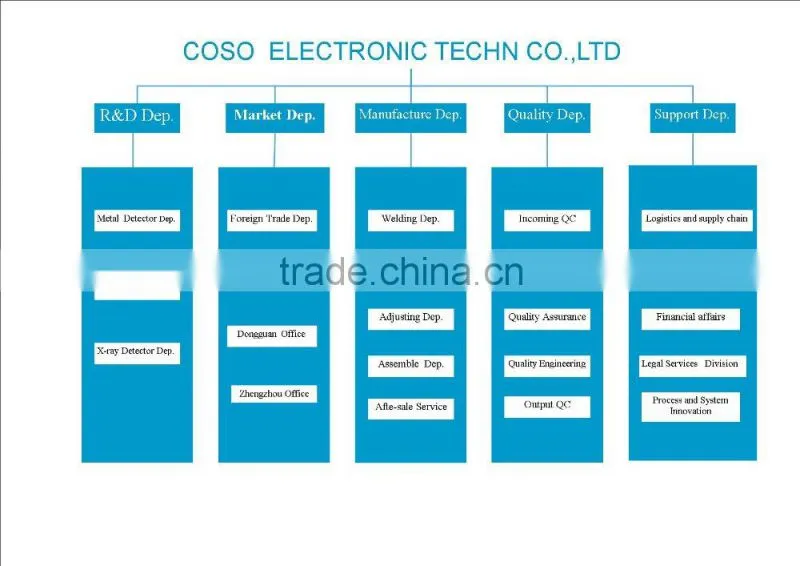

3. Company Information
Operating since 2005

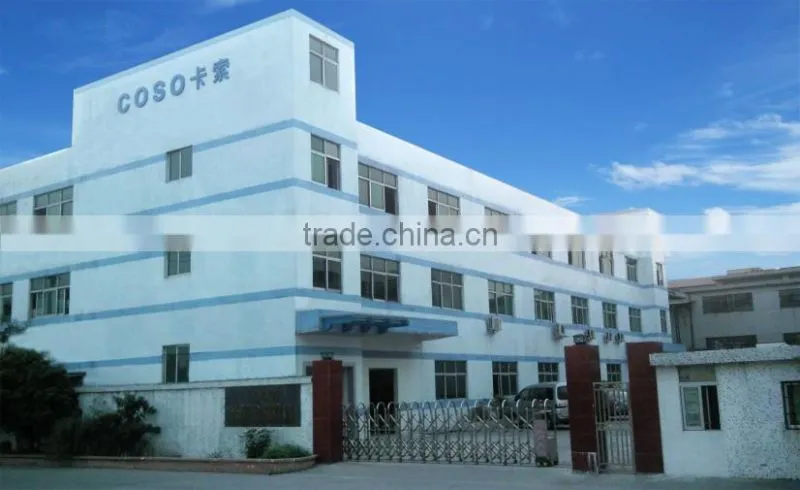

COSO Electronic Tech was established in 2005, with 10 years' experience in the metal detector field in Dongguan, mainland China.
With years' development, now our company covers an area of 10,000 square meters, located in Yuwu village, Dongguan, and has its own
engineering team and very strong after-service team. We are dedicated in product sensitivity, stability and innovation in food industry, shoes,
clothes, plastic industry, pharmaceutical and more. All of our machines are with one year guarantee.
Exporting to the Southeast Asia, Europe, the US and Other CountriesOur service products include metal detectors, check weighers,
metal separators and security inspection equipment. Our products have taken large market shares in domestic as well asoverseas markets
such as SoutheastAsia, Europe, the US, Africa and more.
Our company has been trying to adhere to the enterprise idea of "continuously pursue excellent quality; constantly focus on technology
innovation; consistently adhere to quality service". We, will with our diligence, wisdom and persistence, always work to improve the profession
-alism and reliability of the product.
We pursue to supply customers with effective solutions and quality services. We would like to invite you come and grow with us together.

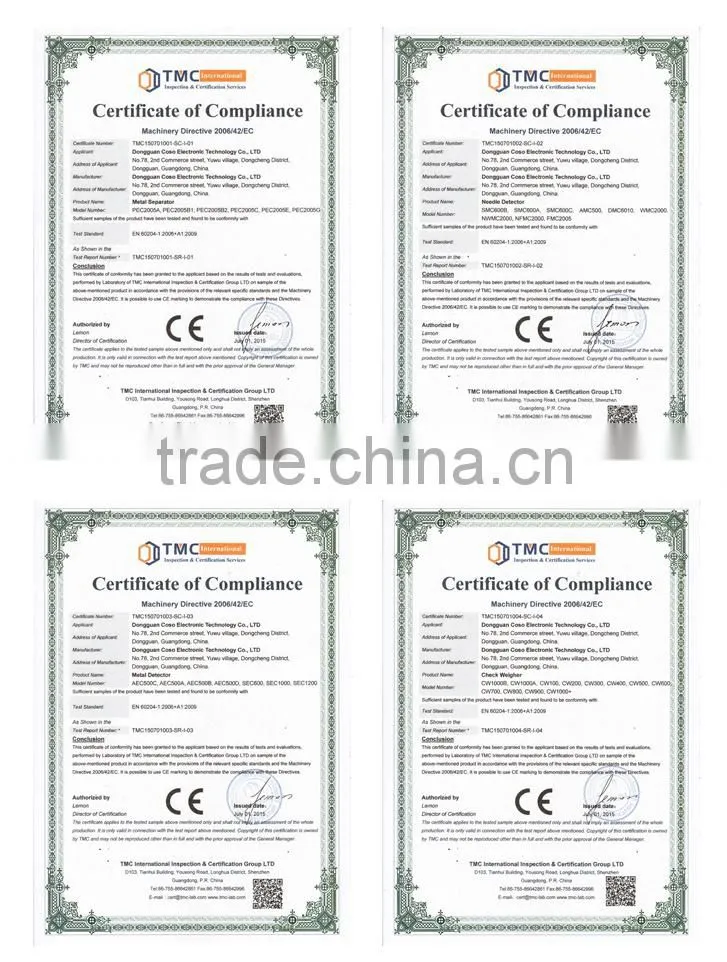

4.CE Certification:
