* Lightweight
* High dimensional stability for complex shapes & thin walls
* Good Corrosion Resistance & Mechanical Properties
* High Thermal & Electrical Conductivity
* High Strength at High Temperatures
At STK, all Aluminum die casting tooling is designed and built in-house to meet both the customer's and STK's own exacting standards. Production processes for each project are carefully planned, documented and monitored utilizing various statistical process control techniques.

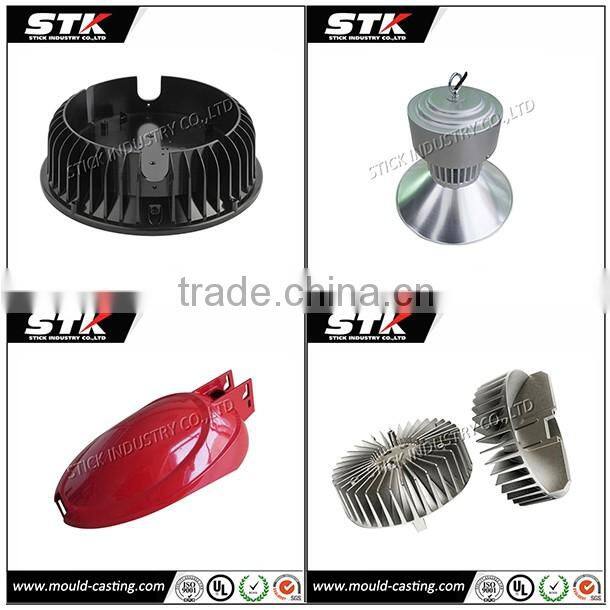

Cast aluminum LED light housing -- Aluminum die casting
Product name |
Cast aluminum LED light housing |
Place of Origin |
Fujian,China(Mainland) |
Brand Name |
OEM |
Process |
Aluminum Die Casting |
Certificate |
ISO:9001-2000 |
Delivery Time |
2-4 weeks |
Applied Material |
ADC10,ADC12,A380,383, B390(YL117) |
Surface Finish |
Sand Blasting, Powder coating, Vibrate Polished etc |
Tolerance |
±0.05mm or as per request |
Application |
Motorcycle, Lighting, Industrial, Furniture etc. |
Machine Size |
125 Tons - 800 Tons |
Package |
Polybag,Foam Carton, Pallet etc |
Applied Software |
Pro-E, Solid Works, US, CAD etc |
Tooling Lead time |
3-5 weeks |
Tooling Lifetime |
50000 shots to 500000 shots |
Weight per unit |
Can cast from 0.02 to 10kgs per piece |
Tolerance |
+/-0.05mm (secondary machining is available for tight tolerance) |
Materials Applied |
ADC10,ADC12, A380, 383, B390 (YL117), YL112, YL104 |
Casting Process |
1)Aluminum Die Casting 2) Machining: CNC turning, milling, drilling, grinding, cutting, reaming and threading 3) Surface Treating 4) Quality Checking and packaging |
Surface Finish |
Shot blasting, Parting line removal, Chrome Plating (Matt/Bright), Nickle plating, Zinc plating, Powder coating, Painting, Anodizing, PVD, E-coating, T-coating |
Our Advantage |
1. In house tooling design and fabrication 2. Owned die casting, polishing and plating workshops |
% |
A380 |
383 |
413 |
Beryllium |
- |
- |
- |
Copper |
3.0-4.0 |
2.0-3.0 |
1.0(max) |
Iron (max) |
1.3 |
1.3 |
2 |
Magnesium |
0.1(max) |
0.1(max) |
0.1 |
Manganese |
0.5(max) |
0.5(max) |
0.35 |
Phosphorus |
- |
- |
- |
Silicon |
7.5-9.5 |
9.5-11.5 |
11.0-13.0 |
Zinc (max) |
3.0 |
3.0 |
0.5 |
Nickel (max) |
0.5 |
0.3 |
0.5 |
Tin |
0.35 (max) |
0.15 (max) |
0.15 |
Titanium |
- |
- |
- |
Others |
0.5 (total) |
0.5 (total) |
0.25 (total) |
Aluminum |
remainder |
remainder |
remainder |
Production Capability
- Automated equipment can handle high volume casting jobs of up to 100,000 pieces per week
- Manual machines for low volume jobs of as little as 500 pieces per year
- Can cast from 0.02 to10kgs
- Single to Multiple Cavities
- Most aluminum die casting alloys are offered such as ADC10,ADC12, A380, 383, B390 (YL117), YL112, YL104
- 10 die casting and gravity casting lines, each with an individual aluminum furnace - this allows us to cast multiple alloys each day
- 7 Sets of cold chamber die casting machines range from 125 tons to 800 Tons, 3 sets of gravity machines
Molds Created On-Site
- In addition to die-casting, Stick Industry is a full-service mold manufacturing facility offering in-house tooling design and production. Where most die-casting facilities only offer mold repair, Stick Industry can create a custom mold on-site, and then simply transfer that mold to the die-casting area.
- Stick Industry is capable to obtain the relevant data to produce molds and product samples according to the latest 3D solid model and a simple sketch or a sample part.
- Plus, we use the most modern multi-axis CNC machine tools for optimum precision
Equipment |
Capacity |
Qty |
Cold Chamber Die Casting Machine |
125 Tons |
2 SETS |
Cold Chamber Die Casting Machine |
250 Tons |
2 SETS |
Cold Chamber Die Casting Machine |
350 Tons |
1 SETS |
Cold Chamber Die Casting Machine |
650 Tons |
1 SETS |
Cold Chamber Die Casting Machine |
800 Tons |
1 SETS |
Gravity Machine |
750mm X 630mm |
3 SETS |
CNC Lathe Machine |
|
10 SETS |
Milling Machine |
|
8 SETS |
Drilling Machine |
|
20 SETS |
Tapping Machine |
|
10 SETS |
Vibrate Polish Machine |
|
3 SETS |
Sand Blasting Machine |
|
1 SETS |
Polishing Machine |
|
30 Sets |
Chrome Plating Line |
Nickle, Chrome (Matt/Bright) |
3 Lines |
