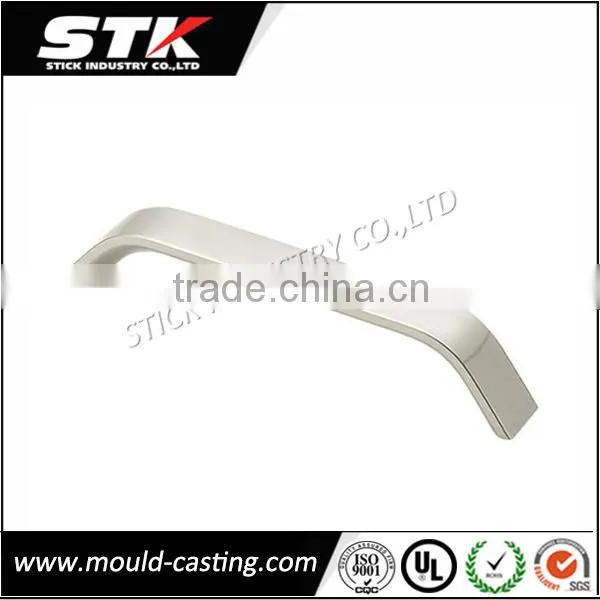

Aluminum Alloy Casting Cabinet Pull HandleUS$ 1 - 3.7MOQ: 500 Pieces -
OEM /ODM Aluminum Die Casting Door HandleUS$ 2 - 15MOQ: 500 Sets
-
Aluminum Cast Molding Hinge to Aluminum DoorUS$ 1 - 3.7MOQ: 500 Pieces
-
Cast Aluminum LED Light HousingUS$ 0.2 - 5MOQ: 500 Pieces
-
Aluminum Alloy A360 A380 ADC6 ADC10 ADC12 Die Casting Quality ChoiceUS$ 0.2 - 5MOQ: 500 Pieces
* Lightweight
* High dimensional stability for complex shapes & thin walls
* Good Corrosion Resistance & Mechanical Properties
* High Thermal & Electrical Conductivity
* High Strength at High Temperatures
At STK, all Aluminum die casting tooling is designed and built in-house to meet both the customer's and STK's own exacting standards. Production processes for each project are carefully planned, documented and monitored utilizing various statistical process control techniques.
Production Capabilities:
- Automated equipment can handle high volume casting jobs of up to 100,000 pieces per week
- Manual machines for low volume jobs of as little as 500 pieces per year
- Can cast from 0.02 to 10kgs
- Single to Multiple Cavities
- Most Aluminum die casting alloys are offered such as ADC10, ADC12, A380, 383, B390 (YL117), YL112, YL104
- 10 die casting & gravity casting lines. Each with an individual aluminum furnace which allows us to cast multiple alloys
- 7 sets of Cold Chamber Die Casting Machines. Range from 125 Tons to 800 Tons. And 3 sets of Gravity Machines.
EQUIPMENT LIST | CAPACITY | QTY |
COLD CHAMBER DIE CASTING MACHINE | 125 TONS | 2 SETS |
COLD CHAMBER DIE CASTING MACHINE | 250 TONS | 2 SETS |
COLD CHAMBER DIE CASTING MACHINE | 350 TONS | 1 SET |
COLD CHAMBER DIE CASTING MACHINE | 650 TONS | 1 SET |
COLD CHAMBER DIE CASTING MACHINE | 800 TONS | 1 SET |
GRAVITY MACHINE | 750mm*630mm | 3 SETS |
| % | A380 | 383 | 413 |
| Beryllium | _ | _ | _ |
| Copper | 3.0-4.0 | 2.0-3.0 | 1.0(max) |
| Iron (max) | 1.3 | 1.3 | 2 |
| Magnesium | 0.1(max) | 0.1(max) | 0.1 |
| Manganese | 0.5(max) | 0.5(max) | 0.35 |
| Phosphorus | _ | _ | _ |
| Silicon | 7.5-9.5 | 9.5-11.5 | 11.0-13.0 |
| Zinc (max) | 3.0 | 3.0 | 0.5 |
| Nickel(max) | 0.5 | 0.3 | 0.5 |
| Tin | 0.35(max) | 0.15(max) | 0.15 |
| Titanium | _ | _ | _ |
| Others | 0.5(total) | 0.5(total) | 0.25(total) |
| Aluminum | remainder | remainder | remainder |
Production Process:
| Tooling Leadtime: | 3-6 weeks | |
| Tooling Lifetime: | 50000 shots to 500000 shots | |
| Weight per unit: | Can cast from 0.02 to 5kgs per piece | |
| Tolerance: | +/-0.05mm (secondary machining is available for tight tolerance) | |
| Materials Applied: | ADC10,ADC12, A380, 383, B390 (YL117), YL112, YL104 | |
| Zinc Casting Process: | 1)Aluminum Die Casting | |
| 2) Machining: CNC turning, milling, drilling, grinding, cutting, reaming and threading | ||
| 3) Surface Treating | ||
| 4) Quality Checking and packaging | ||
| Surface Finish: | Shot blasting | |
| Parting line removal | ||
| Bright/Matt Chrome Plating | ||
| Nickle Plating | ||
| Brushed Nickle | ||
| Golden Plating | ||
| Zinc Plating | ||
| Powder coating | ||
| Painting | ||
| PVD | ||
| Our Advantage: | 1. In house tooling design and fabrication | |
| 2. Owned die casting, polishing and plating workshops | ||
| 3. Advanced equipment and excellent R& D Team | ||
| 4. A broad variety of ODM& OEM product range | ||
| 5. Strict quality Control System | ||
Molds Created On-Site
- Stick Industry is a full-service mold manufacturing facility
- Stick Industry offers in-house tooling design and production.
- Stick Industry creates a custom mold on-site, then transfers the mold to die-casting area.
- Stick Industry is capable to obtain the relevant data to produce molds and product samples according to the latest3-D solid model and a simple sketch or a sample part.
- Stick Industry uses the most modern multi-axis CNC machine tools for optimum precision and accuracy in tooling.
Our Advantage:
l In house tooling design and fabrication
l Owned die casting, polishing and plating workshops
l Advanced equipment and excellent R& D Team
l A broad variety of ODM& OEM product range
l Strict quality Control System
State-of-the-Art Cast Finishing
The STK facility offers a complete in-house, independent machining facility with the latest CNC mills and lathes to provide fully machined castings. Our sanding and surface finishing capabilities include:
u Short Blasting
u Parting Line Removal
u Chrome Plating
u Powder Coating
u Painting
u Anodizing
u Passivation
u E-Coating
u T-Coating
Ms Ivy Lo
XIAMEN STICK INDUSTRY CO., LTD
Unit 05C,5th Floor,Hai Fu Business Center,
A 597 Shi Shui Road,Xiamen,China. Post Code:361008
Pho: (86)592-5209671, Fax: (86)592-5209672
