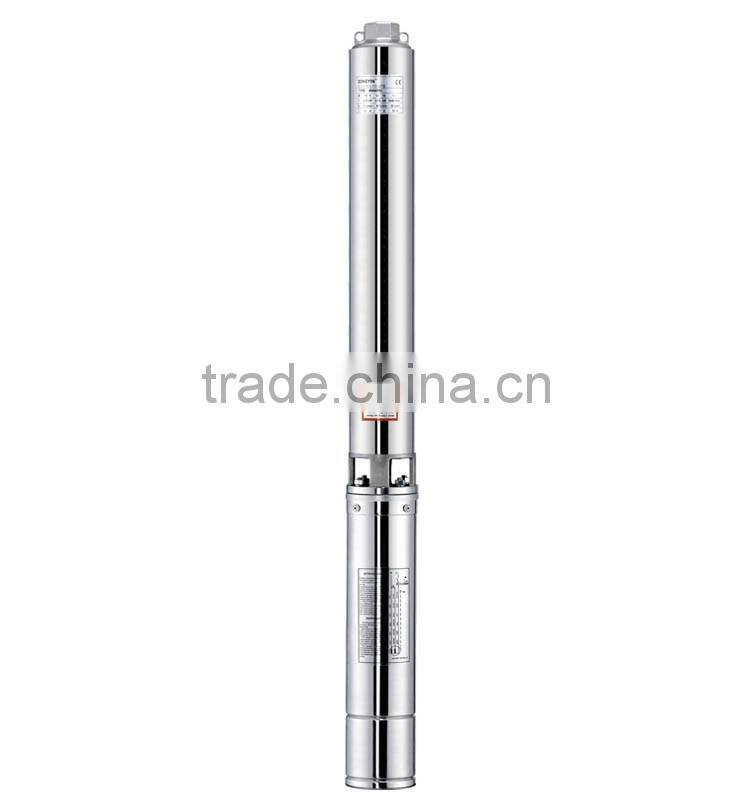

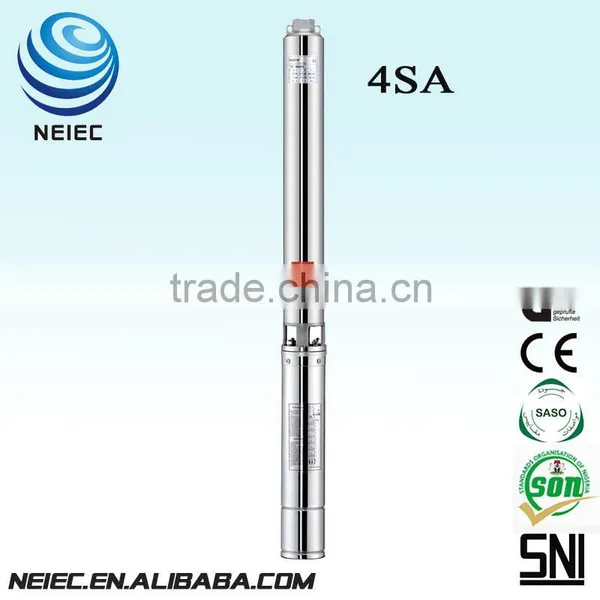

Submersible Deep Well Water Pump 4SA/2

Submersible Deep Well Water Pump 4SA/2 photo-1
US$ 50 - 50 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
4SA
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name OEM
Model Number 4SA
Theory Centrifugal Pump
Structure Multistage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other
Pressure High Pressure
Application Submersible
Applications

For water supply from deep wells or resevoirs

For domestic use,for civil and industrial applications

For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃

Maximum sand contect:0.25%

Maximum immersion:80m

Minimum well diameter:4''


Motor and pump

Rewindable motor

Single-phase:220-240V/50HZ

Three-phases:380-415V/50HZ

Equip with start control box or digital auto-control box

Pumps are designed by casing stressed

Curve tolerance according to ISO 9906

Components
Matreial
Pump external casing
AISI 304  SS
Delivery casing
AISI 304 SS
Suction lantern
AISI 304 SS
Diffuser
Plastic.PC
Impeller
Plastic.POM
Shaft
AISI 304 SS
Shaft coupling
AISI 304 SS
Wear ring
AISI 304 SS
Motor external casing
AISI 304 SS
Top chock
1.Cast-CU ASTM C85500
2.Cast-iron ASTM NO.30
Bottom support
AISI 304 SS
Mechanical seal
Special seal for deep well(Graphite-Ceramic/TC)
Shaft
AISI 304 SS-ASTM5140
Bearing
NSK
Seal lubricant oil
Oil for food machinery
