VX Series Electric Submersible Waste Water Sewage Pump

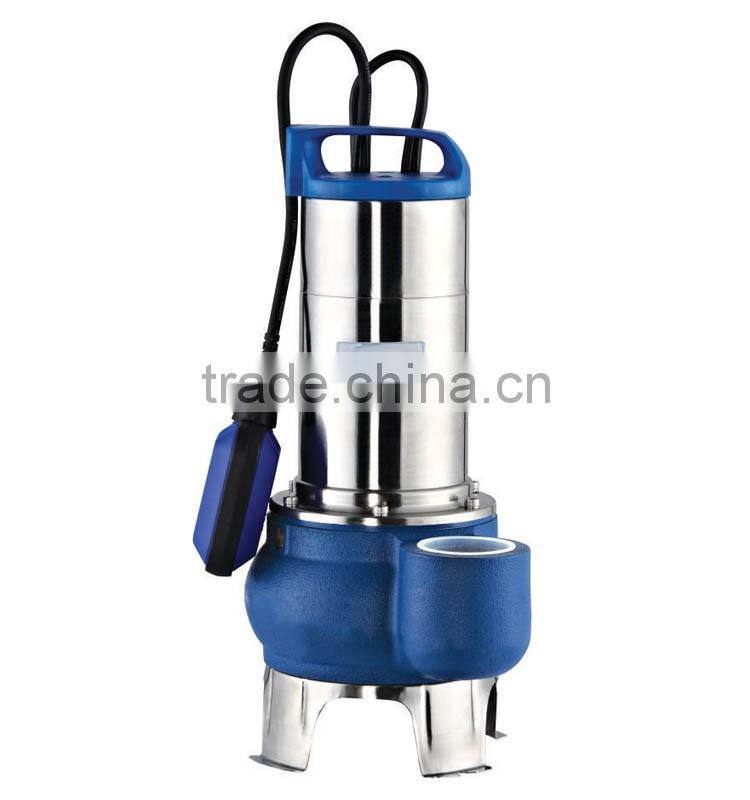

VX Series Electric Submersible Waste Water Sewage Pump photo-1
US$ 50 - 50 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
VX
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name OEM
Model Number VX
Theory Centrifugal Pump
Structure Screw Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other
Pressure High Pressure
Application Submersible
Applications

Sewage treatment plants

Industrial draining

Agriculture irrigation

Operating conditions

Maximum fluid temperature up to +40℃

Maximum sand contect:35MM

Maximum immersion:10m

Motor and pump

Rewindable motor

Single-phase:220-240V/50HZ

Three-phases:380-415V/50HZ

It's available to equip with ploating switch

Curve tolerance according to ISO 9906

Components
Matreial
Delivery casing
AISI 304 SS
Suction lantern
AISI 304 SS
Diffuser
1.AISI 304 SS   2.Cast-iran
Impeller
AISI 304 SS
Motor external casing
AISI 304 SS
Top chock
AISI 304 SS
Bottom support
AISI 304 SS
Mechanical seal
Special seal for deep well(Graphite-Ceramic/TC)
Shaft
AISI 304 SS-ASTM5140
Seal lubricant oil
Oil for food machinery
