FF6-600 Juice Filling Machine Prices, Semi Automatic Juice Filling Machine, Small Juice Filling Machine

FF6-600 Juice Filling Machine Prices, Semi Automatic Juice Filling Machine, Small Juice Filling Machine thumbnail-1
FF6-600 Juice Filling Machine Prices, Semi Automatic Juice Filling Machine, Small Juice Filling Machine thumbnail-2
FF6-600 Juice Filling Machine Prices, Semi Automatic Juice Filling Machine, Small Juice Filling Machine thumbnail-3
FF6-600 Juice Filling Machine Prices, Semi Automatic Juice Filling Machine, Small Juice Filling Machine thumbnail-4

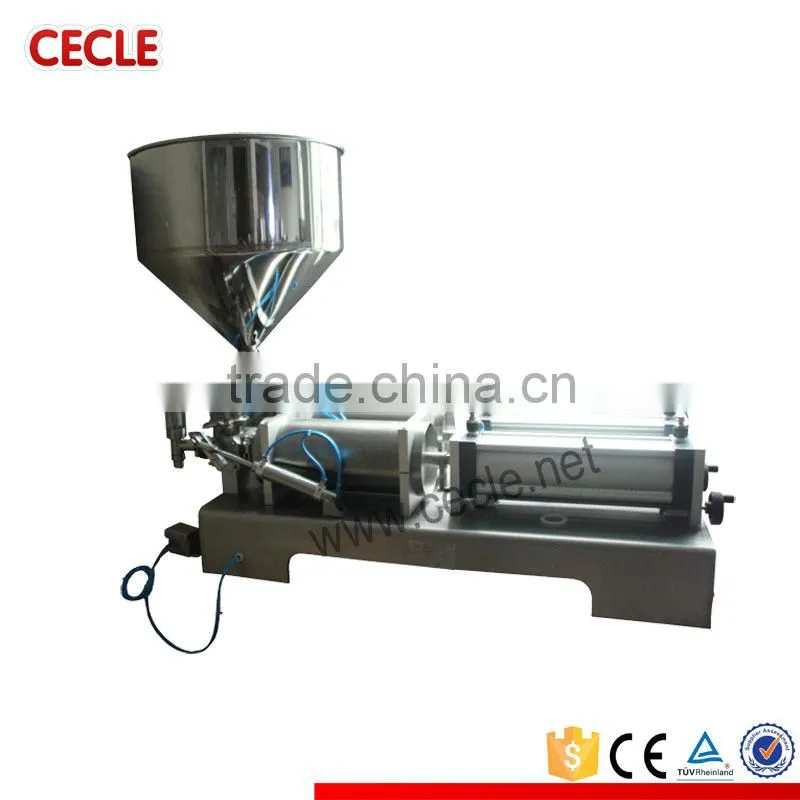

FF6-600 Juice Filling Machine Prices, Semi Automatic Juice Filling Machine, Small Juice Filling Machine photo-1
FF6-600 Juice Filling Machine Prices, Semi Automatic Juice Filling Machine, Small Juice Filling Machine photo-2
FF6-600 Juice Filling Machine Prices, Semi Automatic Juice Filling Machine, Small Juice Filling Machine photo-3
FF6-600 Juice Filling Machine Prices, Semi Automatic Juice Filling Machine, Small Juice Filling Machine photo-4
US$ 600 - 3,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:
Bags, Barrel, Bottles, Cans, Pouch, Stand-up Pouch
Contact Supplier Request Quote Chat Now
Wenzhou T&D Packaging Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type Bags, Barrel, Bottles, Cans, Pouch, Stand-up Pouch
Packaging Material Glass, Plastic
Automatic Grade Semi-Automatic
Driven Type Pneumatic
Voltage 220v 50Hz/60Hz
Power none
Place of Origin Zhejiang, China
Brand Name T&D
Model Number FF6-600
Dimension(L*W*H) 101*33*35+41*41*50cm(30L hopper)
Weight 50kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

juice filling machine prices, semi automatic juice filling machine, small juice filling machine



FF6-600



Product Description



FF6-600 juice filling machine prices, semi automatic juice filling machine, small juice filling machine



Features
  • Adopt Airtac pneumatic components from Taiwan, full pneumatic drive does not need  electrical power, safety explosion-proof type, simple operation, high filling accuracy;
  • The machine body using 201 stainless steel, and use food grade of 304 stainless steel material contact parts of the machine, comply with the food safety; the material contact  parts can optional 304 or 316 stainless steel;
  • Stainless steel valve system design;
  • Piston type filling, can be operated by a foot pedal or by automatic timer, quick release nozzle and feed pipe, could transfer between semi-auto or automatic;
  • Filling volume, filling speed can be adjustable, bottom close positive shutoff nozzles to ensure the no drip free operation;
  • Extremely easy to clean and maintain;
  • Small footprint for simple bench mounting;
  • Can optional the machine model: 10-150ml 20-30ml 50-600ml 120-1200ml 260-2600ml 500-5000ml;
  • One head with one cylinders, filling head optional single head, two head;
  • Conform to GMP;
Application:
  • They are most commonly applicable for pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticides and other industrials;
  • Typical application: use for filling liquid and paste material, such as water, oil, juice, detergent, sauce, salad, butter, margarine, ketchup, jam, cream, honey, shampoo etc
  • Suitable for various packing such as bottle, jar, can, cup, bag, barrels, etc;
Note:
1, We can customize the special size according to customer's demands.
2, The machine disposition can make the choice.



Parameters:

Model
FF6-150
FF6-300
FF6-600
FF6-1200
FF6-2600
FF6-5000
Filling range
10-150ml
20-300ml
50-600ml
120-1200ml
260-2600ml
500-5000ml
Hopper Volume
30L
30L
30L
30L
80L
80L
Control mode
Full pneumatic
Air pressure
0.4-0.6mpa
Filling speed
10-40times/min
Filling accuracy
within 1%
Packing dimension
101*33*35cm + 41*41*50cm/ 122*40*39cm + 54*54*54cm
Machine weight
35-80kg


Terms:

1)  Original: made in China;

2)  Package: Standard export packing;

3)  Loading port: Ningbo;

4)  Payment terms: 100% by T/T;

5)  Delivery time: within 7 days after received the payment;

6)  Validity: this offer is valid in 30 days from the offered date;

7)  Manual in English;

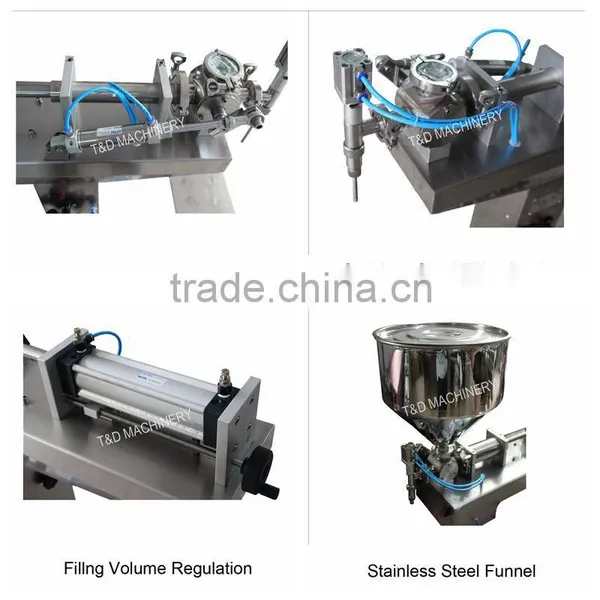

Detailed Images



Details



FF6-600 juice filling machine prices, semi automatic juice filling machine, small juice filling machine



Samples



FF6-600 juice filling machine prices, semi automatic juice filling machine, small juice filling machine



FF6-600 juice filling machine prices, semi automatic juice filling machine, small juice filling machine



FF6-600 juice filling machine prices, semi automatic juice filling machine, small juice filling machine

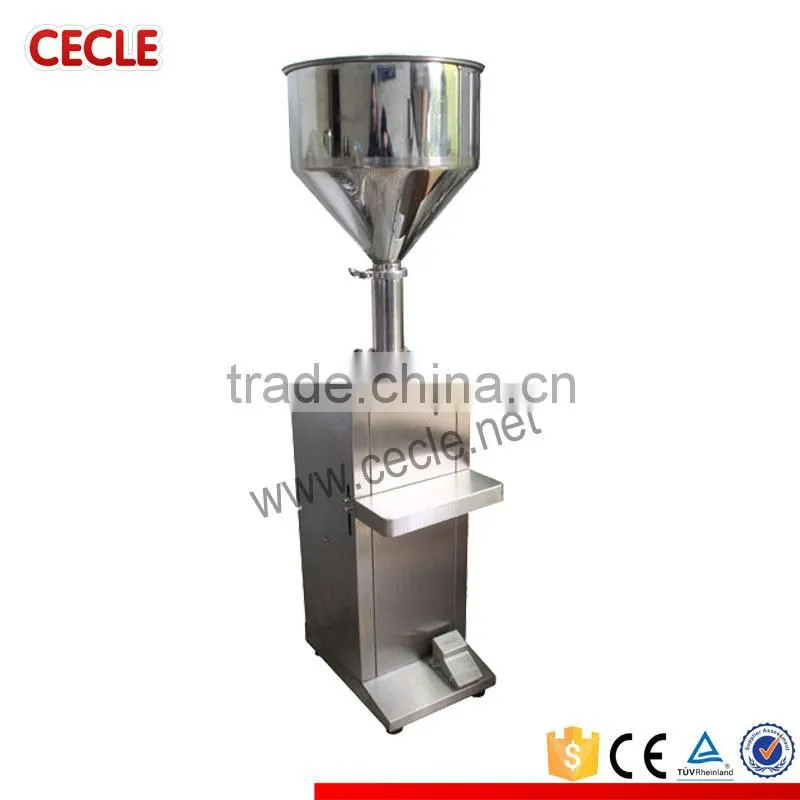

Related Products

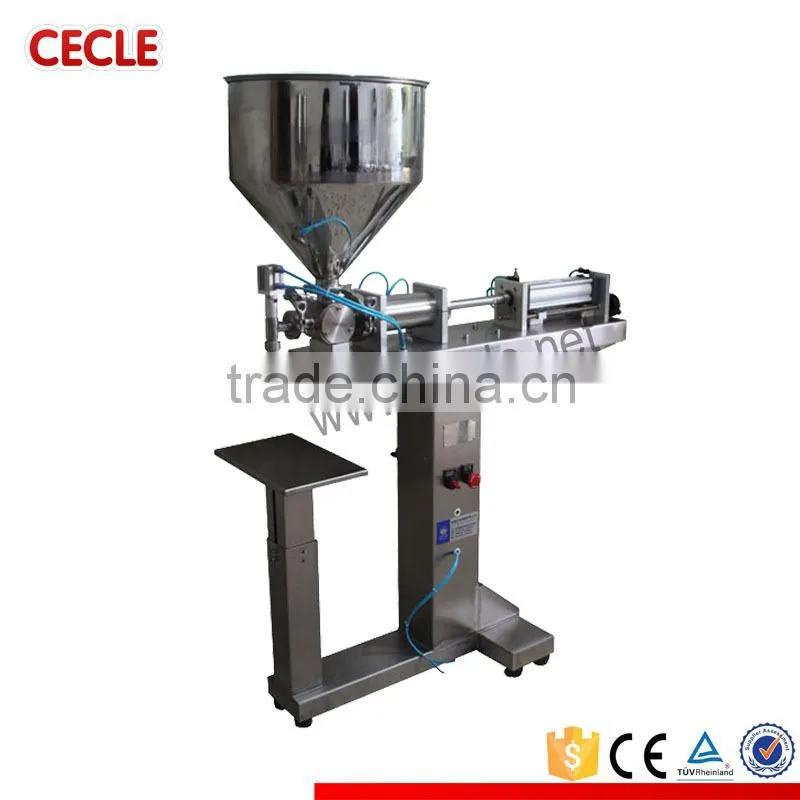

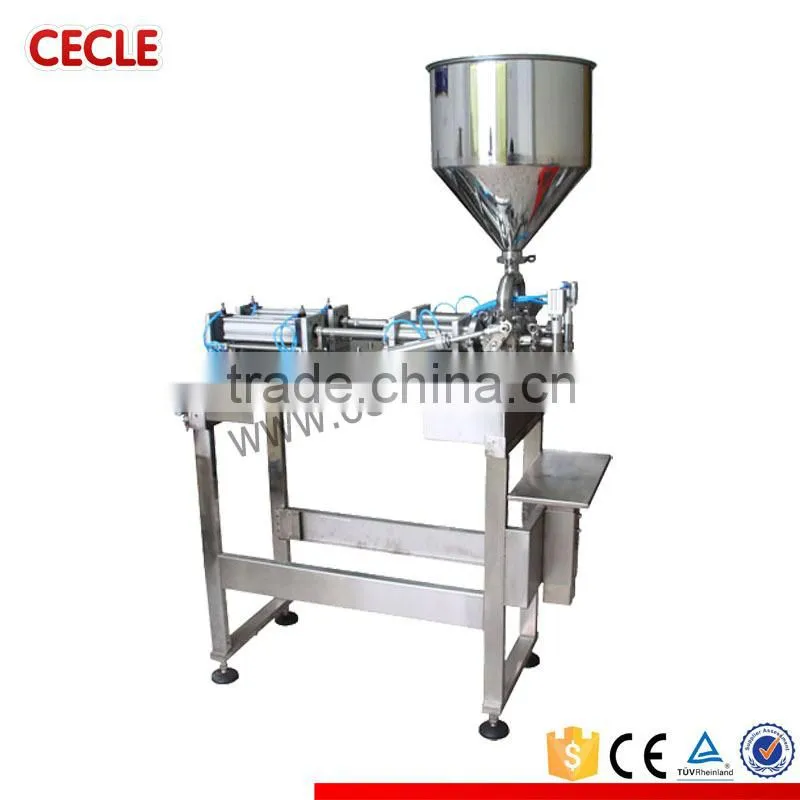

FF3 Paste filling machine with foot shelf    /    DFF3 Double head paste filling machine with foot shelf



FF6-600 juice filling machine prices, semi automatic juice filling machine, small juice filling machine       FF6-600 juice filling machine prices, semi automatic juice filling machine, small juice filling machine

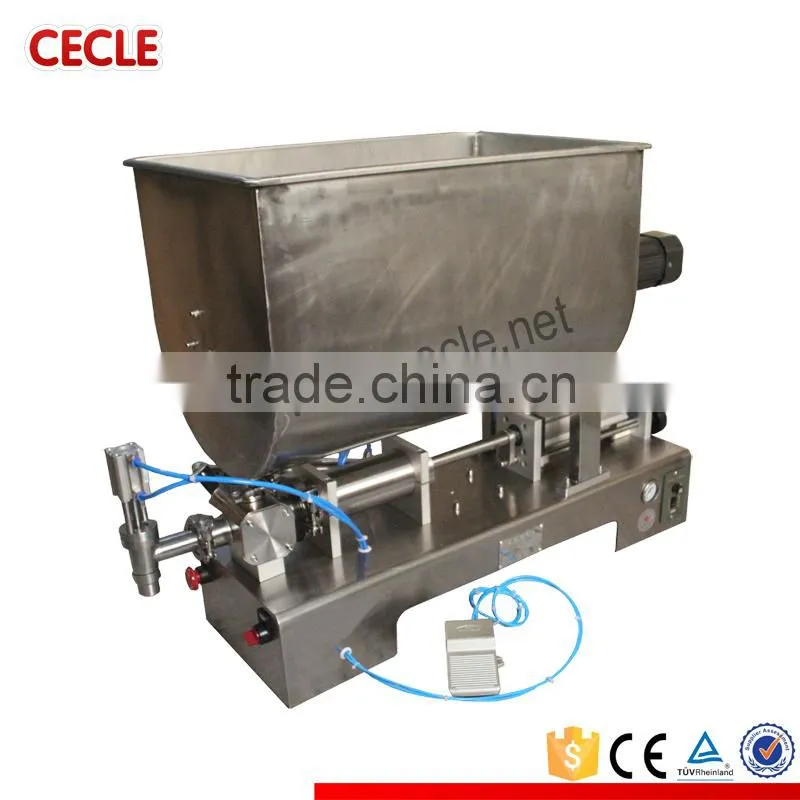

DFF6 Double head paste filling machine horizonal type  /  FF4 Vertical paste filling machine for high viscous material



FF6-600 juice filling machine prices, semi automatic juice filling machine, small juice filling machine         FF6-600 juice filling machine prices, semi automatic juice filling machine, small juice filling machine

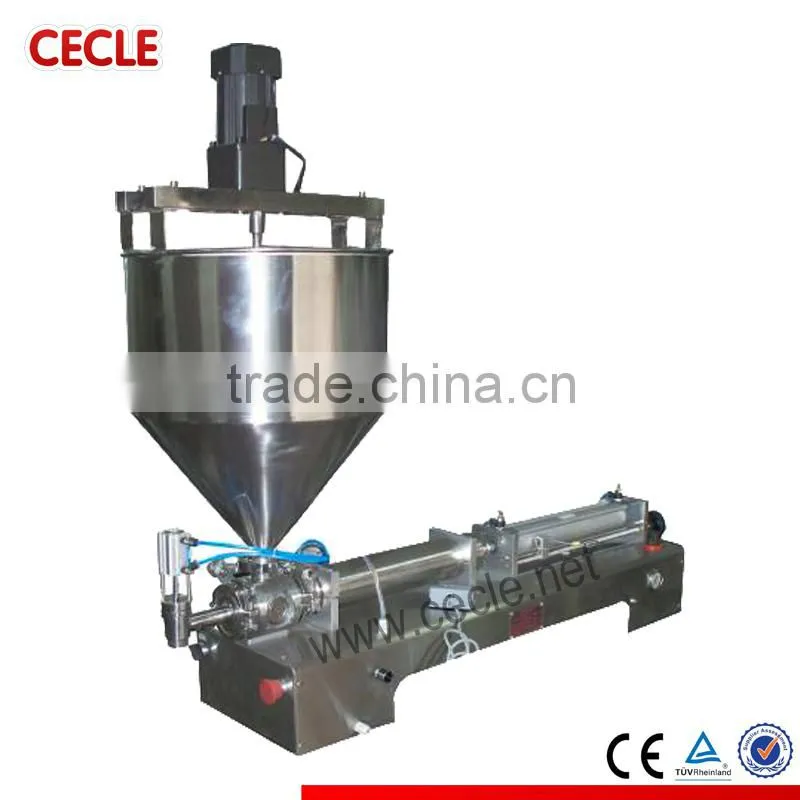

FF6C Paste filling machine with heater and mixing hopper /   FF6B Paste filling machine with big mixing hoppper 80L



FF6-600 juice filling machine prices, semi automatic juice filling machine, small juice filling machine          FF6-600 juice filling machine prices, semi automatic juice filling machine, small juice filling machine





Certifications



CE Certification



FF6-600 juice filling machine prices, semi automatic juice filling machine, small juice filling machine

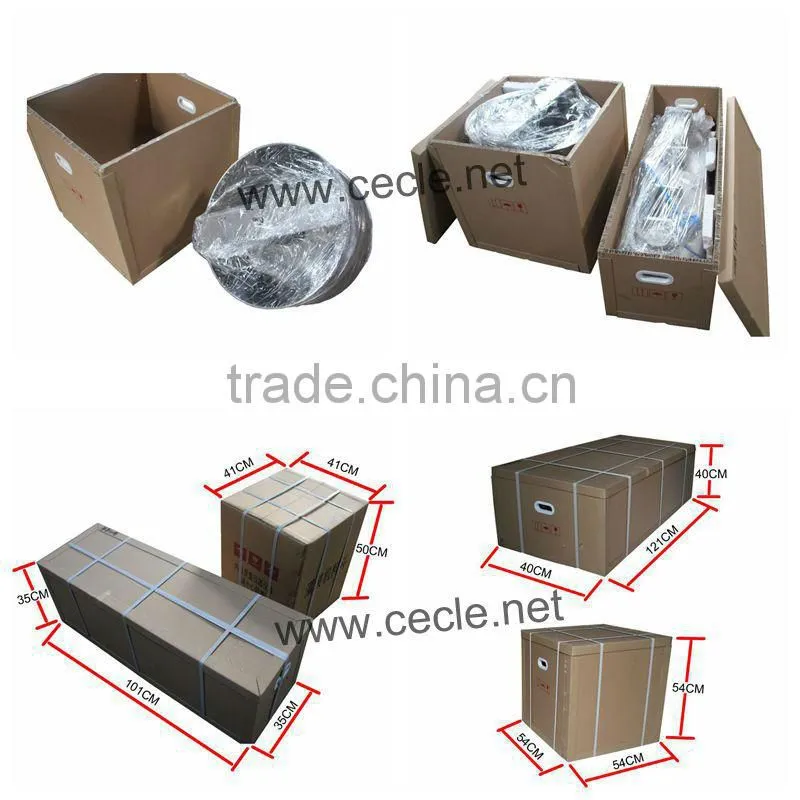

Packaging & Shipping

 FF6-600 juice filling machine prices, semi automatic juice filling machine, small juice filling machine

All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.



All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.


Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety;
Shipping methods: 1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, Fedex, UPS etc



Our Services



We are professional manufactory, produce in hot stamping machine, heat transfer machine, filling machine, packaging machine, etc. And we produces many types of this machine. We can provide OME/ODM service, we base our business on offering products and services that people want and need, as well as continuing to develop an innovative approach to marketing.




Quality guarantee:


1. Each machine is manufactured by our professional staff production and manufacturing;

2. Production process through strict supervision and review, use a lot of the high parts at home and abroad, to ensure good quality;
3. Use a lot of the food grade of 304 stainless steel to ensure food safety, can choose the material contact parts use 304 stainless steel or whole machine use;
4. The warranty time is one year. Under warranty, if is according to the introduction of the description of the use of case, any damage to the product, we will provide free maintenance service or free replacement, but need customer pay for the freight from China to local place. If you need our engineers to help, will be paid by customer of travel back and forth.
5. Outside the warranty period, we continue to provide lifetime maintenance services.



Company Information



Factory photo



FF6-600 juice filling machine prices, semi automatic juice filling machine, small juice filling machine



FAQ



1)  How to choose the most suitable for my machine?



Answer: First of all, tell us what is the filling material of your product, such as the liquid material, paste material, salad, and high viscosity material etc, and then tell us your filling range of products, we will recommend suitable machine to you according to your product.



2) Do you have manual or operation video for us to know more about the machine?



Answer: Yes, we will send the video link of the operating the machine to the customer, we have put all of the video on youtube website, convenience of our customers to see. After customers to buy the machine, we will configuration instructions in English to customer, together with the machine packaging.



3) If the machine some spare parts damaged, how to solve the problem?



Answer: Under warranty, first of all please send pictures or shoot video tell us machine damaged parts, after the two sides confirmed, we can send the spare parts of the machine to you for free, the freight shall be the responsibility of the buyer, or send to you with next order from us.


Any other question please feel free to contact me, we will try to our best to help you.
