DF3-5000 Semi Automatic Wine Bottle Filling Machine

DF3-5000 Semi Automatic Wine Bottle Filling Machine thumbnail-1
DF3-5000 Semi Automatic Wine Bottle Filling Machine thumbnail-2
DF3-5000 Semi Automatic Wine Bottle Filling Machine photo-1
DF3-5000 Semi Automatic Wine Bottle Filling Machine photo-2
US$ 2,100 - 2,700 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:
Bags, Barrel, Bottles, Cans, Pouch, Stand-up Pouch
Contact Supplier Request Quote Chat Now
Wenzhou T&D Packaging Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type Bags, Barrel, Bottles, Cans, Pouch, Stand-up Pouch
Packaging Material Glass, Plastic
Automatic Grade Semi-Automatic
Driven Type Pneumatic
Voltage 220v/50Hz or 110v/60Hz(Optional)
Power 0kw
Place of Origin Zhejiang, China
Brand Name T&D
Model Number DF3-5000
Dimension(L*W*H) 115*66*110cm
Weight 60kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

semi automatic wine bottle filling machine



DF3-5000

Product Description



DF3-5000 semi automatic wine bottle filling machine



Features

  • Adopts AirTAC Pneumatic components from Taiwan, explosion-proof type, simple operation, high filling accuracy fewer than 1%;
  • The machine BODY is made of 201 STAINLESS STEEL, and CONTACTING PARTS are made of 304 STEEL.
  • Stainless steel valve system design;
  • Piston type filling, can be operated by PEDAL SWITCH or by automatic timer.
  • Filling volume, filling speed is ADJUSTABLE.
  • Extremely easy to clean and maintain;
  • Filling volume ranges from 10-150ml 20-30ml 50-600ml 120-1200ml 260-2600ml 500-5000ml;
  • One head with one cylinders, filling head optional single head, two heads;
  • Conform to GMP;





Applications

  • They are most commonly applicable for pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticides and other industrials;
  • Typical application: used for filling liquidity is good material, such as water, oil, juice(no particles), liquid detergent, sauce, wine, liquid cream, etc
  • Suitable for various packing such as bottle, jar, can, cup, bag, barrels, etc;

Options

Filling volume, filling heads and 316 stainless steel are alternative.





Parameters

Model DF3-150 DF3-300 DF3-600 DF3-1200 DF3-2600 DF3-5000
Filling range 10-150ml 20-300ml 50-600ml 200-1200ml 500-2600ml 1000-5000ml
Air pressure range 0.4~0.6mpa
Filling speed 25-60pcs/min
Filling precision 1%
Dimension 115*66*110cm/115*86*110cm
Weight 60kg-80kg

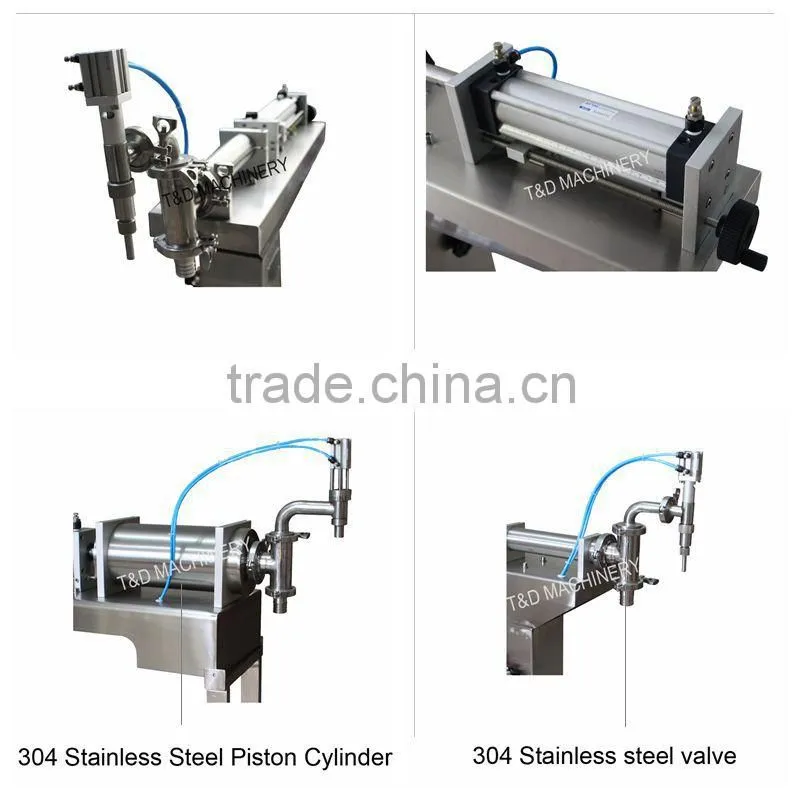

Details



DF3-5000 semi automatic wine bottle filling machine





Samples









Packaging & Shipping

DF3-5000 semi automatic wine bottle filling machine



Packaging details Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety;
Shipping methods 1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, Fedex, UPS etc



Shipping Port: Port of Ningbo



DF3-5000 semi automatic wine bottle filling machine

Our Services
Quality guarantee&Service


1. Each machine is manufactured by professional experienced staff.



2. Production process is under strict supervision and adopts China and world toppest production engineering.

3. The warranty time is one year. Quick-wear part is excluded.

4. When warranty date expires, lifetime maintenance service is provided.


5. We also offer PVC, PE films, stamping dies, hot foil papers etc.



Price governs while the quality is the same.


Service governs while the price equals.

T&D MACHINERY promise to offer perfect after-sale service!





Company Information

DF3-5000 semi automatic wine bottle filling machine

DF3-5000 semi automatic wine bottle filling machine

 1. Our company was started in 1992, we can offer the most professional packing schemes to guests all over the globe.

 2. We cherish every "contact supplier"click and bend ourselves to quick response to guests all over the globe.



 3. We  adhere to the philosophy of quality win and innovation makes success.



 4. "One-stop" service system: inquiry, details discussing, order, payment, testing machine,packing, delivery, receiving, after-sale services.

FAQ

Q: Are you a factory or a trading company?

A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.



Q: Can you send me the video to show how the machine works?

A: Certainly, we have made video of every machine and uploaded them to Youtube.



Q: How can I know your machine works well?

A: Before delivery, we shall test the machine working condition for you.



Q: How can I know your machine is designed for my product?

A: You can send us samples of your product and we test it on machine.



Q: How can I pay my order?

A: We accept T/T, Western Union paying methods. For those orders less than 500USD, we accept PayPal to pay.



Q: Do you have a CE certificate?

A: For every model of machine, it has a CE certificate.
