Home > Packaging & Printing > Packing Machinery > Filling Machine > F3-5000 Semi Automatic Mineral Water Bottle Filling Machines

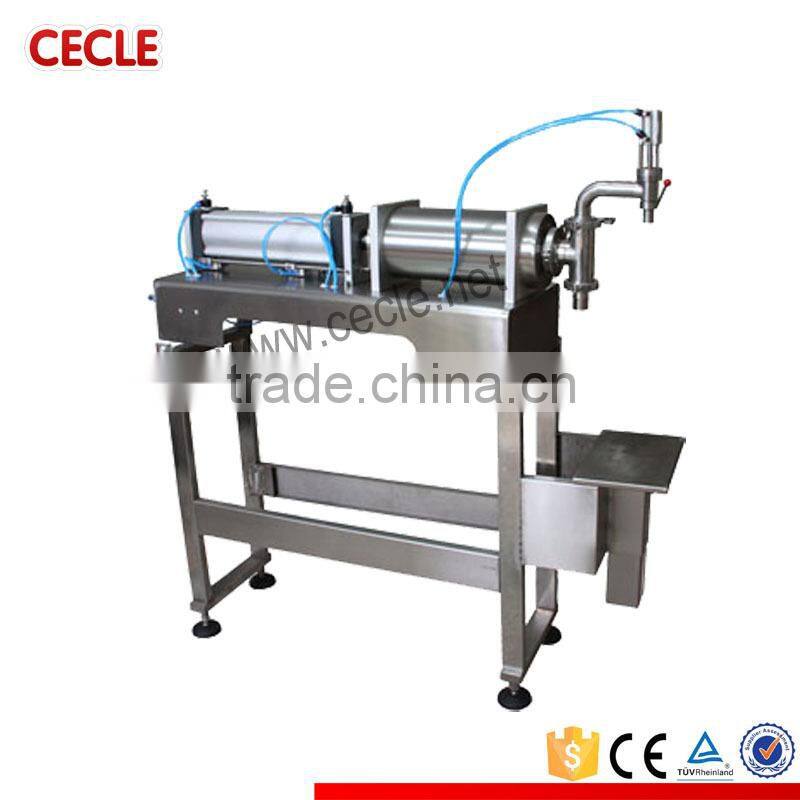

F3-5000 Semi Automatic Mineral Water Bottle Filling Machines

US$ 600 - 3,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Application:

Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical

Packaging Type:

Bags, Barrel, Bottles, Cans, Pouch, Stand-up Pouch

Contact Supplier Request Quote Chat Now

Wenzhou T&D Packaging Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical

Packaging Type Bags, Barrel, Bottles, Cans, Pouch, Stand-up Pouch

Packaging Material Glass, Plastic

Automatic Grade Semi-Automatic

Driven Type Pneumatic

Voltage 220v/50Hz or 110v/60Hz(Optional)

Power 0kw

Place of Origin Zhejiang, China

Brand Name T&D

Model Number F3-5000

Dimension(L*W*H) 115*66*110cm

Weight 50kg

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

semi automatic used mineral water bottle filling machines

F3-5000

Product Description

Features

Adopt Taiwan Airtac pneumatic components, full pneumatic drive does not need electrical power, simple operation, high filling precision;
Use 304 stainless steel construction of material contact parts, optional 304 or 316 stainless steel;
Stainless steel valve system design;
Can be operated by foot pedal or by automatic timer, could transfer between semi-automatic and automatic;
Filling volume, filling speed can be adjustable, bottom close positive shutoff nozzles ensure drip free operations;
Extremely easy to chean and maintain;
Quick release nozzle and feed pipe;
Small footprint for simple bench mounting;
Optional type 10-150ml 20-300ml 50-600ml 200-1200ml 500-2600ml 1000-5000ml;
Filling capita single head, two head;
Conform to GMP;

Application:

They are most commonly applicable for pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticides and other industrials.
Typical application: Use for filling liquidity is good material, such as mineral water, cooking oils, juice, detergent, sauce, liquidity cream, good liquidity honey, shampoos etc.
Suitable for various packing such as bottle ,jar, can, cup, bag, barrels,etc.

Note:

1, we can customize the special size according to customer's demands.

2, The machine disposition may make the choice.

Parameters:

Model	F3-150	F3-300	F3-600	F3-1200	F3-2600	F3-5000
Filling range	10-150ml	20-300ml	50-600ml	200-1200ml	500-2600ml	1000-5000ml
Air pressure range	0.4~0.6mpa
Filling speed	25-60pcs/min
Filling precision	1%
Dimension	11566110cm/11566110cm
Weight	50kg-80kg

Details

Samples

Company show

Packaging & Shipping

All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.

All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.

Packaging details:	Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety;
Shipping methods:	1. Shipping by sea(recommend big product or a lot of goods of the order)
	2. By air
	3. By express: TNT, EMS, DHL, Fedex, UPS etc

Our Services

We are professional manufactory, produce in hot stamping machine, heat transfer machine, filling machine, packaging machine, etc. And we produces many types of this machine. We can provide OME/ODM service, we base our business on offering products and services that people want and need, as well as continuing to develop an innovative approach to marketing.

Quality guarantee:

1. Each machine is manufactured by our professional staff production and manufacturing;

2. Production process through strict supervision and review, use a lot of the high parts at home and abroad, to ensure good quality;

3. Use a lot of the food grade of 304 stainless steel to ensure food safety, can choose the material contact parts use 304 stainless steel or whole machine use;

4. The warranty time is one year. Under warranty, if is according to the introduction of the description of the use of case, any damage to the product, we will provide free maintenance service or free replacement, but need customer pay for the freight from China to local place. If you need our engineers to help, will be paid by customer of travel back and forth.

5. Outside the warranty period, we continue to provide lifetime maintenance services.

FAQ

1) Do you have manual or operation video for us to know more about the machine?

Answer: Yes, we will send the video link of the operating the machine to the customer, we have put all of the video on youtube website, convenience of our customers to see. After customers to buy the machine, we will configuration instructions in English to customer, together with the machine packaging.

2) If the machine some spare parts damaged, how to solve the problem?

Answer: Under warranty, first of all please send pictures or shoot video tell us machine damaged parts, after the two sides confirmed, we can send the spare parts of the machine to you for free, the freight shall be the responsibility of the buyer, or send to you with next order from us.

Any other question please feel free to contact, we will try to our best to help you.
