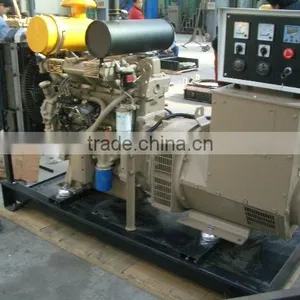

Help Center30-120kw Diesel Generator for Marine Engine
Related Products
-
Diesel Slurry Pump With Deutz/ Diesel EngineNegotiableMOQ: 1 Set -
Multistage Centrifugal Diesel Water Pump for Fire FightingUS$ 500 - 500MOQ: 1 Set
-
Diesel Engine Hydraulic Submersible Pump SetUS$ 1,000 - 1,000MOQ: 1 Set
-
Weichai-MAN Series Marine Diesel Engine 9L32/40, 4500KW Marine EngineUS$ 1,150,000 - 1,650,000MOQ: 1 Set
-
Fada Marine Gearbox 300 D300 for BoatUS$ 3,000 - 5,000MOQ: 1 Set
Specifications
1) Energy saved, compact structure2)Stamford/Marathon generator
3)global warranty
4)quick delivery
Specification of marine diesel generator
Brief Introduction: Deutz D226B series
1) Prime output: 30-200KVA
2) Max output: 33-220KVA
U-POWER Deutz D226B Series generating set matched D226B series engines made by Sino-Germany Venture—Weichai Power Co..LTD.The alternators are world famous brands, Stamford,Marathon,Leory Somer or China alternators.There are optional equipments as listed bottom..
Selected Program:
1) Prime output: 120KW/150KVA
Diesel Engine:
1) Engine model: TBD226B-6D
Cylinder Nos.: 6
Bore/stroke: 105/120mm
2) Cooling method: closed Water-cooled
3) Start method: Electrical
4) Speed governing: Mechanical/Electronic(Optional)
5) Intake method: Turbocharged intercooled
Alternator:
1) Alternator model: Stamford / Marathon/Landian/Qianghui
2) 400 / 230V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires
3) Frequency: <3.0%
4) Frequency at stable state: <1.0%
5) Frequency deviation at instantaneous state: ≤+10%
6) Frequency return time: ≤3s
7) Voltage deviation at stable state: ≤±1%
8) Voltage deviation at instantaneous state: ≤+20%
9) Voltage return time: ≤4s
10) Voltage modulation: ≤0.3%
Control system(Optional):
1) Automatic alarm system: acousto-optics test and alarm for start default, over watertemperature, oil over temperature, over speed, over oil pressure and so on.
2) Operation display:
i) Unit voltage, tri-phase load current and frequency
ii) Water temperature, oil pressure
iii) Fuel level, fuel temperature
iv) Audible and visual alarm lamps and buzzers
Standard supply:
1) Diesel engine standard supply
2) Alternator
3) Steel mounting base
4) Flange connector
5) Air/fuel/oil filter
6) On-board control panel
7) Shock absorber set
Optional Components:
Engine protection module,parallel equipment,common base oil tank,electric governor,automatic start,automatic transfer switch(ATS),remote- control equipment,sound-proof / weather-proof canopy,trailer type.
