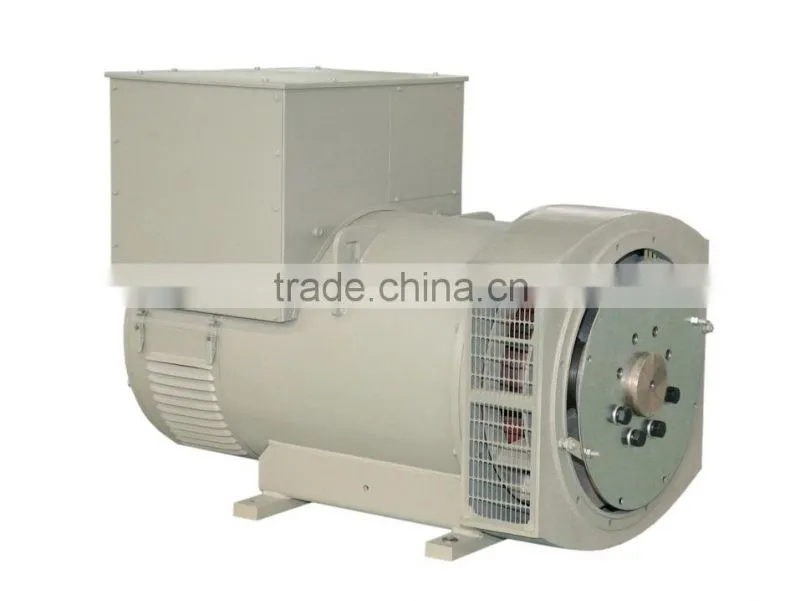

100% Copper Wire Three Phase 50kW AC Alternator

100% Copper Wire Three Phase 50kW AC Alternator thumbnail-1
100% Copper Wire Three Phase 50kW AC Alternator photo-1
US$ 1,400 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Alternator Assembly
Place of Origin:
Shanghai, China
Brand Name:
Qianghui
Contact Supplier Request Quote Chat Now
Weifang U-Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Alternator Assembly
Place of Origin Shanghai, China
Brand Name Qianghui
Model Number H225
Warranty 1 Years

Alternator Features:

-          Self-excited, IP23, Insulation Class H Alternator

-          Any permanent magnetic generators, providing invariable excitation on all occations

-          Easy to be connected with power network or other generators. Standard 2/3 pitch windings check excessive midline current

-          Balanced rotor with single or two sealed ball bearings

-          Convenient installation and maintenance with easy access to terminals, rotating diodes and coupling bolt

-          Wide range of Flange adaptor and single bearing coupling disc

-          3 phase 4 wire type, Star connection

-          50HZ, 230V, 1500RPM as standard, also 60HZ can be made as customers’ requirement

-          Certificate: CE/ISO9001



TFW2 brushless Series Alternator data for your reference:



Radio interference

Brushless apparatus and quality AVR ensure little radio interference in transmission. RFI noise filter is also available.



OPTION

1.  Adapters and drive disks

2.   Single phase

3.   Remote voltage adjust

4.   IP23 enclosure

5.    Space heaters

6.    Thermistors



Alternator Specification:

3-PH, 50HZ@1500RPM, 400/230V(Also can be made according to customers’ special requirements)

Technical Data

Alternator Model

H225

Power

50kW

Exciter type

Brushless, Self-excited

Power factor

0.8

Frequency

50/60Hz

Speed

1500/1800Rpm

Characters

Double bearing, 4poles

Voltage adjust range

≥5%

Voltage regulation NL-FL

≤±0.5%

THF/TIF

THF<2%, TIF<50

Insulation Grade

H

Protection Grade

IP23



Model  Output Voltage (V) Current (A) Power Factor Speed (rpm) Freq. (Hz)
KW
H160 8 400/230 14.4 0.8 1500 50
10 18
H180 12 21.6
15 27
20 36
H200 24 43.2
30 54
H225 40 72
50 90
75 135
90 162
H250 120 216
150 270
180 324
200 360



Reference picture



100% Copper Wire Three Phase 50kW AC Alternator

100% Copper Wire Three Phase 50kW AC Alternator

100% Copper Wire Three Phase 50kW AC Alternator
