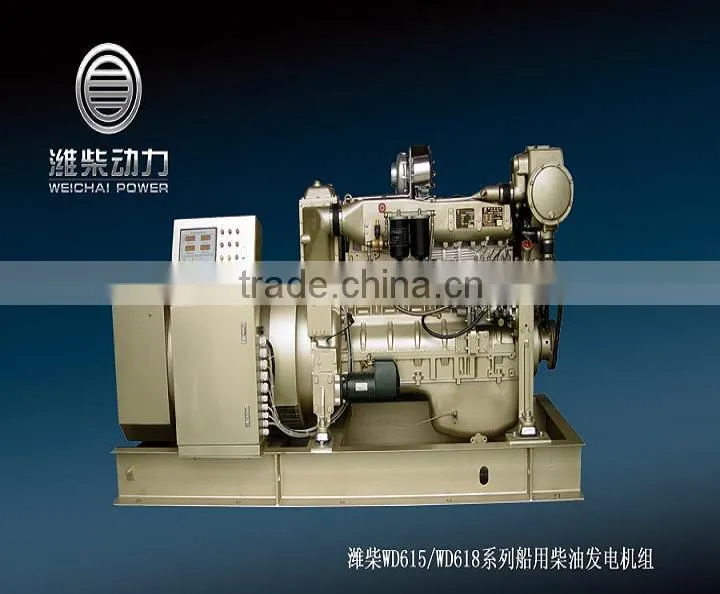

200kw CCFJ200J-WI Marine Diesel Generator With CE

Name: 200kw CCFJ200J-WI Marine Diesel Generator With CE
Brand: Weichai
SKU: 124785455
Availability: InStock

US$ 4,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Usage:

Other, Boat, boat generating

Fuel:

Diesel

Weifang U-Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Usage Other, Boat, boat generating

Fuel Diesel

Stroke 4 Stroke

Cylinder Other, 6 Cylinder

Cold Style Other, forced dual-circulation water cooling

Start Electric Start

Place of Origin Shandong, China

Brand Name Weichai

Model Number CCFJ200J-WI

Dimension(L*W*H) 3000*1050*2030

Weight 2390 kg

Certification ISO/CCS/ZY/BV

Warranty 1 year, 1year/1500 hours

After-sales Service Provided Overseas service center available

Specifications

1)marine generating sets output range: 64-200kW
2)marine generating sets with diesel engine: WD615/618
certificate: CCS,ZY,BV

WD615/618 Series Marine Diesel Generator

Genet Model	Continuous output(kW)	Rated Voltagey(V)	Rated currency(A)	Rated loading fuel consump(kg/h)	Weichai WD615/WD618 Series Diesel Engine				Alternator Manufacturer
Genet Model	Continuous output(kW)	Rated Voltagey(V)	Rated currency(A)	Rated loading fuel consump(kg/h)	Engine model	Max output(kW)	Rated speed(r/min)	Cooling method	Alternator Manufacturer
CCFJ100J-WI	100	400	181	20	WD615.61CD	129	1500	Dual-circulation water-cool	Marathon
CCFJ120J-WI	120	400	217	24	WD615.67CD	152	1500	Dual-circulation water-cool	Marathon
CCFJ150J-WI	150	400	271	30	WD615.68CD	187	1500	Dual-circulation water-cool	Marathon
CCFJ180J-WI	180	400	325	36	WD615.46CD	231	1500	Dual-circulation water-cool	Marathon
CCFJ200J-WI	200	400	361	40	WD61842CD	259	1500	Dual-circulation water-cool	Marathon
CCFJ100J-WU	100	400	181	20	WD615.61CD	129	1500	Dual-circulation water-cool	Stamford
CCFJ120J-WU	120	400	217	24	WD615.67CD	152	1500	Dual-circulation water-cool	Stamford
CCFJ150J-WU	150	400	271	30	WD615.68CD	187	1500	Dual-circulation water-cool	Stamford
CCFJ180J-WU	180	400	325	36	WD615.46CD	231	1500	Dual-circulation water-cool	Stamford
CCFJ200J-WU	200	400	361	40	WD618.42CD	259	1500	Dual-circulation water-cool	Stamford
CCFJ100J-WE	100	400	180	20	WD615.61CD	129	1500	Dual-circulation water-cool	anzhou
CCFJ120J-WE	120	400	217	24	WD615.67CD	152	1500	Dual-circulation water-cool	Lanzhou
CCFJ150J-WE	150	400	271	30	WD615.68CD	188	1500	Dual-circulation water-cool	Lanzhou
CCFJ180J-WE	180	400	325	36	WD615.46CD	231	1500	Dual-circulation water-cool	Lanzhou
CCFJ200J-WE	200	400	361	40	WD618.42CD	259	1500	Dual-circulation water-cool	Lanzhou

Model	Weichai WD615 series
Type	In line, four-stroke, water-cooled, dry cylinder liner, direct injection
Cylinder numbers	6
Intake method	Turbocharged, or turbocharged intercooled
Bore/stroke(mm)	126/130
Displacement(L)	9.726
Min fuel consumption(g/kW.h)	≤197
Min oil consumption(g/kW.h)	≤0.5
Idle speed(r/min)	600±50
Noise dB(A)	≤108
Stable governing rate	≤5%
Firing sequence(from free end)	1-5-3-6-2-4
Starting method	Electric starting
Cooling method	Forced dual-circulation water cooling
Smoke Bb	≤1.0
Lubricating method	Forced Lubricating
