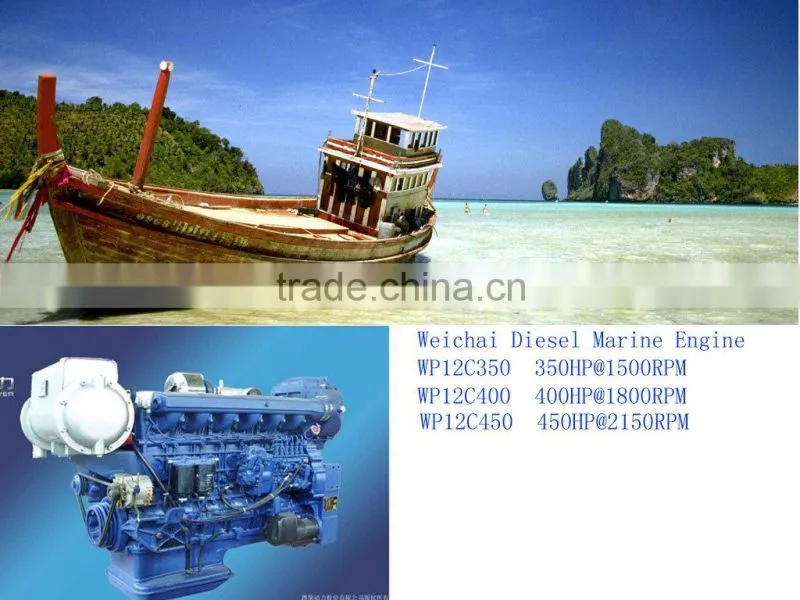

Marine Diesel Engine With Gearbox With CE Made in Weifang City
US$ 80,000 - 115,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Engine Capacity:
> 6L
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Marine Diesel Engine With Gearbox With CE Made in Weifang CityUS$ 80,000 - 115,000MOQ: 1 Set -
HOT SALE ! Weichai 1100HP Marine Diesel Engine With CEUS$ 1,000 - 10,000MOQ: 1 Set
-
Weichai WD615 Marine Diesel Engine With CCS and CEUS$ 2,000 - 30,000MOQ: 1 Set
-
HOT SELLING ! WEICHAI WD615 Series Marine Diesel Engine With CEUS$ 6,000 - 10,000MOQ: 1 Set
-
Weichai Marine Diesel Engine With Gearbox With CEUS$ 80,000 - 115,000MOQ: 1 Set
Condition
New
Engine
4 Stroke
Fuel Type
Diesel
Cylinders
6
Engine Position
Inboard
Dimensions (L x W x H) (mm)
3226x1527x2100
Specifications
marine diesel engine with gearbox1)6/8/12 cylinders,200*270mm
2)turbocharged intercooled
3)direction injection
Diesel engine 4 Stroke Continuous power 450-1200KW

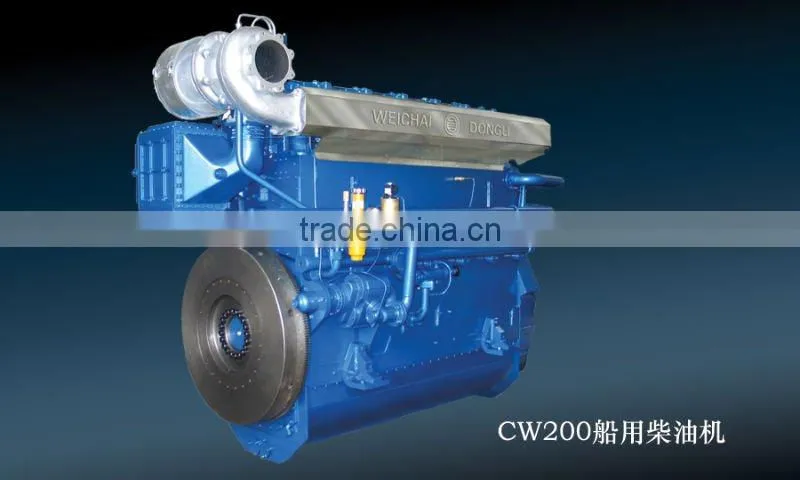

Weichai CW200ZC/XCW200ZC series marine diesel engine is developed and manufactured based on researching techniques of medium speed engine both at home and abroad. It is characterized by rational construction, advanced performance index, reliable running operation and easy maintenance, etc. Its emission meets the requirements of MARPOL 73/78 of IMO (International Marine Origination).
| Engine Model | XCW8200ZC |
| Rated output | 926KW/1260HP |
| Rated speed(r/min) | 1000 |
| Type | Water cooled, inline, 4-stroke, dry cylinder liner, direct injection, turbocharged, turbocharged inter-cooled |
| Num of cylinders | 8 |
| Bore/Stroke(mm) | 200/270 |
| Fuel consumption(g/kW.h) | ≤197 |
| Stable governing rate(%) | ≤5(mechanical) |
| Starting method | Gas motor starting |
| cooling method | Water cooled |
| Inlet method | turbocharged inter-cooled |
| Lubrication method | Pressure lubrication |
| Idle speed(r/min) | 400±50 |
| Smoke(Rb) | ≤1.0 |
| Displacement(L) | 67.856 |
| (dB(A)) Noise | ≤110 |
| Weight(Kg) | 7800 |
| Dimension(mm) | 3226x1527x2100 |
| oil sump capacity(L) | 185 |
| Flywheel turning ( facing flywheel ) | clockwise |
| Emission | Euro II |
| Gearbox Model | WHG1200 |
| Ratio | 3:1 |
