Weichai Steyr WD618 Marine Diesel Engine Made in Weifang City

Weichai Steyr WD618 Marine Diesel Engine Made in Weifang City thumbnail-1
Weichai Steyr WD618 Marine Diesel Engine Made in Weifang City photo-1
US$ 2,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Engine Capacity:
> 6L
Contact Supplier Request Quote Chat Now
Weifang U-Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Engine 4 Stroke
Fuel Type Diesel
Cylinders 6
Engine Position Inboard
Dimensions (L x W x H) (mm) 1620*1180*774

Specifications

1.Weichai Steyr engine
2.WD618 series diesel engine
3.marine engine/boat engine
4.180-275kW
5.1500-2150r/min



             WEICHAI WD618 diesel  engine

Product Description







Weichai Steyr series diesel engine was introduced from Austria in 1984 with the world's advanced level of high-speed diesel engine

WD618 series marine diesel engine is based on the proven technology of Steyr series diesel engine, the newly developed marine diesel engines with a larger displacement and torque reserves

Weichai Steyr series diesel engine annual output of more than 250,000,

WD618 series marine engines are one of the large displacement speed marine diesel engines on the market, the most stable and mature

The main technical parameters



Type In-line, four stroke
injection		 Total displacement(L) 11.596
number of cylinders 6 Compressure ratio 17:1
bore(mm) 126 Ingnition mode 1-5-3-6-2-4
stroke(mm) 155 The smoke(FSN) ≤1.0
intake mode turbocharged
and intercooled 		Noise(dB(A))
≤108
rated power(Kw/PS) 180/245-294/400 Overhaul period 10000
rated speed(r/min) 1500-2150 net weight(kg)  1100
Fuel consumption(g/kW.h) ≤198 Usage Marine engines and
fixed power
Oil consumption(g/kW.h) ≤0.5



Replaced with new camshafts, cylinder head, optimizing the combustion process; replaced with new injectors, increase injection pressure - reduce fuel consumption, reduce smoke, more energy efficient, environmentally friendly

Replacing diesel engine pistons, piston rings, nozzles, using the new liner - to reduce diesel oil consumption.







 Weichai Steyr WD618 marine diesel engine made in weifang city

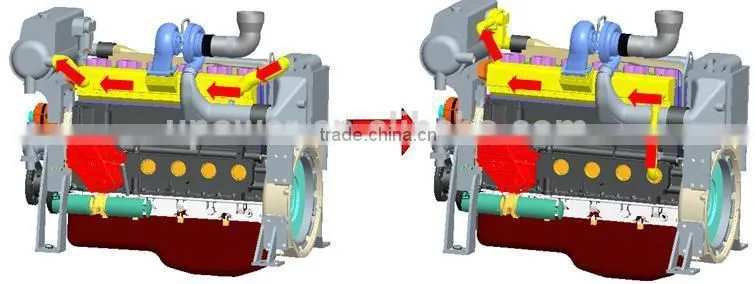

Improved front exhaust pipe from which the water cooler, outer loop water cooling
The improved water from the body, the circulating water cooling
Replace the thermostat so that the temperature is maintained at an optimum diesel state, improve diesel engine life.



Weichai Steyr WD618 marine diesel engine made in weifang city

                             Before                                                                                                       After



 Weichai Steyr WD618 marine diesel engine made in weifang city









   Weichai Steyr WD618 marine diesel engine made in weifang city
