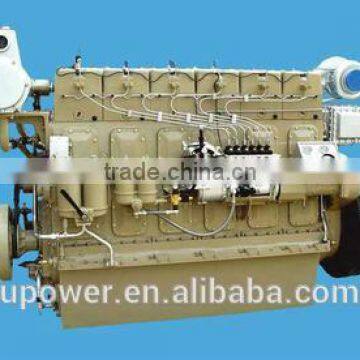

HOT SALE ! Weichai R6160 Marine Diesel Engine for Inboard

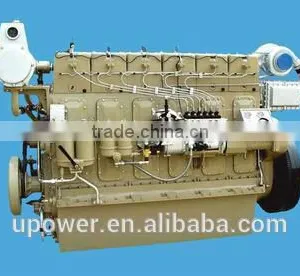

HOT SALE ! Weichai R6160 Marine Diesel Engine for Inboard thumbnail-1
HOT SALE ! Weichai R6160 Marine Diesel Engine for Inboard photo-1
US$ 3,000 - 45,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, Boat, Boat Engine
Fuel:
Diesel
Contact Supplier Request Quote Chat Now
Weifang U-Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other, Boat, Boat Engine
Fuel Diesel
Stroke 4 Stroke
Cylinder Multi-cylinder
Cold Style Other, Water-cooled
Start Electric Start
Place of Origin Shandong, China
Brand Name Weichai
Model Number Weichai R6160
Dimension(L*W*H) 1620*774*1180
Weight 3100/3800kg
Certification ISO/CE/CCS/ZY/BV
Warranty 1 year, 12months
After-sales Service Provided Overseas service center available

Specifications

Weichai R6160 marine diesel engine
1)6/8/12 cylinders,200*270mm
2)turbocharged intercooled
3)low fuel consumption



Model list for R6160 series marine diesel engine



6160 Sereis Marine Diesel Engine
Type Unit 6160A-1 6160A-121 6160A-12 6160A-123 6160A-125 6160A-13 6160A-13G 6160A-17 X6160ZC X6160ZC2 X6160ZC5 X6160ZC6
Cylinder-number - 6 6 6 6 6 6 6 6 6 6 6 6
Bore/stroke mm 160/225 160/225 160/225 160/225 160/225 160/225 160/225 160/225 160/225 160/225 160/225 160/225
Displacement L 27.14 27.14 27.14 27.14 27.14 27.14 27.14 27.14 27.14 27.14 27.14 27.14
Rated output kW 90 110 124 136 147 164 184 202 220 255 220 255
Rated speed r/min 750 850 750 850 850 1000 1000 1000 1000 1000 1000 1000
Starting method - Compressed air starting preumatic starting
Overhaul period h 12000 12000 12000 12000 12000 12000 12000 12000 12000 12000 12000 12000
Net weight kg 2400 2400 2450 2450 2450 2450 2450 2500 2500 2650 2650 2650
Overall dimension
(LxWxH)		 mm 2291×905×1345 2367×905×1425 2581×905
×1424		 2595×905
×1454		 2544×923
×1458		 2602×967×1461
Suit for application offshore fishing, main engine of inland river ships, auxiliary engine of large ships
Note: The marine engine is divided into left and right engine, making it convenient to operate in the same engine room. While facint the flywheel, the flywheel of the right rotates counterclockwise and the left engines rotates clockwise.The right engine is generally used when single engine is applied.



Specifications for R6160 series marine diesel engine



Type In line, direct injection, two-circulation water cooled
Stroke Number 4
Cylinder Number 6
Bore(mm) 160
Stroke(mm) 225
Displacement(L) 27.14
Compression ratio 14.5:1
Min. steady working speed(r/min) 400
Min. steady idling speed(r/min) 450
Fuel consumption(g/kW.h) ≤200
Oil consumption(g/kW.h) ≤1.0
Smoke(Bosch) ≤1.5
 Noise(dB(A)) ≤115
Emission EIAPP
Vibration(mm/s) ≤28
Crankshaft rotating direction(face to flywheel) Counter clockwise(right engine); clockwise( left engine)
Firing order 1-5-3-6-2-4(right engine); 1-4-2-6-3-5(left engine)
Starting method Electric/ pneumatic motor
Oil sump capacity(L) 120
Net weight(kg) 3350(
Overhaul life(h) 12000
Suit for Application Marine main engine, auxiliary engine, generating

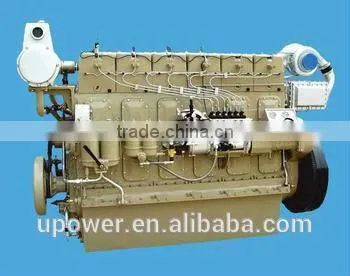

 Product show



HOT SALE ! Weichai R6160 Marine Diesel Engine for inboard
