Specifications
Diesel Engine Generator1)3/4/6 cylinders,105*120
2)Mechanical/Electrical
3)water cooling
4)4-stroke

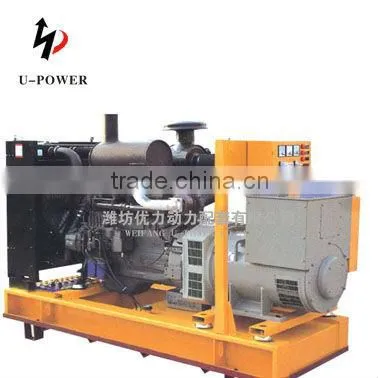

Diesel Engine Gengerator powered by Deutz D226B series engine,with low fuel consumption and good performance.
Land use
Brief Introduction:
1) Prime output: 20-120KW/25-150KVA
Max output:22-132KW/27.5-165KVA
2) Engine model: D226B-3D,TD226B-3D,TD226B-4D,TD226B-6D,TBD226B-6D
Bore/stroke: 105/120mm
3) Alternator model: Stamford / Marathon/Landian
4) Cooling method: closed Water-cooled
5) Start method: Electrical
6) Speed governing method: Electronic
7) Intake method: Natural air,Turbocharged,Turbocharged-intercooled
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires
9) Frequency: <3%
10) Frequency at stable state: <1.0%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤±1%
14) Voltage deviation at instantaneous state: ≤+20%
15) Voltage return time: ≤4s
16) Voltage modulation: ≤0.3%
17) Control system:
a) Automatic alarm system: acousto-optics test and alarm for start default,water over temperature, oil over temperature, over speed, oil over pressure and so on.
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
18) Standard supply:
a) Diesel engine standard supply,
b) Alternator
c) Steel structure
d) Flange connector
e) Air cleaner, fuel cleaner, oil cleaner
f) On-board control panel
g) Set shock absorber
19) Optional Components:Engine protection module,parallel equipment,common base oil tank,electric governor,automatic start,automatic transfer switch(ATS),remote- control equipment,sound-proof / weather-proof canopy,trailer type.
